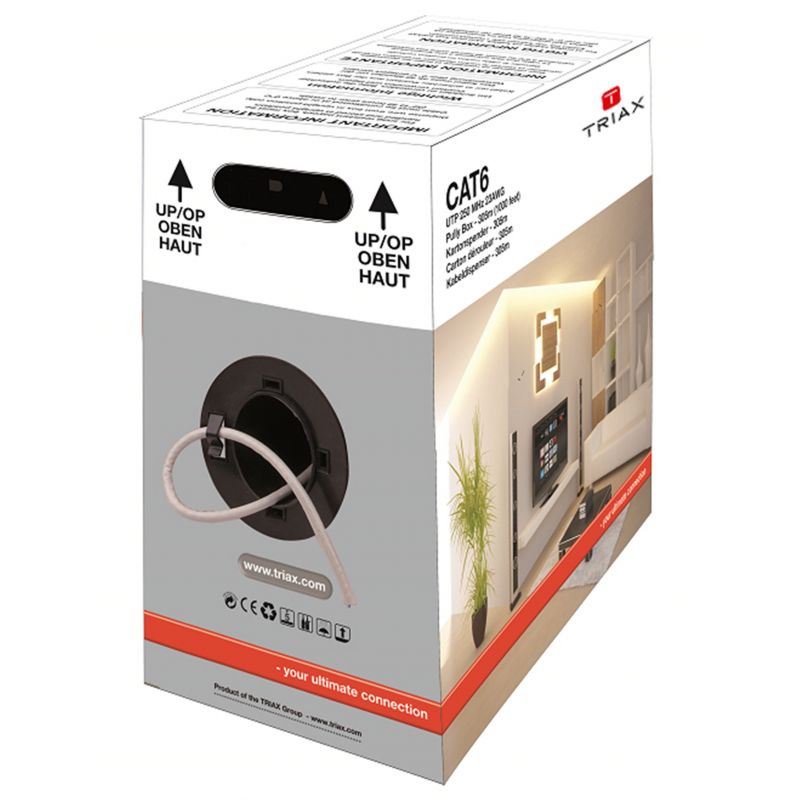

Cabo Cat6 LSZH 23AWG, 250MHz, U/UTP, Branco 305m
Cabo CAT 6, LSZH branco, 23 AWG UTP - caixa de pene de 305m. Cabos de rede sem blindagem sem conectores. O cabo padrão Cat 6 pode lidar com largura de banda de até 250 MHz (1000 BASE-T Ethernet) e velocidade de 1000 mbps (curto espaço de até 10 Gbit).
272,25 €
Com IVA
Referência
triax-155006
Marca
Triax
Cabo Cat6 LSZH 23AWG, 250MHz, U/UTP, Branco 305m
272,25 €
Cabo CAT 6, LSZH branco, 23 AWG UTP - caixa de pene de 305m.
Cabos de rede sem blindagem sem conectores.
O cabo padrão Cat 6 pode lidar com largura de banda de até 250 MHz (1000 BASE-T Ethernet) e velocidade de 1000 mbps (curto espaço de até 10 Gbit).
Especificações
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661550065 |
| CONSTRUCTION | |
| Inner conductor - material | Cu |
| Inner conductor - dimension | 0.53 ±0.005 mm |
| Dielectric - material | Solid PE |
| Dielectric - dimension | 1.00 ±0.05 mm |
| Flat filler - material | PE Spline |
| Jacket - material | LSZH |
| Jacket – dimension | 6.0 ± 0.50 mm |
| Jacket - thickness | 0.5 mm |
| Colour code - Pair 1 | Blue / White-Blue |
| Colour code - Pair 2 | Orange / White-Orange |
| Colour code - Pair 3 | Green / White-Green |
| Colour code - Pair 4 | Brown / White-Brown |
| NEXT | |
| Next @ 1 MHz | 74.30 dB |
| Next @ 4 MHz | 65.30 dB |
| Next @ 10 MHz | 59.30 dB |
| Next @ 16 MHz | 56.20 dB |
| Next @ 25 MHz | 53.30 dB |
| Next @ 31.25 MHz | 51.90 dB |
| Next @ 100 MHz | 44.30 dB |
| Next @ 200 MHz | 39.80 dB |
| Next @ 250 MHz | 38.30 dB |
| CHARACTERISTICS | |
| Type | CAT 6 LSZH |
| LOSS | |
| Attenuation (20°C/100mtr) @ 1 MHz | 2.00 dB |
| Attenuation (20°C/100mtr) @ 4 MHz | 3.80 dB |
| Attenuation (20°C/100mtr) @ 10 MHz | 6.00 dB |
| Attenuation (20°C/100mtr) @ 16 MHz | 7.60 dB |
| Attenuation (20°C/100mtr) @ 25 MHz | 9.50 dB |
| Attenuation (20°C/100mtr) @ 31.25 MHz | 10.70 dB |
| Attenuation (20°C/100mtr) @ 100 MHz | 19.80 dB |
| Attenuation (20°C/100mtr) @ 200 MHz | 29.00 dB |
| Attenuation (20°C/100mtr) @ 250 MHz | 32.80 dB |
| RETURN LOSS | |
| Return loss @ 1 MHz | 20.00 dB |
| Return loss @ 4 MHz | 23.00 dB |
| Return loss @ 10 MHz | 25.00 dB |
| Return loss @ 16 MHz | 25.00 dB |
| Return loss @ 25 MHz | 24.30 dB |
| Return loss @ 31.25 MHz | 23.60 dB |
| Return loss @ 100 MHz | 20.10 dB |
| Return loss @ 200 MHz | 18.00 dB |
| Return loss @ 250 MHz | 17.30 dB |
| ELECTRICAL | |
| Characteristic impedance (1-100 MHz) | 100 ±15 Ω |
| Characteristic impedance (100-250 MHz) | 100 ±20 Ω |
| Conductor DC resistance @ 20°C | < 95 Ohm/km |
| Mutual capacity @ 1kHz | < 1500 pF/m |
| OPERATIONAL | |
| Application | Indoor |
| Fire Class | Dca |
| Fire SubClass | s2,d2,a1 |
| DoP number | TR0084 |
| Notified Body | 2661 |
| MECHANICAL | |
| Cable length | 305 m |
| Minimum bending radius - single/repeated | 8xD mm |
| Colour | White |
| Packaging Height | 0.400 m |
| Packaging Width | 0.210 m |
| Packaging Depth | 0.405 m |
| Packaging Volume | 0.034 m3 |
| Net Weight | 11.500 kg |
| Total Weight | 11.500 kg |
