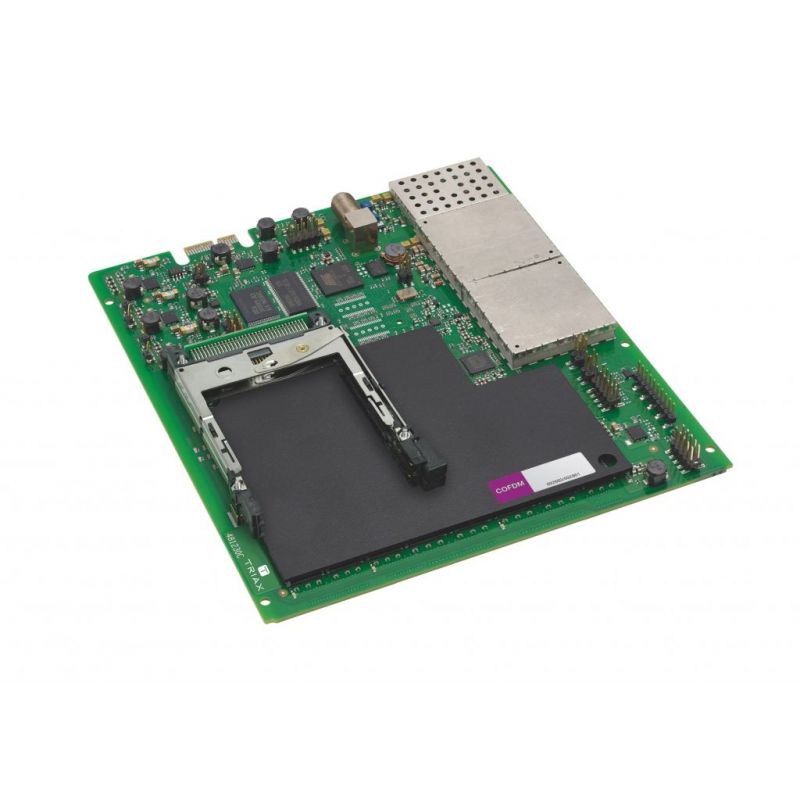

Triax TDH 844 Módulo Backend 4 saídas COFDM adjacentes 50...858 MHz (2 slots CI)

Módulos back-end COFDM Quad - DVB-T com 2 CI. O módulo de back-end Quad TDH 800 é um módulo de saída que permite criar até 4 muxes com serviços / programas de TV disponíveis no pool TDH 800. Os serviços são distribuídos em um fluxo de dados COFDM. Os módulos de saída COFDM são entregues com 2 CI (Common Interface).

2 997,67 €
Com IVA
Referência triax-692861
Marca Triax
Quantidade
Disponível em 4/5 dias

Free shipping
TDH 843 Módulo Backend 4 saídas COFDM adjacentes 50...858 MHz (2 slots CI) Triax

Triax TDH 844 Módulo Backend 4 saídas COFDM adjacentes 50...858 MHz (2 slots CI)

2 997,67 €

Quad modules COFDM backend - 2CI

Backend module COFDM Quad - DVB-T with 2 CI. The Quad TDH 800 backend module is an output module that allows you to create up to 4 muxes with TV services / programs that are available in the TDH 800 pool. The services are distributed in a COFDM data stream. The services can be combined so that the bandwidth of each output multiplexer is used optimally. The mux bandwidth monitoring function of the TDH 800 service tool allows you not to overload the bandwidth and not cause transmission problems. The output modules COFDM is delivered with 2 CI (Common Interface).

Características

  • Módulo de saída DVB-T Quad COFDM para programas FTA ou para decodificar conteúdos/serviços.
  • NIT e recheio.
  • Suporta NIT local e Golbal.
  • SDTactual e outros do fluxo de transporte.
  • Fácil de instalar
  • Todos os serviços são transferidos para o pool TDH 800.
  • Suporta decodificação através da CA (692851) - O módulo adiciona bits de preenchimento.
  • Combine seus muxes COFDM como você gosta.

Especificações

INFORMACIÓN DEL PEDIDO
Número EAN 5702666928616
CARACTERÍSTICAS
Señales de espurias > 60 dB
Portadora soportada 2K
Intervalo de guarda 1/32, 1/16, 1/8, 1/4
[Terrestre] - FEC rate 1/2, 2/3, 3/4, 5/6, 7/8
Output QAM Modes 16QAM, 64QAM, QPSK
Espectro de salida Normal
Ajuste nivel de salida +3 ... -17 dB
Nivel salida - sistema 90.0 ± 1.5 dBµV
MER ≥ 35.0 dB
RANGO DE FRECUENCIA
Rango frecuencia de salida 50.5 - 858 MHz
Channel Raster 7, 8, 8.5 MHz
Frequency Step 250 kHz
PÉRDIDA DE RETORNO
Pérdida de Retorno en Salida > 10 dB
DATOS ELÉCTRICOS
Impedancia 75 Ω
OPERACIONAL
Ranuras CI 2
DC Tensión de trabajo 12 ± 1 VDC
Consumo de tensión 1200 mA
Temperature Operating -10...+50 °C
Humedad - operativa 20...80 %
Temperatura - almacenaje -20...+70 °C
Humedad - almacenamiento 10...90 %
CONECTORES
Conector salida F-connector
Tipo de Conector F-hembra
MECÁNICO
Dimensions product HxDxW 17 x 162 x 182 mm
Cant. embalaje 1
Altura Embalaje 0,060 m
Anchura Embalaje 0,180 m
Profundidad Embalaje 0,270 m
Volumen Embalaje 0,003 m3
Peso Neto 0,290 kg
Peso Total 0,290 kg
