SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 201SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 10358 AND id_lang = 1 Lapara ATS automatic transfer switch
search

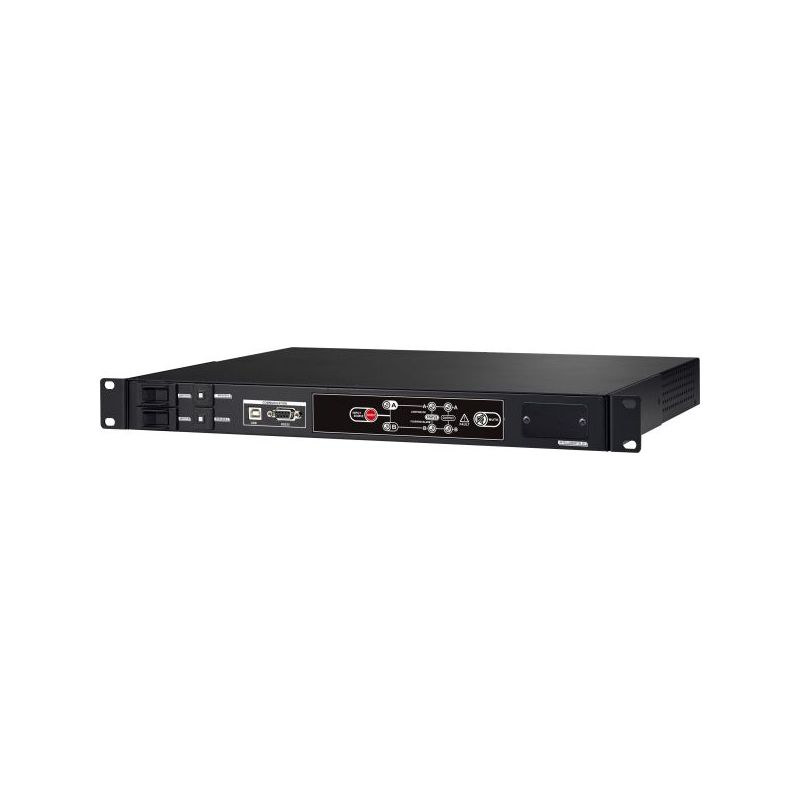

Lapara ATS automatic transfer switch

Automatic transfer switch, has two current inputs. In the event of a power failure of the main input, the switch automatically transfers the current from the secondary input, thus maintaining the power in the connected devices.

€395.00
Tax included
Reference LA-ATS
Brand Lapara
Quantity
Out-of-Stock

Free shipping

ATS switch for automatic current transfer in 19 "rack format, 2 independent current inputs can be connected. In the event of a power failure of the main input, the switch automatically transfers the power from the secondary input, thus maintaining the power supply without interruption on the devices The transfer time is almost instantaneous When the main input returns to power, the switch will re-power the devices through it.

Features

  • Input voltage: 230 V
  • Frequency: 50/60 Hz
  • Minimum input voltage in AC: 180 V
  • Maximum AC input voltage: 258 V
  • Dimensions: 330 x 483 x 44 mm
  • Weight: 8 Kg
  • Inputs: 2 x IEC-C20
  • Outputs: 8 x IEC-C13
  • USB communications port: Yes
  • RS-232 communications port: Yes
  • Transfer time: 9-12 ms

Front Controls and Indicators

  • Input switches A and B.
  • Input protector A (10A) and B (10A).
  • USB communications port (B-female).
  • RS232 communications port (DB9-female).
  • Primary input selection button.
  • Priority LED input A and B.
  • Input status LED A and B (OK and alarm).
  • Output status LED A and B.
  • Fault LED
  • Push button to silence alarm.
  • Socket for expansion of communication module.

Rear controls and indicators

  • Communications port of 6 terminals.
  • Output block 1: 4 x IEC60320-C13 (10A max).
  • Output block 2: 4 x IEC60320-C13 (10A max).
  • Output block 3: 1 x IEC60320-C19 (16A max).
  • Input A: 1 x IEC60320-C20 (16A max).
  • Input B: 1 x IEC60320-C20 (16A max).

Content

  • ATS in 19" rack format, with metal housing (size: 330 x 483 x 44 mm).
  • IEC60320-C19/C20 cable (1 unit).
  • IEC60320-C13/C14 cable (2 units).
  • Schuko-male cable to IEC60320-C19 (2 units).
  • USB cable (A/B male).
  • 19 "rack hardware.
  • ATS control software.

Downloads

data sheet

user manual
