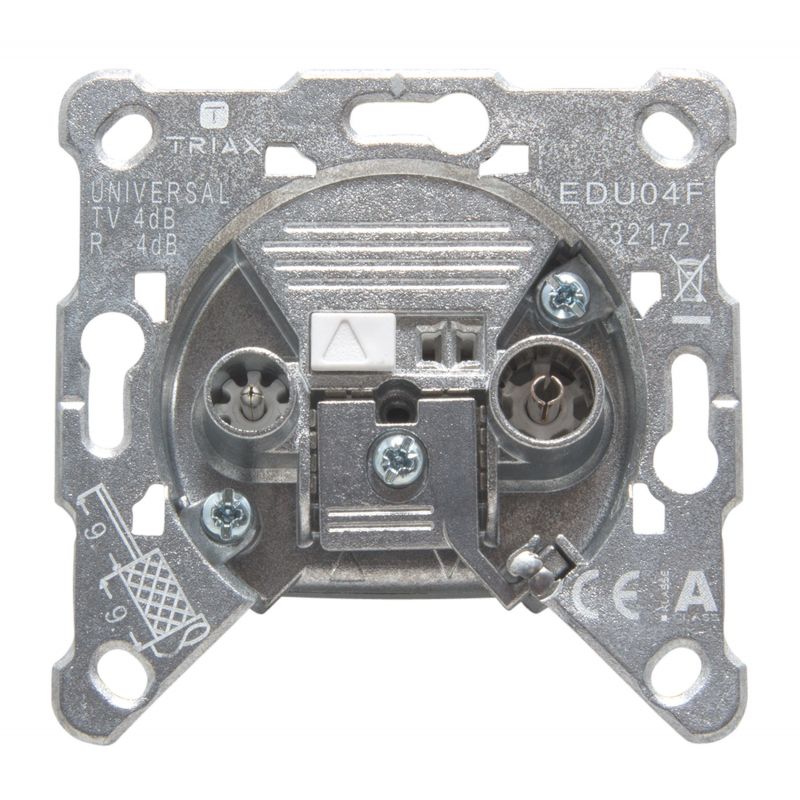

Final distributor 4dB Triax EDU (5 to 2400 MHz in both inputs)

Final separation between TV and SAT. Ideal for domestic distribution installations CATV and SAT-FI. Return channel. Current passage through. These sockets are used in the distribution of signals up to 2400 MHz.

€8.52
Tax included
Reference triax-306111
Brand Triax
Quantity
Available Now

Free shipping

Final distributor 4dB Triax EDU (5 to 2400 MHz in both inputs)

€8.52

Final separation between TV and SAT. Ideal for domestic distribution installations CATV and SAT-FI. Return channel. Current passage through. These sockets are used in the distribution of signals up to 2400 MHz.

2-hole universal socket with pass-through frequency ranges for frequencies between 5...2150MHz in 2 outlets, IEC male and IEC female, thus flexible and future proof.

Features

  • Suitable for CATV and SAT IF domestic distribution installations
  • 2 equal outlets (IEC male and IEC female) for various end devices
  • Suitable for return channel
  • Remote DC-feed via TV outlet (IEC male)

Specifications

ORDER INFORMATION
EAN Number 5702663061118
SHIELDING
Shielding @ 1000...2400 MHz ≥ 55.0 dB
Shielding @ 300-470 MHz ≥ 80.0 dB
Shielding @ 30-300 MHz ≥ 85.0 dB
Shielding @ 470-1000 MHz ≥ 75.0 dB
CHARACTERISTICS
Outlet Type Terminated
FREQUENCY
Frequency Range RF 5...2150 (2400) MHz
Frequency Range TV 5...2150 (2400) MHz
LOSS
Through Loss IN-FM 4.0 dB
Through Loss IN-RF 4.0 dB
Through Loss IN-TV 4.0 dB
ISOLATION
Isolation TV-FM 20.0 dB
RETURN LOSS
Return Loss FM 18.0...12.0 dB
Return Loss IN 10.0 dB
Return Loss TV 18.0...12.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Passthrough TV Yes (max. 24VDC / 0.5A)
Screening Efficiency EN50083-2 (Class A)
Operating temperature range -25...+55 °C
MTBF (mean time between failures) >1.000.000 hours
Temperature - shipping -40...+70 °C
Temperature - storage -25...+55 °C
CONNECTORS
Adaptable Cable Diameters - Inner Conductor 0.58...1.15 mm
Adaptable Cable Diameters - F-female 0.6...1.13 mm
Adaptable Cable Diameters- Jacket 4.5...7.2 mm
Adaptable Cable Diameters - Outer Conductor 3.7...5.8 mm
Connector IN-OUT Spring Clamp Termination
Connector RF IEC-female
Connector TV IEC-male
MECHANICAL
Main Material Zinc die-cast
Dimensions product (H x D x W) 70.6 x 70.6 x 21.9 mm
Packaging Depth 0,070 m
Packaging Height 0,040 m
Total Weight 0,106 kg
Packaging Width 0,070 m
Net Weight 0,096 kg
Packing QTY 10
Tara Weight 0,010 kg
Tensile Strength - Inner Conductor 2 (Ø) > 50 @ 1.13mm N/mm2
Tensile Strength - Inner Conductor 1 (Ø) > 25 @ 0.75mm N/mm2
