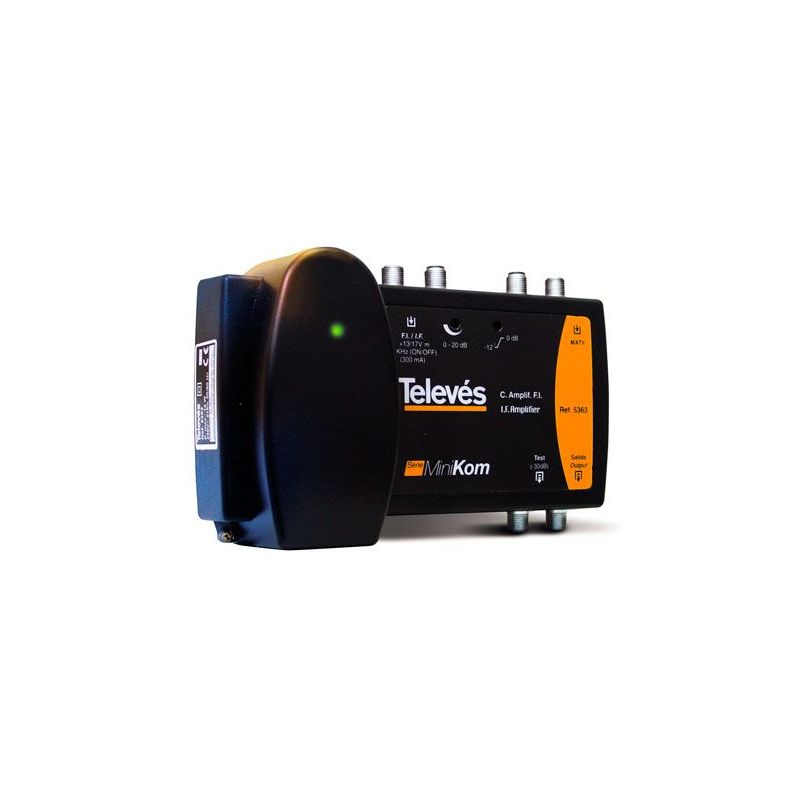

Central amplificadora 2 in IF / mixed MATV + 22 KHz switch (0.6 ±1 Vpp) Televes
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
€145.78
Tax included
Reference
televes-5363
Brand
Televes
Central amplificadora 2 in IF / mixed MATV + 22 KHz switch (0.6 ±1 Vpp) Televes
€145.78
MATV launch amplifiers, designed for small and medium size distribution networks. To be used as MATV headend. Featuring a Low/High gain switch guaranteeing a wide dynamic margin with low noise figure.
- Split-band amplification.
- 20 dB independent attenuators (PIN diode) for each band.
- Gain switch: high/low..
- Automatic DC power through inputs (selectable).
- Test output (-30 dB).
- Low power consumption.
| Reference | 5363 | ||||||
| Input | Band | MATV | SAT | ||||
| Output | MATV/SAT | ||||||
| Frequency range | MHz | 47-862 | 950-2150 | ||||
| Gain | dB | -1,5 | 35 (950MHz) 45 (2150MHz) |
||||
| Gain adjustment range | dB | - | 0-20 | ||||
| Input equalizer | - | 0-12 | |||||
| Output level | DIN45004B | dBμV | - | - | |||
| EN50083 | IMD3 | - | ≥124 | ||||
| IMD2 | - | - | |||||
| CTB,CSO,XMOD | |||||||
| Noise figure | dB | - | 9 | ||||
| Rejection UHF- IF SAT | dB | - | - | ||||
| Power on inputs | Vdc | - | 13/17 | ||||
| Max current through inputs | mA | - | 300 | ||||
| Max current available | mA | 300 | |||||
| Max through current Out -> In | mA | - | |||||
| 22KHz tone amplitude | Vpp | - | 0,6 | ||||
| AC Power consumption | W | 14 | |||||
