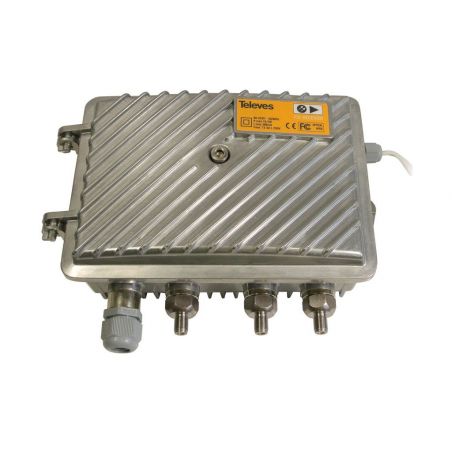

Cable operator oriented nodes and optical receivers, that feature optional remote powering and high power output signal (more than 110dBµV for two outputs). They incorporate attenuation, equalization and controllers to adapt the output signal to the of the coaxial network characteristics.

Highlights:

• Incorporate an OLC (Optical Level Control), to automatically regulate the parameters to obtain an even output level, regardless of the channel load.
• High output signal level, low consumption (16.5 W max) and improved C/N.
• Two remote-powered output signals.
• 116 dBµV output level for one signal and 112 dBµV for two signals.

Main Features:

• Ideal for RF Overlay, FTTB and FTTC applications.
• Insertable module for the return channel.
• Test output.
• Wide band optical reception.
