Televes RF/Optical Converter ODU32 F-N-FC/PC: DAB/UHF-SAT + Offset LNB + AC/DC Adapter
This kit allows converting the 4 universal SAT IF bands and the DTT terrestrial band into a single optical output.
€817.77
Tax included
Reference
televes-236801
Brand
Televes
Televes RF/Optical Converter ODU32 F-N-FC/PC: DAB/UHF-SAT + Offset LNB + AC/DC Adapter
€817.77
This kit allows converting the 4 universal SAT IF bands and the DTT terrestrial band into a single optical output.
- LNB with coaxial output. It stacks the 4 SAT IF polarities creating a single IF frequency ranging from 950 to 5450 MHz.
- ODU32 is a converter that combines the SAT IF signals coming from the LNB with the DAB/DTT terrestrial ones, transmitting them through 2 optical outputs.
- Optical power from 6 to 8 dBm.

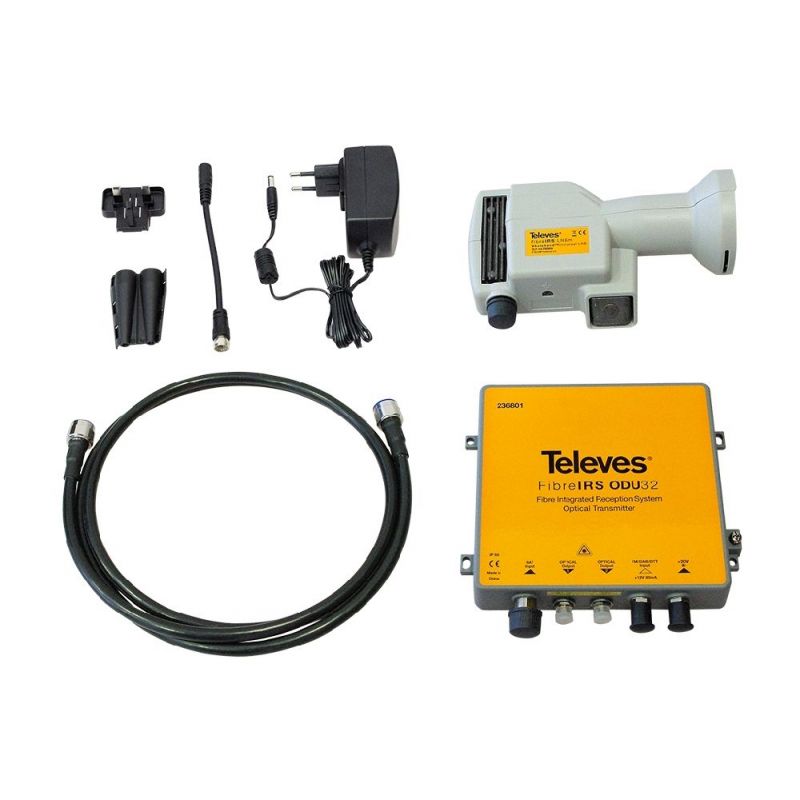

Composition of the kit:
- LNB offset.
- ODU32 converter from RF to optical signal.
- AC / DC power adapter.
- Hose (2m / 50Ω / N Connectors).
- Protective caps for the connectors.
- Support to anchor the ODU 32 to a mast.
Specifications
| Reference | 236801 | |||
| OPTICAL | Wavelength | nm | 1310 | |
| Opticalpower per output connector | dBm | 6 a 8 | ||
| DAB / DVB-T |
Input frequency | DAB / DVB-T | MHz | 217...230 / 470...862 |
| Impedance | ohm | 75 | ||
| Input levels * (DAB must be 15 dB below DTT) |
1 channel | dBμV |
70 to 95 * | |
| 4 channel | 90 | |||
| 8 channel | 85 | |||
| Gain | 15...45 | |||
| DTT flatness | In-band | dB | 4 | |
| In-channel | 0,5 | |||
| AGC range | 25 | |||
| Noise figure at max gain | 10 | |||
| OIP3(1) | dBμV | 134 | ||
| Rejection (950-2150 MHz) | dB | 20 | ||
| SAT |
Input frequenc | Vertical/Horizontal polarisations | MHz | 950...3000 / 3400...5450 |
| Impedancia | Ohm | 50 | ||
| Nivel de entrada | dBμV | 96 a 111 | ||
| In-band gain flatness | Vertical polarisation | db | 4 | |
| Horizontal Polarisation | 7 (3 dB de slope) | |||
| Gain flatness | per 30 MHz segment | 1 | ||
| AGC range (min) | 15 | |||
| Noise figure at max gain | 12 | |||
| OIP3 (mín) (1) | dBμV | 129 | ||
| Rejection (217-862 MHz) (min) | dB | 20 | ||
| ELECTRICAL | Powering voltage (through F connector) | Vdc | 12 | |
| LNB powering voltage (through F connector) | Vdc | 6,2 | ||
| Current consumption (including optical LNB) | mA | 500 | ||
| MECHANICAL | Connectors | Optical output | typ | FC/PC |
| Satellite input | N female | |||
| DVB-T/DAB input | F female | |||
| Power input | F female | |||
| Operating temperature | ºC | da -30 to +60 | ||
| Weight | gr | 545 | ||
| ODU Dimensions (W x H x D) | mm | 168 × 160 × 30 | ||
