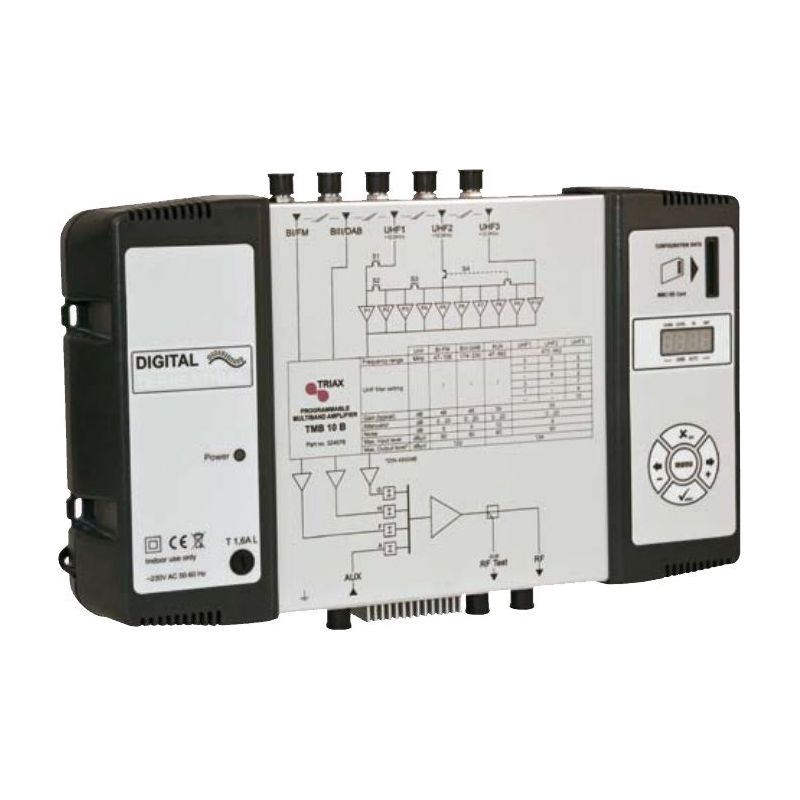

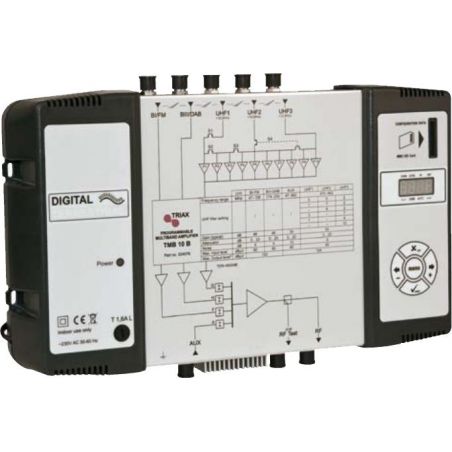

Central Programmable 6 inputs / 1 outputs 55 dB 10 filters TMB10B Triax
It has all the necessary configurations to amplify and distribute a high number of channels within a network.
€574.75
Tax included
Reference
triax-324576
Brand
Triax
Central Programmable 6 inputs / 1 outputs 55 dB 10 filters TMB10B Triax
€574.75
It has all the necessary configurations to amplify and distribute a high number of channels within a network.
Features
- High flexibility
- 10 adjustable filters in the UHF frequency range ensure great flexibility. Each of these clusters can have a bandwidth of 1-6 channels (48 MHz).
- 6 inputs: FM / DAB / VHF / UHF and 3 UHF inputs divided into 10 programmable UHF clusters
- Automatic or manual control of the output level
- C.A.G (AUTOMATIC GAIN CONTROL) for all processed channels
- Easy programming
Specifications
|
EAN number |
5702663245761 |
|
Input |
|
|
Number of outputs |
10|{2C6547FB-ED28-40F6-A986-DD37DBBB5298} |
|
Number of inputs |
6 |
|
Number of filters |
10 Pcs |
|
Gain |
|
|
Input BI/FM |
48 dB |
|
Input BIII/DAB |
48 dB |
|
Input UHF 1 |
55 dB |
|
Input VHF and UHF (aux) |
39 dB |
|
Input UHF 2 |
55 dB |
|
Input UHF 3 |
55 dB |
|
Noise figure |
|
|
VHF |
5.0 dB |
|
DVB-T UHF |
5.0 dB |
|
VHF and UHF (aux) |
6.0 dB |
|
UHF |
9.0 dB |
|
Output |
|
|
BI |
124 dBµV |
|
BIII |
124 dBµV |
|
VHF/UHF (aux) |
124 dBµV |
|
UHF |
124 dBµV |
|
Number of outputs |
10|{2C6547FB-ED28-40F6-A986-DD37DBBB5298} |
|
Test point |
Yes (- 30) dB |
|
Selectivity |
16/16 dB/Hz |
|
Attenuation |
0-20 dB |
|
DC power for preamplifier |
12 or 24/50 V/mA |
|
Power supply |
230/50 V/AC |
|
Impedance |
75 Ohm |
|
Temperature - operating |
0....+55 oC |
|
Connectors |
F female |
|
Connectors output |
F female |
|
External grounding earth terminal |
Yes |
|
Dimensions LxWxH |
354 x 215 x 50 mm |
