SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 198 AND id_lang = 2 Centrale programmable 6 entrées / 1 sortie 55 dB Triax 10 filtres TMB10B
Central Programable 6 entradas/1 salidas Triax 55 dB 10 filtros TMB10B
search
  • Central Programable 6 entradas/1 salidas Triax 55 dB 10 filtros TMB10B

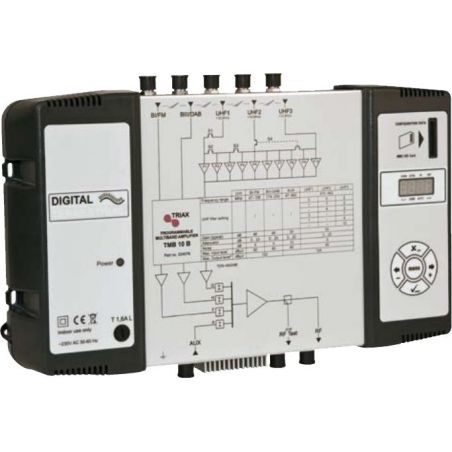

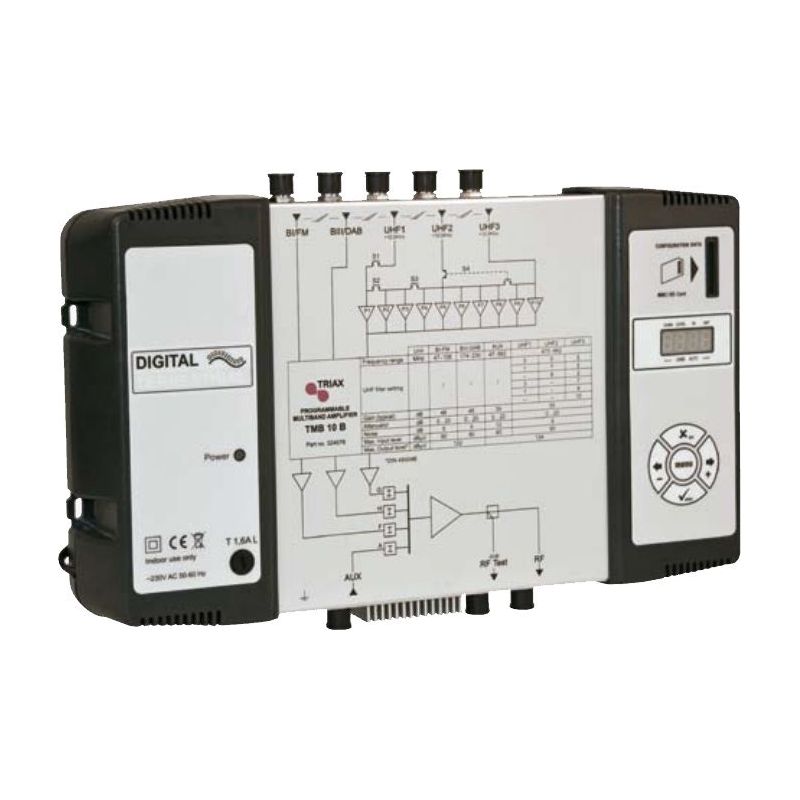

Centrale Programmable 6 entrées / 1 sorties 55 dB 10 filtres TMB10B Triax

Il a toutes les configurations nécessaires pour amplifier et distribuer un nombre élevé de canaux dans un réseau.

574,75 €
TTC
Référence triax-324576
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping
Central Programable 6 entradas/1 salidas Triax 55 dB 10 filtros TMB10B

Centrale Programmable 6 entrées / 1 sorties 55 dB 10 filtres TMB10B Triax

574,75 €

Il a toutes les configurations nécessaires pour amplifier et distribuer un nombre élevé de canaux dans un réseau.

Caractéristiques

  • Grande flexibilité
  • 10 filtres réglables dans la gamme de fréquence UHF assurent une grande flexibilité. Chacune de ces grappes peut avoir une bande passante de 1-6 canaux (48 MHz).
  • 6 entrées: FM / DAB / VHF / UHF et 3 entrées UHF réparties en 10 grappes UHF programmables
  • Contrôle automatique ou manuel du niveau de sortie
  • C.A.G (AUTOMATIC GAIN CONTROL) pour tous les canaux traités
  • Programmation facile

Spécifications

EAN number

5702663245761

Input

Number of outputs

10|{2C6547FB-ED28-40F6-A986-DD37DBBB5298}

Number of inputs

6

Number of filters

10 Pcs

Gain

Input BI/FM

48 dB

Input BIII/DAB

48 dB

Input UHF 1

55 dB

Input VHF and UHF (aux)

39 dB

Input UHF 2

55 dB

Input UHF 3

55 dB

Noise figure

VHF

5.0 dB

DVB-T UHF

5.0 dB

VHF and UHF (aux)

6.0 dB

UHF

9.0 dB

Output

BI

124 dBµV

BIII

124 dBµV

VHF/UHF (aux)

124 dBµV

UHF

124 dBµV

Number of outputs

10|{2C6547FB-ED28-40F6-A986-DD37DBBB5298}

Test point

Yes (- 30) dB

Selectivity

16/16 dB/Hz

Attenuation

0-20 dB

DC power for preamplifier

12 or 24/50 V/mA

Power supply

230/50 V/AC

Impedance

75 Ohm

Temperature - operating

0....+55 oC

Connectors

F female

Connectors output

F female

External grounding earth terminal

Yes

Dimensions LxWxH

354 x 215 x 50 mm
