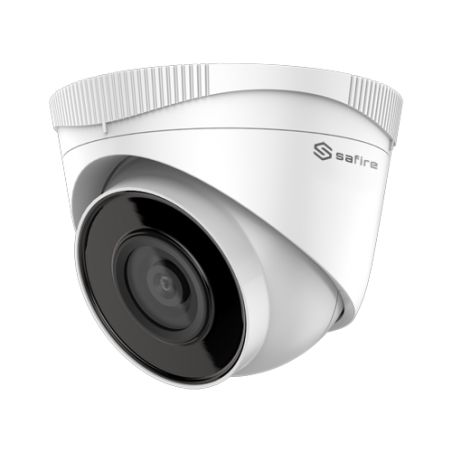

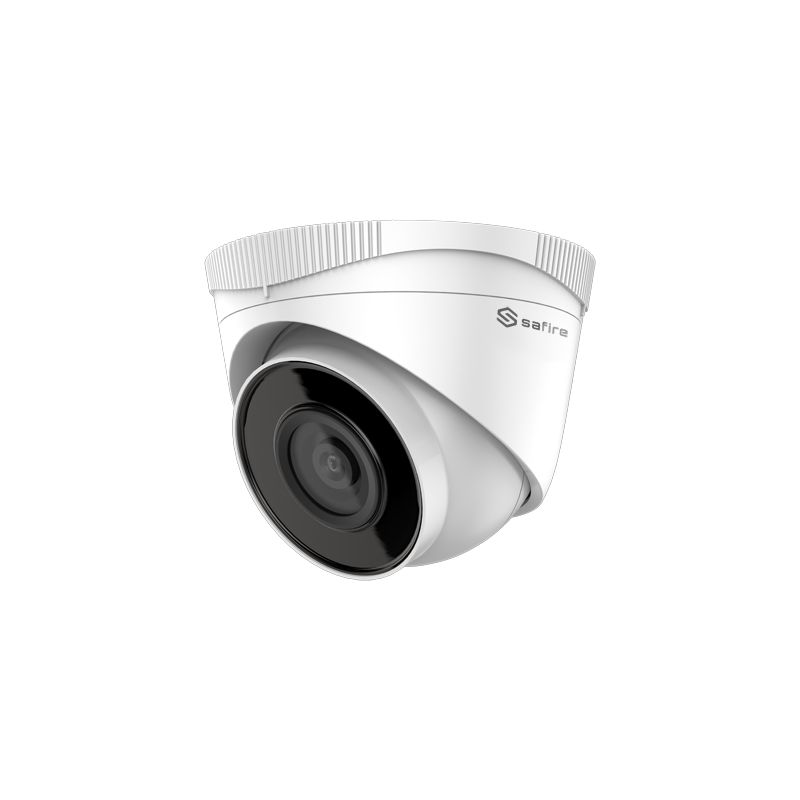

Safire SF-IPT943H-4E - 4 MP IP Camera, 1/3\" Progressive Scan CMOS,…

4 MP IP Camera - 1/3" Progressive Scan CMOS - Compression H.265+ / H.265 - 2.8 mm Lens - IR LEDs Range 30 m - PoE IEEE802.3af | IP67
€47.19 €72.60 Save 35%
Tax included
Reference SF-IPT943H-4E
Brand Safire
Quantity
In Stock

Free shipping
CVMD-324V-3A - Current and Voltage Meter, Simple connection, Allows…

Safire SF-IPT943H-4E - 4 MP IP Camera, 1/3\" Progressive Scan CMOS,…

€47.19 €72.60 Save 35%

You might also like

  • Safire
  • IP camera
  • 1/3" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • 2.8 mm Lens
  • 0 Lux
  • IR Range 30 m
  • H.265+/H.265/H.264+/H.264
  • Dual stream
  • IR Cut
  • RJ-45 10/100 BaseT
  • WEB, CMS, Smartphone and NVR interface
  • ONVIF Compatible
  • PoE IEEE802.3af
  • Weatherproof IP67

Features

  • 4 MP IP Camera
  • 1/3" Progressive Scan CMOS
  • Compression H.265+ / H.265
  • 2.8 mm Lens
  • IR LEDs Range 30 m
  • PoE IEEE802.3af | IP67

Specs

BrandSAFIRE
Image sensor1/3" Progressive Scan CMOS
Maximum resolution4 Megapixel (2560x1440)
Main Stream rate20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Extra Stream rate25 fps (640 × 480, 640 × 360, 320 × 240)
CompressionH.265+ / H.264+ / H.265 / H.264
Bitrate32 Kbps ~ 8 Mbps
Lens2.8 mm
Minimum illumination0.028 Lux F2.0 (color)
Infrared lighting0 Lux / IR LEDs (30 m)
Image improvementsBLC, 3D-DNR, DWDR, AWB, ROI, Motion detection, Mirror, Privacy mask
Day / NightRemovable mechanical ICR filter
Network interfaceEthernet 10/100M BaseT
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
InteroperabilityONVIF, PSIA, CGI, ISAPI
Lens positioning3 Axis
PowerDC 12 V / 350 mA, PoE IEEE802.3af
Degree of protectionWeatherproof IP67
Temp. operation-30º C ~ +60º C
Dimensions110 (Ø) x 94.4 (h) mm
Weight360 g

Package content

  • Safire IP Turret Camera
  • Installation material
  • User instructions
  • CD with software and instructions

Data sheet

Weight
360 g
Power
DC 12 V / 350 mA, PoE IEEE802.3af
DC 12V / 18W
Temp. operation
-30º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
110 (Ø) x 94.4 (h) mm
Transfer Rate
32 Kbps ~ 8 Mbps
Dimensions / Weight
45 (H) x 315 (W) x 242 (D) mm / 2 Kg
Communication
RS485 (PTZ) / 2 x USB 2.0**(Mouse and backup) / RJ45 (Ethernet)
Video format
HDTVI / AHD / CVBS / IP
Image sensor
1/3\" Progressive Scan CMOS
Minimum illumination
0.028 Lux F2.0 (color)
Lens
2.8 mm
Maximum resolution
4 Megapixel (2560x1440)
Infrared lighting
0 Lux / IR LEDs (30 m)
Image improvements
BLC, 3D-DNR, DWDR, AWB, ROI, Motion detection, Mirror, Privacy mask
Day / Night
Removable mechanical ICR filter
Video inputs
BNC / HDTVI / AHD & CVBS channels
Bidirectional audio
Reusing the audio input/output
Display resolution
1920x1080, 1280x1024, 1280x720, 1024x768
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection, alarm
Internal memory
1 SATA HDD up to 10TB (not included)
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Web browser, Smartphone App IVMS4500 and PC Software IVMS4200
Main Stream rate
20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Extra Stream rate
25 fps (640 × 480, 640 × 360, 320 × 240)
Compression
H.265+ / H.264+ / H.265 / H.264
Network interface
Ethernet 10/100M BaseT
Video outputs
1 HDMI Full HD, 1 VGA, 1BNC
Video / audio compression
H.264+ / H.264 / G.711u
Main Stream coding
1080p (1~12 FPS) / 720p / VGA / WD1 / 4CIF / CIF (1~25 FPS)
Hybrid configuration
8 Channels from BNC and 2 Channel IP (1080p)
Audio inputs
1 RCA Channel / 8 ch coax
Audio outputs
1 Channel RCA
Recording resolution
1080p / 720p / WD1 / 4CIF /VGA / CIF
Extra Stream coding
WD1 / 4CIF / 2CIF (1~12FPS) / CIF / QVGA / QCIF (1~25 FPS)
Backup
USB (Memory, HDD, CD-RW, DVR-RW) / Network
Video analysis
VCA: Line crossing and area intrusion
Interoperability
ONVIF, PSIA, CGI, ISAPI
Lens positioning
3 axis
