SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 104SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 21216 AND id_lang = 2 Safire SF-IPT943H-4E - Caméra IP 4 Megapixel, 1/3\" Progressive Scan CMOS,…
  • -35%
CVMD-324V-3A - Mesureur de courant et de tension, Une connexion…
search
  • CVMD-324V-3A - Mesureur de courant et de tension, Une connexion…

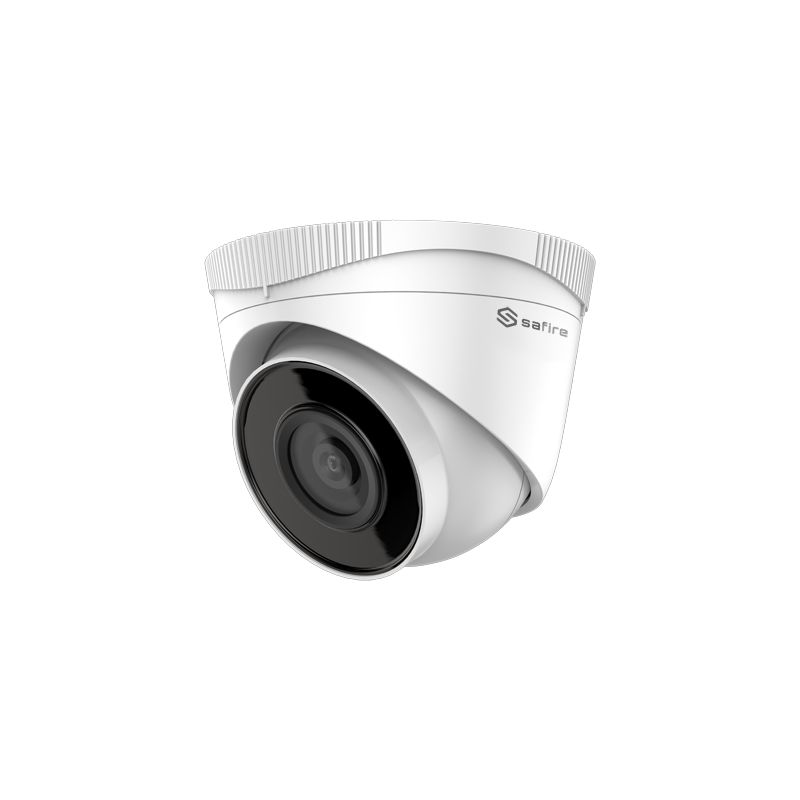

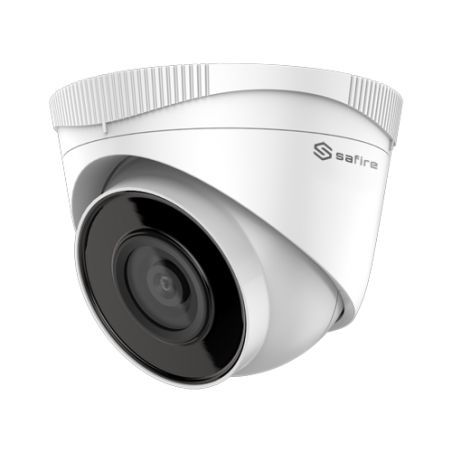

Safire SF-IPT943H-4E - Caméra IP 4 Megapixel, 1/3\" Progressive Scan CMOS,…

Caméra IP 4 Megapixel - 1/3" Progressive Scan CMOS - Compression H.265+ / H.265 - Objectif 2.8 mm - IR LEDs Portée 30 m - PoE IEEE802.3af | IP67 -
47,19 € 72,60 € Économisez 35%
TTC
Référence SF-IPT943H-4E
Marque Safire
Quantité
Disponible

Free shipping
CVMD-324V-3A - Mesureur de courant et de tension, Une connexion…

Safire SF-IPT943H-4E - Caméra IP 4 Megapixel, 1/3\" Progressive Scan CMOS,…

47,19 € 72,60 € Économisez 35%

Vous aimerez aussi

  • Safire
  • Caméra IP
  • 1/3" Progressive Scan CMOS
  • 4 Megapixel (2560x1440)
  • Objectif 2.8 mm
  • 0 Lux
  • IR Portée 30 m
  • H.265+/H.265/H.264+/H.264
  • Dual Stream
  • IR CUT
  • RJ-45 10/100 BaseT
  • Interface WEB, CMS, Smartphone et NVR
  • Compatible avec ONVIF
  • PoE IEEE802.3af
  • Étanche IP67

Caractéristiques

  • Caméra IP 4 Megapixel
  • 1/3" Progressive Scan CMOS
  • Compression H.265+ / H.265
  • Objectif 2.8 mm
  • IR LEDs Portée 30 m
  • PoE IEEE802.3af | IP67

Spécifications

MarqueSAFIRE
Capteur d'image1/3" Progressive Scan CMOS
Résolution maximale4 Megapixel (2560x1440)
Taux Main Stream20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Taux Extra Stream25 fps (640 × 480, 640 × 360, 320 × 240)
CompressionH.265+ / H.264+ / H.265 / H.264
Bitrate32 Kbps ~ 8 Mbps
Objectif2.8 mm
Illumination minimale0.028 Lux F2.0 (couleur)
Illumination infrarouge0 Lux / LEDs IR (30 m)
Améliorations d'imageBLC, 3D-DNR, DWDR, AWB, ROI, Détection de mouvement, Mirror, Masque de confidentialité
Jour / NuitFiltre ICR mécanique amovible
Interface réseauEthernet 10/100M BaseT
Accès distantNavigateur Web, App Smartphone et Software PC Safire Control Center
InteropérabilitéONVIF, PSIA, CGI, ISAPI
Positionnement de l'objectif3 Axes
AlimentationDC 12 V / 350 mA, PoE IEEE802.3af
Degré de protectionÉtanche IP67
Temp. fonctionnement-30º C ~ +60º C
Dimensions110 (Ø) x 94.4 (H) mm
Poids360 g

Contenu de l'emballage

  • Caméra Turret SAFIRE IP
  • Matériel d'installation
  • Mode d'emploi
  • CD avec le logiciel et les instructions

Fiche technique

Poids
360 g
Power
DC 12 V / 18 W
DC 12 V / 350 mA, PoE IEEE802.3af
Temp. operation
-30º C ~ +60º C
Degree of protection
Étanche IP67
Dimensions
110 (Ø) x 94.4 (H) mm
Taux de transfert
32 Kbps ~ 8 Mbps
Dimensions / Poids
45 (Al) x 315 (An) x 242 (Fo) mm / 2 Kg
Communication
RS485 (PTZ) / 2 x USB 2.0**(Souris y backup) / RJ45 (Ethernet)
Format
HDTVI / AHD / CVBS / IP
Capteur d\'image
1/3\" Progressive Scan CMOS
Illumination minimale
0.028 Lux F2.0 (couleur)
Objectif
2.8 mm
Résolution maximale
4 Megapixel (2560x1440)
Illumination infrarouge
0 Lux / LEDs IR (30 m)
Améliorations d\'image
BLC, 3D-DNR, DWDR, AWB, ROI, Détection de mouvement, Mirror, Masque de confidentialité
Jour / Nuit
Filtre ICR mécanique amovible
Entrées vidéo VGA
Canaux BNC, HDTVI / AHD / CVBS
Audio Bidirectionnel
En reutilisant l\'entrée/sortie d\'audio
Résolution d\'affichage
1920x1080, 1280x1024, 1280x720, 1024x768
Multi-fonctions simultanées
Pentaplex: Direct, Enregistrement, Reproduction, Backup et Accès à distance
Alarmes
Non disponible
Méthode d\'enregistrement
Manuel, programmé, Détection de movimiento, alarme
Stockage interne
1 Disque dur SATA jusqu\'à 10TB (non inclus)
Accès distant
Navigateur Web, App Smartphone IVMS4500 et Software PC IVMS4200
Navigateur Web, App Smartphone et Software PC Safire Control Center
Main Stream rate
20 fps (2560 x 1440, 2304 x 1296, 1920 × 1080, 1280 × 960, 1280×720)
Extra Stream rate
25 fps (640 × 480, 640 × 360, 320 × 240)
Compression
H.265+ / H.264+ / H.265 / H.264
Network interface
Ethernet 10/100M BaseT
Sorties vidéo
1 HDMI Full HD, 1 VGA, 1BNC
Compression vidéo/audio
H.264+ / H.264 / G.711u
Codification Main Stream
1080p (1~12 iPS) / 720p / VGA / WD1 / 4CIF / CIF (1~25 iPS)
Configuration hybride
8 Canaux desde BNC et 2 Canal IP (1080p)
Entrées audio
1 Canal RCA / 8 ch coaxial
Sorties audio
1 Canal RCA
Résolution d\'enregistrement
1080p / 720p / WD1 / 4CIF /VGA / CIF
Codification Extra Stream
WD1 / 4CIF / 2CIF (1~12FPS) / CIF / QVGA / QCIF (1~25 FPS)
Backup
USB (Mémoire, HDD, CD-RW, DVR-RW) / Réseau
Analyse vidéo
VCA: Franchissement de ligne et Intrusion de zone
Interopérabilité
ONVIF, PSIA, CGI, ISAPI
Positionnement de l\\'objectif
3 axe
