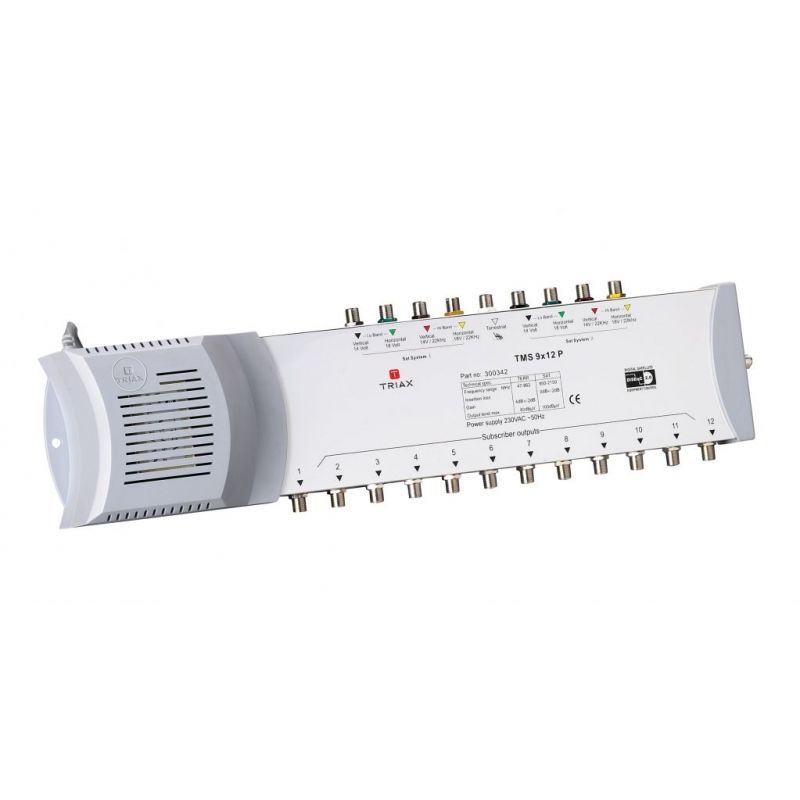

Triax TMS 9x12P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/12o
Triax TMS 9X12P is a 12-way switch for distribution of the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. The unit has a built-in power supply for LNB's. The TMS 9X12P supports DiSEqC.
€183.00
€399.28
Save €216.28
Tax included
Reference
triax-300342
Brand
Triax
Triax TMS 9x12P Multiswitch End Switch 8 polarities + terrestrial. Power supply included. 9i/12o
€183.00
€399.28
Save €216.28
Triax TMS 9X12P is a 12-way switch for distribution of the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost.
Features
- Multiswitch 8 polarities SAT + 1 Terrestrial. 12 Outputs
- Integrated power supply
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663003422 |
| CHARACTERISTICS | |
| Max. output level SAT @ -35 dB IMD3 | 100 dBµV |
| Max. output level TER @ -60dB IMD3 | 83 dBµV |
| Switch commands | 13/18 V, 0/22 kHz, DiSEqC 1.0 |
| FREQUENCY | |
| Frequency range SAT | 950-2150 MHz |
| Frequency range TER | 47-862 MHz |
| GAIN | |
| Gain - SAT (with 5 dB slope) | 0 dB |
| Gain - TER [47-862 MHz] | 4.0 dB |
| ISOLATION | |
| Isolation cross polarisation H/V | 25 dB |
| Isolation out-out SAT | 30 dB |
| Isolation out-out TER | 28 dB |
| Isolation SAT to TER | 30 dB |
| Isolation TER to SAT | 30 dB |
| RETURN LOSS | |
| Return loss SAT inputs | 10 dB |
| Return loss SAT outputs | 10 dB |
| Return loss TER inputs | 12 dB |
| Return loss TER outputs | 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 15.0 ± 1.0 VDC |
| Max. current pass per F-connector | 1000 mA |
| Temperature range | 0...+55 °C |
| CONNECTORS | |
| Colourcoding of IF and TER inputs | VL=Black, VH=Red, HL=Green, HH=Yellow |
| Connector Type | F-female |
| Number of outputs | 9 |
| Number of trunk inputs | 8 SAT, 1 TER |
| Number of trunk outputs | 8 SAT, 1 TER |
| Subscriber outputs | 12 |
| MECHANICAL | |
| Product Depth | 103 mm |
| Packaging Depth | 0,495 m |
| Packaging Height | 0,085 m |
| Total Weight | 2,022 kg |
| Packaging Width | 0,145 m |
| Net Weight | 1,778 kg |
| Packing QTY | 1 |
| Tara Weight | 0,244 kg |
| Packaging Volume | 0,006 m3 |
| Product Width | 459 mm |
| Product Height | 71 mm |
