SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 232 AND id_lang = 2 Commutateur final Multiswitch 8 Triax + 12 polarités récepteurs terrestres y compris l'alimentation
  • -216,28 €
Conmutador Final 8 polaridades + terrestre para 12 receptores alimentacion incluida
search
  • Conmutador Final 8 polaridades + terrestre para 12 receptores alimentacion incluida

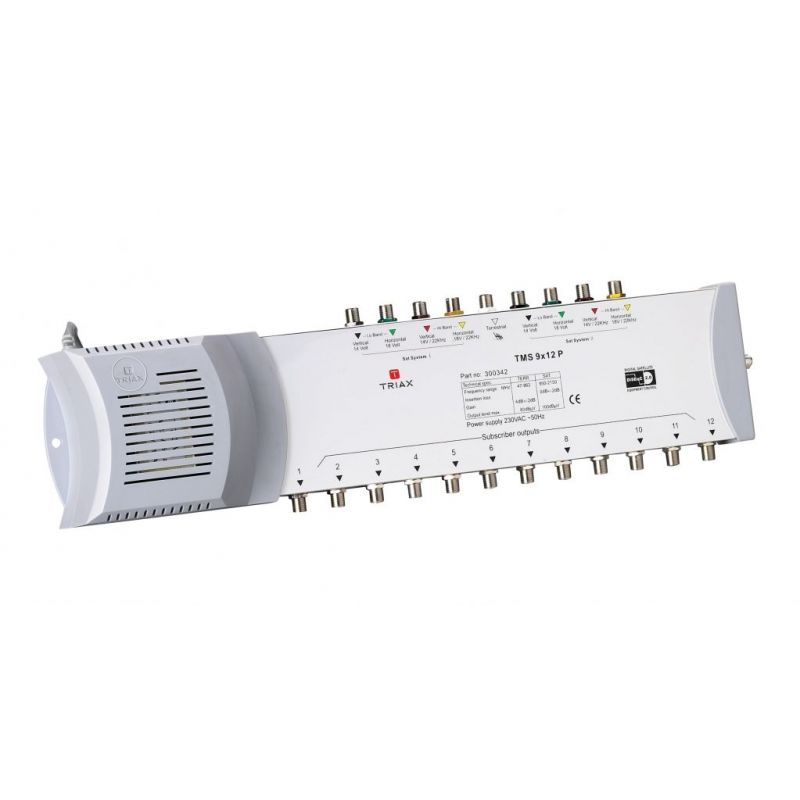

Triax TMS 9x12P Multiswitch End Switch 8 polarités + terrestre. Alimentation incluse. 9e/12s

Triax TMS 9X12P is a 12-way switch for distribution of the 2-position satellite IF signal. The switch can be used individually in efficient systems and at low cost. The unit has a built-in power supply for LNB's. The TMS 9X12P supports DiSEqC.

183,00 € 399,28 € Économisez 216,28 €
TTC
Référence triax-300342
Marque Triax
Quantité
Disponible dès maintenant

Free shipping
Conmutador Final 8 polaridades + terrestre para 12 receptores alimentacion incluida

Triax TMS 9x12P Multiswitch End Switch 8 polarités + terrestre. Alimentation incluse. 9e/12s

183,00 € 399,28 € Économisez 216,28 €

Triax TMS 9X12P est un commutateur à 12 voies pour la distribution du signal IF satellite à 2 positions. L'interrupteur peut être utilisé individuellement dans des systèmes efficaces et à faible coût.

Caractéristiques

  • Multiswitch 8 polarités SAT + 1 Terrestre. 12 sorties
  • Alimentation intégrée

Spécifications

INFORMATIONS SUR LA COMMANDE
Code EAN 5702663003422
CARACTÉRISTIQUES
Niveau de sortie max. SAT à -35 dB IMD3 100 dBµV
Niveau de sortie max. TER à -60dB IMD3 83 dBµV
Commandes de commutation 13/18 V, 0/22 kHz, DiSEqC 1.0
BANDE DE FRÉQUENCES
Bande passante SAT 950-2150 MHz
Bande passante TER 47-862 MHz
GAIN
Gain SAT (avec pente de 5 dB) 0 dB
Gain - TER [47-862 MHz] 4.0 dB
ISOLATION
Isolation sortie-sortie SAT 30 dB
Isolation sortie-sortie TER 28 dB
Isolation SAT vers TER 30 dB
Isolation TER vers SAT 30 dB
ADAPTATION
Perte de retour entrées SAT 10 dB
Perte de retour sorties SAT 10 dB
Perte de retour entrées TER 12 dB
Perte de retour sorties TER 10 dB
CARACTÉRISTIQUES ÉLECTRIQUES
Impédance 75 Ω
OPÉRATIONNEL
DC Tension d'alimentation 15.0 ± 1.0 VDC
Courant max. de passage par connecteur F 1000 mA
Plage de température 0...+55 °C
CONNECTEURS
Type de Connecteur F-femelle
Nombre de sorties 9
Nombre d'entrées ligne de transport 8 SAT, 1 TER
Nombre de sorties ligne de transport 8 SAT, 1 TER
Sorties usagers 12
MÉCANIQUE
Profondeur 103 mm
Profondeur brute 0,495 m
Hauteur brute 0,085 m
Poids brut 2,022 Kg
Largeur brute 0,145 m
Poids net 1,778 kg
Quantité par emballage 1
Poids de l'emballage 0,244 Kg
Volume 0,006 m3
Largeur 459 mm
Hauteur 71 mm
