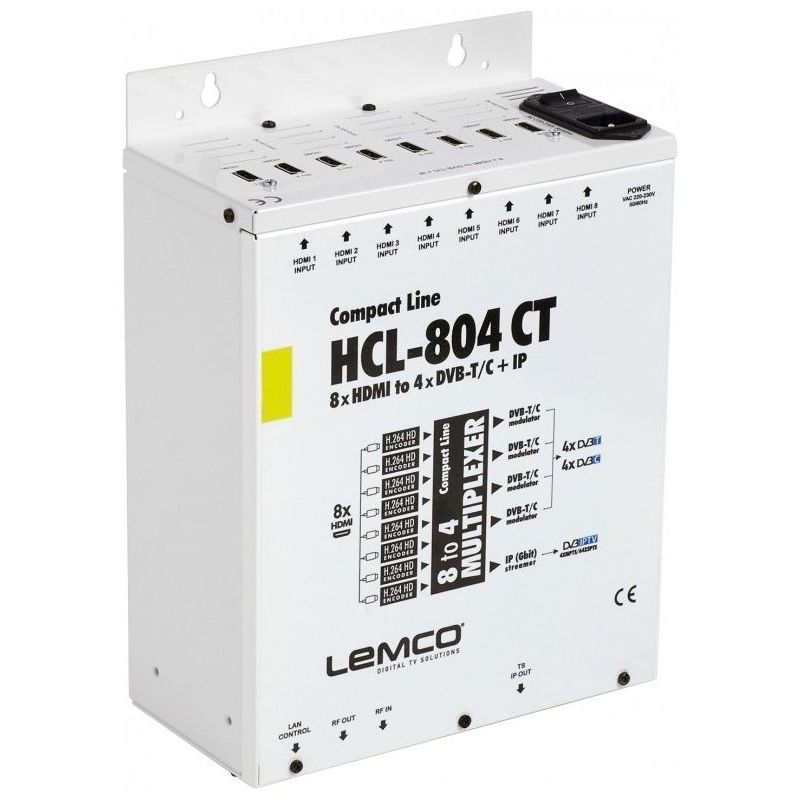

Lemco HCL-804CT Digital header + IP streaming
The HCL-804CT is a very powerful all-in-one device, capable of receiving up to 8 independent HDMI sources and converting them into 4 channels of DVB-T / C RF output while simultaneously performing IP Gbit transmission. It is compatible with the "group" technology, the user can select any program from any of the 8 inputs and assign it to any of the 4 RF + IP outputs.
€2,108.00
Tax included
Reference
lemco-hcl-804ct
Brand
Lemco

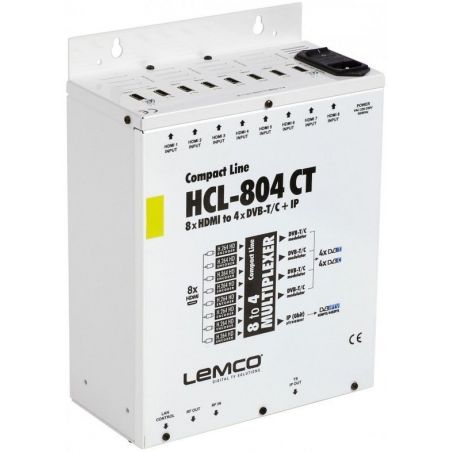

Lemco HCL-804CT Digital header + IP streaming
€2,108.00
You might also like
The HCL-804CT is a very powerful, all-in-one device, able to receive up to 8 independent HDMI sources and convert them in 4 x DVB-T/C RF output channels while making Gbit IP streaming simultaneously. It supports “pool” technology, meaning that the user is able to select any program from any of the 8 inputs and assign it to any of the 4 RF + IP outputs providing great flexibility.
The embedded web server of the HCL-804CT provides a very friendly user interface as well as the ability of remote or local control of the device via Ethernet.
Its small size and its powerful features renders the HCL-804CT the ideal solution in cases went we want to distribute HDMI sources coming e.g. from a STB or DVD player to a CATV installation using the DVB-T/C and IP technology.
Features
- 8 x independent HDMI inputs
- HDCP support
- 4 x RF output DVB-T/C (software selectable)
- Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
- “Pool” technology
- MER value > 40dB
- Very clean RF spectrum
- PCR re-stamping
- Very friendly user interface
- Wall or rack mountable
- Compact size
- 5 year warranty
Specifications
| Input | |
| Type | 8 x DVB-S/S2/T/T2/C |
| Frequencies | 950…2150 MHz DVB-S/S2 - 118…900MHz DVB-T/T2/C |
| Connector | 75Ω - F, female |
| LNB | |
| Voltage | OFF / 13V / 18V |
| Current | Less than 400mA |
| 22 kHz signal | On / Off |
| 22 kHz signal - Voltage | 0.65V ±0.35V |
| 22 kHz signal - Frequency | 22 KHz ±4Hz |
| 22 kHz signal - DiSEqC | 1.0 (Port A, B, C, D) |
| DVB-S (IN) | |
| Symbol rate | 1 - 45 MBaud |
| Roll off factor | 0.35 |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 (Automatic) |
| Spectral inversion | Reverse, Non-reverse (Automatic) |
| DVB-S2 (IN) | |
| Constellation | QPSK, 8PSK (Automatic) |
| Symbol rate | 1 - 45 MBaud (QPSK) - 1 - 30 MBaud (8PSK) |
| Roll off factor | 0.2 / 0.35 (Automatic) |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic) - 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic) |
| Spectral inversion | Reverse, Non-reverse (Automatic) |
| DVB-T (IN) | |
| Bandwidth | 6, 7, 8 MHz |
| Mode | 2K, 8K |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| DVB-T2 (IN) | |
| Bandwidth | 5, 6, 7, 8 MHz |
| Mode | 1K, 2K, 4K, 8K, 16K, 32K (Included extended mode) |
| Constellation | QPSK, 16QAM, 64QAM, 256QAM |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
| DVB-C (Annex A,B,C) (IN) | |
| Bandwidth | 5, 6, 7, 8 MHz |
| Mode | Automatic modulation detection |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| DVB-T (OUT) | |
| Bandwidth | 5, 6, 7, 8 MHz |
| Mode | 2K, 8K |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| DVB-C (OUT) | |
| Bandwidth | 5, 6, 7, 8 MHz |
| Mode | 2K, 8K |
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM |
| Symbol rate | 1-7.2 Ms/s |
| Programming Interface | |
| Ethernet webserver | Yes, embedded webserver |
| Speed | 10/100 Mbps |
| Connector | RJ45 |
| Browser compatibility | Chrome, Firefox, Safari, Opera, Edge et al. |
| Transport Stream Processing | |
| Services | User selection by service names |
| Automatic regeneration | PAT, CAT, SDT, PMTs, EITs tables |
| NIT | Pass-through, custom,automatic |
| PCR | re-stamping |
| LCN support | Yes |
| IP Streaming | |
| IP TS Out | Yes |
| Protocol | UDP / RTP (Multicast/Unicast) |
| Speed | 1 Gbit (480 Mbps in IP only mode) |
| IGMP support | Yes, v2, v3 |
| Type | MPTS (up to 4 TS) - SPTS (up to 8 HD programs |
| RF Output | |
| Type | 4 x RF out in adjacent channels |
| Output Frequencies | 36…950 MHz (1 Hz step) |
| Output Level | 90dBµV |
| Connector | 75Ω - F, female |
| Output Attenuator | 0…-20dB |
| MER | More than 40dB |
| Output loop-through loss | Less Than 1dB |
| General | |
| Power supply | 108 to 240 VAC 50/60Hz |
| Power supply consumption | 55 VA max. |
| Operating temperature | 0 ºC to 40 ºC |
| Storage temperature | -10 ºC to +70 ºC |
| Dimensions | 296.2 x 204.50 x 106 mm |
| Weight | 1.7 Kg |
