SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 79SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2338 AND id_lang = 2 Lemco HCL-804CT En-tête numérique + streaming IP
Lemco HCL-804CT Tête numérique + IP streaming
search
  • Lemco HCL-804CT Tête numérique + IP streaming
  • Lemco HCL-804CT Tête numérique + IP streaming
  • Lemco HCL-804CT Tête numérique + IP streaming
  • Lemco HCL-804CT Tête numérique + IP streaming

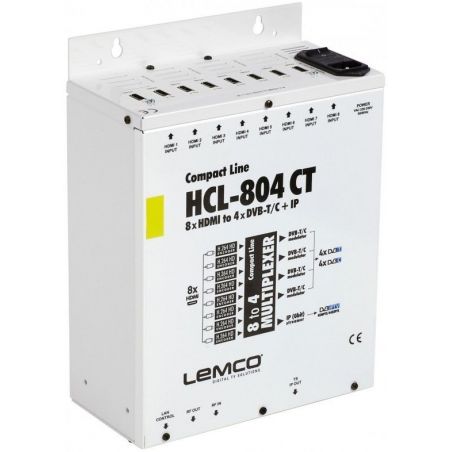

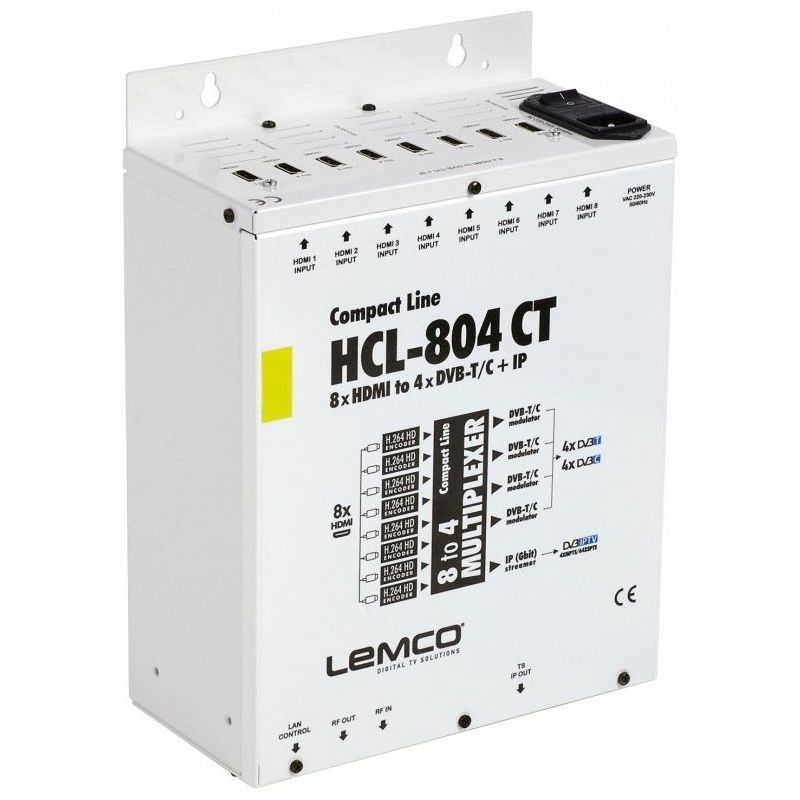

Lemco HCL-804CT En-tête numérique + streaming IP

Le HCL-804CT est un appareil tout-en-un très puissant, capable de recevoir jusqu'à 8 sources HDMI indépendantes et de les convertir en 4 canaux de sortie RF DVB-T/ C tout en effectuant simultanément une transmission IP Gbit. Il est compatible avec la technologie "groupe", l'utilisateur peut sélectionner n'importe quel programme parmi l'une des 8 entrées et l'affecter à l'une des 4 sorties RF + IP

2 108,00 €
TTC
Référence lemco-hcl-804ct
Marque Lemco
Quantité
Disponible dans 5/7 jours

Free shipping
Lemco HCL-804CT Tête numérique + IP streaming

Lemco HCL-804CT En-tête numérique + streaming IP

2 108,00 €

Vous aimerez aussi

Le HCL-804CT est un appareil tout-en-un très puissant, capable de recevoir jusqu'à 8 sources HDMI indépendantes et de les convertir en 4 canaux de sortie RF DVB-T / C tout en faisant Gbit IP streaming simultanément. Il prend en charge la technologie "pool", ce qui signifie que l'utilisateur est capable de sélectionner n'importe quel programme à partir de l'une des 8 entrées et de l'affecter à l'une des 4 sorties RF + IP offrant une grande flexibilité.

Le serveur web intégré de la HCL-804CT fournit une interface utilisateur très conviviale ainsi que la capacité de contrôle distant ou local de l'appareil via Ethernet.

Sa petite taille et ses fonctionnalités puissantes rend la HCL-804CT la solution idéale dans les cas où nous voulions distribuer des sources HDMI venant par exemple. D'un lecteur DVD ou STB à une installation CATV utilisant la technologie DVB-T / C et IP.

Caractéristiques

  • 8 x entrées HDMI indépendantes
  • Prise en charge HDCP
  • 4 x sortie RF DVB-T / C (logiciel sélectionnable)
  • Gbit IP streaming (jusqu'à 64 x SPTS / 4 x MPTS)
  • Technologie "Pool"
  • Valeur MER> 40dB
  • Spectre RF très propre
  • Re-estampage PCR
  • Interface utilisateur très conviviale
  • Montage mural ou en rack
  • Format compact
  • Garantie 5 ans

Spécifications

DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
HDMI Input
Type 8 x HDMI inputs
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Input resolution Up to 1920 x 1080 - 50/60 p & i
Output resolution Up to 1920 x 1080 - 30p
HDCP support Yes
Audio (IN)
Audio HDMI
Standard MPEG-1 Layer II
Audio bit rate 64, 96, 128, 192, 256, 320 Kbps
Format MPEG2, AAC, AC3
H.264 encoder
Standard MPEG-4 AVC / H.264
Bit rate 1 – 19 Mbps adjustable
Configurable parameters Service Name, Service ID
LCN processing Yes
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit (480 Mbps in IP only mode)
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS) - SPTS (up to 8 HD programs
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 36…950 MHz (1 Hz step)
Output Level 90dBµV
Connector 75Ω - F, female
Output Attenuator 0…-20dB
MER More than 40dB
Output loop-through loss Less Than 1dB
General
Power supply 108 to 240 VAC 50/60Hz
Power supply consumption 55 VA max.
Operating temperature 0 ºC to 40 ºC
Storage temperature -10 ºC to +70 ºC
Humidity Up to 90%
Dimensions 296.2 x 204.50 x 106 mm
Weight 1.7 Kg
