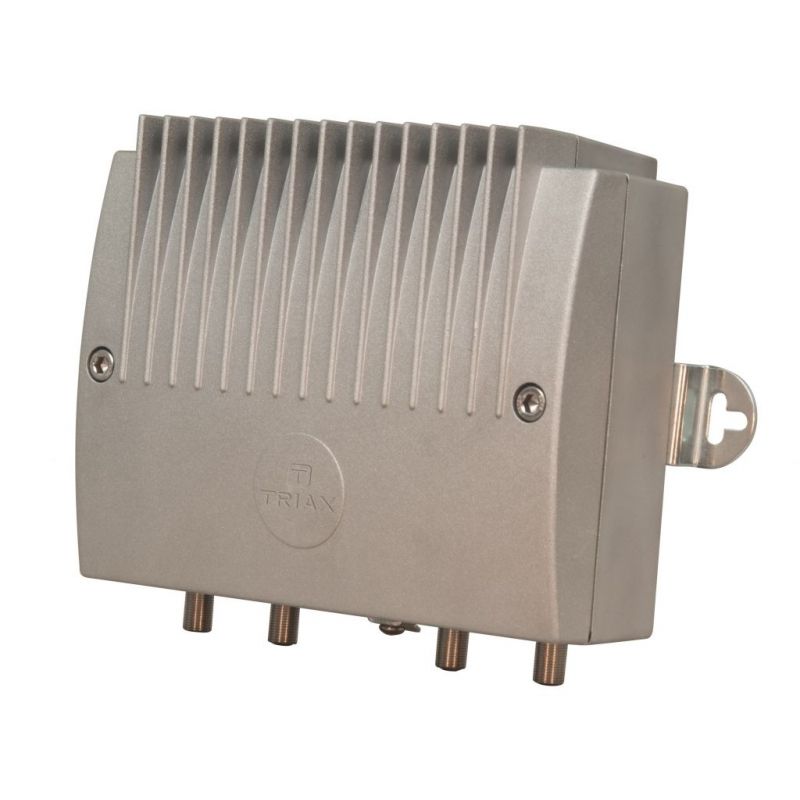

Triax GPV 950 L Distribution Amplifier 85-1006MHz Line fed

GPV 950 are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily. Switching of the basic gains enables to configure the amplifiers as line extender or as cascade amplifier in trunk position.

€525.67
Tax included
Reference triax-323174
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax GPV 950 L Distribution Amplifier 85...1006MHz Line fed. Triax 323174

Triax GPV 950 L Distribution Amplifier 85-1006MHz Line fed

€525.67

GPV 950 L are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily. Switching of the basic gains enables to configure the amplifiers as line extender in different configurations. All functional parts and setting elements are implemented on the printed board. Thus you do not need external accessories for configuration and operation of the amplifier in generally. The L type is line fed only via the RF input.

Main Features

  • One-board technology: all functionalities on one board implemented
  • Rotary switches in 1 dB steps for settings of attenuation and equalization
  • Downstream: 85...1006 MHz by max. output level 113 dBμV
  • Upstream: 5-65 MHz, max. output 120 dBμV (high load performance for DOCSIS 3.x)
  • Basic gain selectable via jumpers
  • Return path mode selectable: active / passive / off
  • Integrated cablesimulator
  • State of the art 1 GHz technology
  • Excellent and stable amplifier characteristics
  • Low power consumption because of high efficient switching PSUs
  • Extensive ESD and surge protection

Specifications

GPV 950 L
CHARACTERISTICS
Output level CSO @ 60 dB IMD (42 ch) flat 114/116 dBµV
Output level CSO @ 60 dB IMD (42 ch) Slope 0/7 dB 113/115 dBµV
Output level CTB @ 60 dB IMD (42 ch) flat 113/115 dBµV
Output level CTB @ 60 dB IMD (42 ch) Slope0/7 dB 113/115 dBµV
Output level return path 120 dBµV
FREQUENCY
Frequency range - Forward 87...1006 MHz
Frequency range 40/85...1006 MHz
Frequency range return path 5...65 MHz
Frequency response ± 1.0 dB
GAIN
Gain forward - Interstage 41/33 dB dB
Gain - Return path 32/26 /-2 dB
Noise figure - Forward (VHF I "off") 6,0 dB
Slope - Interstage DS 0/3/7/10, US 0/3/6/9 dB
LOSS
Attenuation forward - line equalizer at input 33 dB
Equalization 0...15 dB, 1 dB steps by rotary switches
RETURN LOSS
Return loss - Input (-1,5 dB / octave) >18 dB
Return loss - Output (-1,5 dB / octave) >18 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Certification CE, RoHS, Class A
Class II
LED indicator PSU green inside
Operating temperature range -25... +55 °C
AC Supply voltage 28-65 VAC via RF input VAC
Power Consumption (typ.) 15 W
Reference standards EN 50083-2, EN 60065, EN 60728-11, EN 60728-3
Insulation Class II
CONNECTORS
Connector Type F-female
Number of inputs 1
Number of outputs 1
RF connector - Test point input: bi-directional -20 dB
RF connector - Test point output: directional -20 dB
MECHANICAL
Colour silver
Product Depth 70 mm
Dimensions carton (H x D x W) 240x167x78 mm mm
Packaging Depth 0,080 m
Packaging Height 0,240 m
Total Weight 1,750 kg
Packaging Width 0,170 m
Main Material zinc die-cast enclosure
Net Weight 1,600 kg
Packing QTY 1
Tara Weight 0,150 kg
Packaging Volume 0,003 m3
Weight (kg) 1 kg
Weight net 1.3 kg kg
Product Width 180 mm
Product Height 145 mm
