SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 93SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2702 AND id_lang = 1 Spaun SMK 55123 F Multiswitch cascadable 5x12

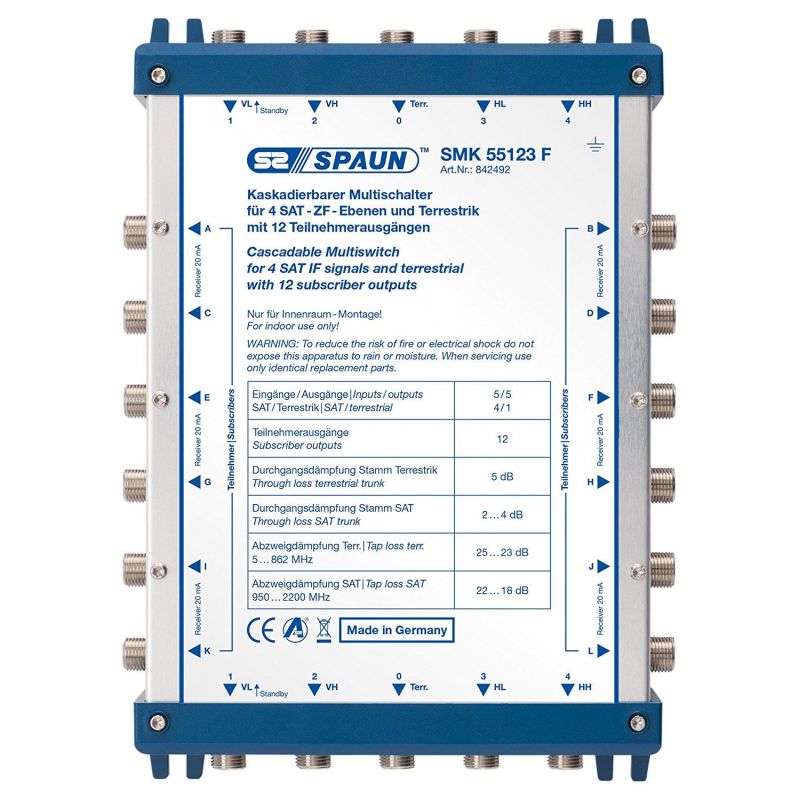

Spaun SMK 55123 F Multiswitch cascadable 5x12. Spaun 842492
search
  • Spaun SMK 55123 F Multiswitch cascadable 5x12. Spaun 842492

Spaun SMK 55123 F Multiswitch cascadable 5x12

Cascadable multiswitch for 4 SAT-IF signals and terrestrial with 12 subscriber outputs.

€152.46
Tax included
Reference spaun-smk55123f
Brand Spaun
Quantity
Out-of-Stock

Free shipping

You might also like

Delivery in 7 days, please contact us to confirm availability.

Cascadable multiswitch for 4 SAT-IF signals and terrestrial with 12 subscriber outputs.
(Can only be used in combination with a system basic unit SBK 55xx NFx)

SAT - IF

  • The changeover is effected by the LNB supply voltage or through the 22 kHz tone of the receiver via the HF cable.
  • Standby signaling via master line 1.
  • Standby control.
  • Ground clamp.

Terrestrial

  • Backward-compatible, passive terrestrial.

Specs

Model
Art. Number		 SMK 5583 F SMK 55123 F SMK 55162 F
Frequency range 5-2200 MHZ 5-2200 MHZ 5-2200 MHZ
Inputs 4 SAT + 1 TERR 4 SAT + 1 TERR 4 SAT + 1 TERR
Outputs 4 SAT + 1 TERR 4 SAT + 1 TERR 4 SAT + 1 TERR
Subscriber outputs 8 12 16
Through loss
terrestrial		 6 dB 5 ... 6 dB 5 ... 9 dB
Throug loss
satellite		 2 ... 4,5 dB 4 ... 7,5 dB 4 ... 7,5 dB
Tap loss terrestrial 20 ... 18 dB 23 ... 26 dB 25 ... 26 dB
Tap loss satellite 18 ... 15 dB 18 ... 15,5 dB 18 ... 16,5 dB
Current consumption
for each receiver max.		 max. 60 mA max. 60 mA max. 60 mA
Isolation
Trunk / trunk		 > 30 dB > 30 dB > 30 dB
Isolation
Receiver / receiver		 26 dB 26 dB 26 dB
DC - through trunk
0; 2 ... 8		 2A 2A 2A
Ambient temperature -20...+50°C -20...+50°C -20...+50°C
Dimensions mm 140 x 153 x 38 130 x 224 x 38 130 x 224 x 38
