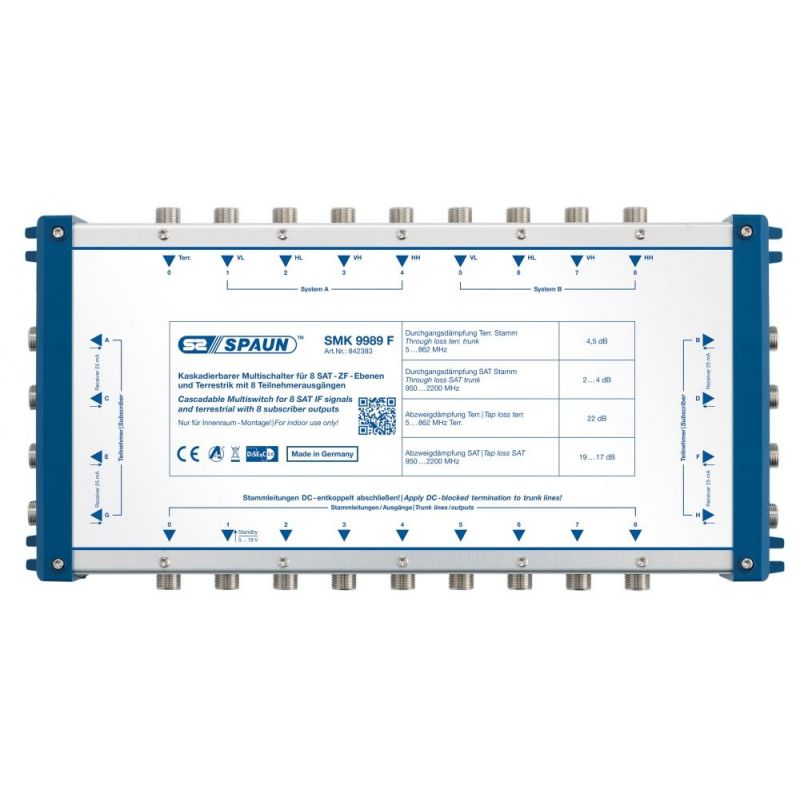

Spaun SMK 9989 F Multiswitch cascadable 9x8

Cascadable multiswitch for 8 SAT-IF signals and terrestrial with 8 subscriber outputs

€150.77
Tax included
Reference spaun-smk9989f
Brand Spaun
Quantity
Out-of-Stock

Free shipping

You might also like

Delivery in 7 days, please contact us to confirm availability.

Cascadable multiswitch for 8 SAT-IF signals and terrestrial with 8 subscriber outputs
(Can only be used in combination with a system basic unit SBK 55xx NFx)

SAT - IF

  • The changeover is effected by the LNB supply voltage or through the 22 kHz tone of the receiver via the HF cable.
  • Standby signaling via master line 1.
  • Standby control.
  • Ground clamp.

Terrestrial

  • Backward-compatible, passive terrestrial.

Specs

Model
Art. Number		 SMK 9989 F SMK 99129 F SMK 99169 F
Frequency range 5-2200 MHZ 5-2200 MHZ 5-2200 MHZ
Inputs 8 SAT + 1 TERR 8 SAT + 1 TERR 8 SAT + 1 TERR
Outputs 8 SAT + 1 TERR 8 SAT + 1 TERR 8 SAT + 1 TERR
Subscriber outputs 8 12 16
Through loss
terrestrial		 3,5 ... 4,5 dB 3,5 ... 5 dB 3,5 ... 5 dB
Throug loss
satellite		 2 ... 4,5 dB 4 ... 8 dB 4 ... 8 dB
Tap loss terrestrial 17 ... 23 dB 20 ... 24 dB 20 ... 25 dB
Tap loss satellite 21 ... 15 dB 22 ... 16 dB 22 ... 16 dB
Current consumption
for each receiver max.		 max. 25 mA max. 25 mA max. 25 mA
Isolation
Trunk / trunk		 > 30 dB > 30 dB > 26 dB
Isolation
Receiver / receiver		 > 30 dB > 30 dB > 26 dB
DC - through trunk
0; 2 ... 8		 2A 2A 2A
Ambient temperature -20...+50°C -20...+50°C -20...+50°C
Dimensions mm 264 x 130 x 39 264 x 130 x 39 264 x 130 x 39
