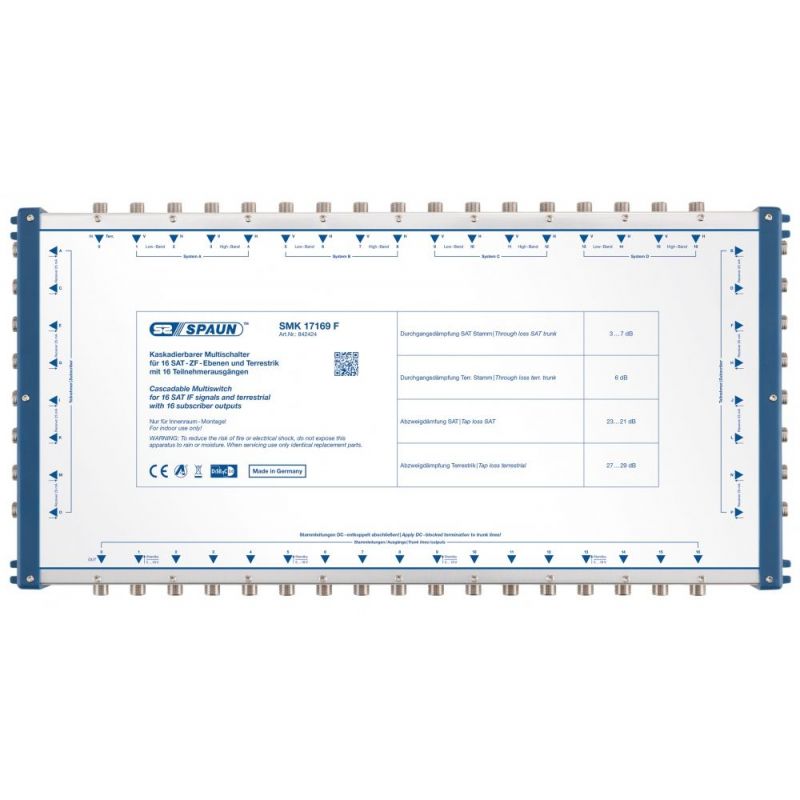

Spaun SMK 17169 F Multiswitch cascadable 17x16

Cascadable multiswitch for 16 SAT-IF signals and terrestrial with 16 subscriber outputs

€474.32
Tax included
Reference spaun-smk17169f
Brand Spaun
Quantity
Out-of-Stock

Free shipping

You might also like

Delivery in 7 days, please contact us to confirm availability.

Cascadable multiswitch for 16 SAT-IF signals and terrestrial with 16 subscriber outputs
(Can only be used in combination with a system basic unit SBK 55xx NFx)

SAT - IF

  • The changeover is effected by the LNB supply voltage or through the 22 kHz tone of the receiver via the HF cable.
  • Standby signaling via master line 1.
  • Standby control.
  • Ground clamp.

Terrestrial

  • Backward-compatible, passive terrestrial.

Specs

Model
Art. Number		 SMK 17089 F SMK 17129 F SMK 17169 F
Frequency range 5-2200 MHZ 5-2200 MHZ 5-2200 MHZ
Inputs 16 SAT + 1 TERR 16 SAT + 1 TERR 16 SAT + 1 TERR
Outputs 16 SAT + 1 TERR 16 SAT + 1 TERR 16 SAT + 1 TERR
Subscriber outputs 8 12 16
Through loss
terrestrial		 6,5 ... 6 dB 6,5 ... 6 dB 6,5 ... 6 dB
Throug loss
satellite		 2 ... 5 dB 4 ... 8 dB 4 ... 8 dB
Tap loss terrestrial 22 ... 27 dB 20 ... 24 dB 21 ... 25 dB
Tap loss satellite 20 ... 17 dB 22 ... 16 dB 22 ... 16 dB
Current consumption
for each receiver max.		 max. 25 mA max. 25 mA max. 25 mA
Isolation
Trunk / trunk		 > 30 dB > 30 dB > 26 dB
Isolation
Receiver / receiver		 > 30 dB > 30 dB > 26 dB
DC - through trunk
0; 2 ... 8		 2A 2A 2A
Ambient temperature -20...+50°C -20...+50°C -20...+50°C
Dimensions mm 426 x 132 x 39 426 x 132 x 39 426 x 211 x 39
