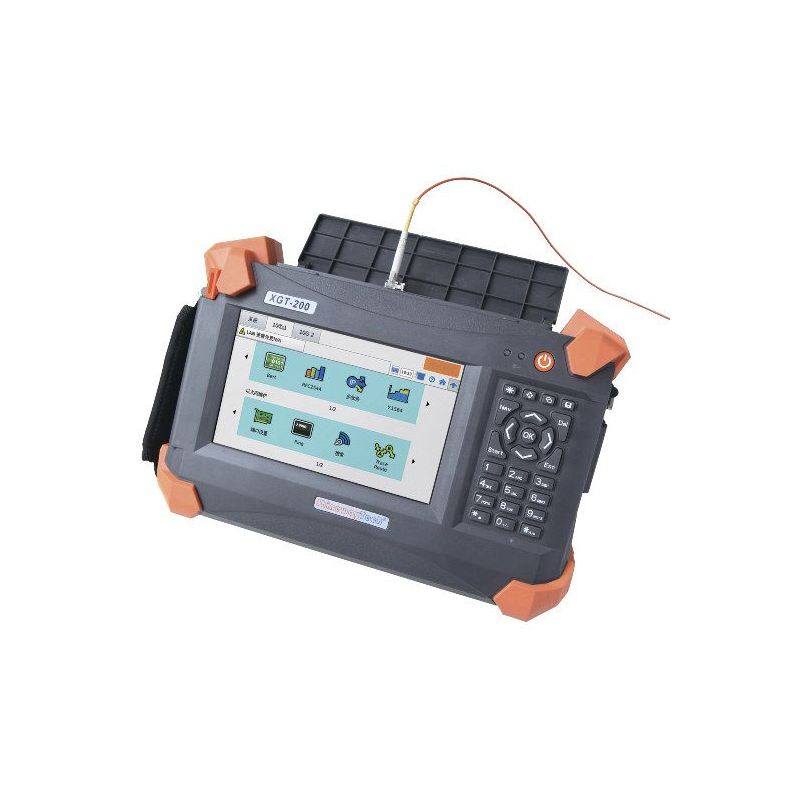

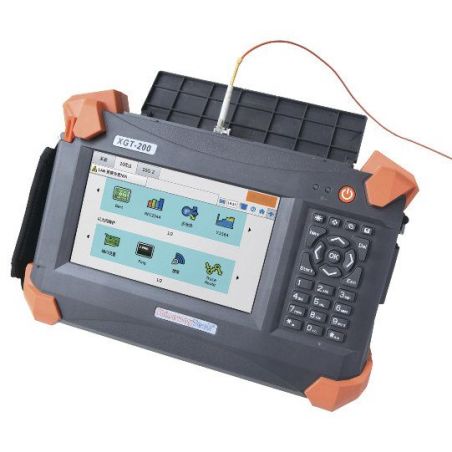

ShinewayTech XGT-200 10 Gigabit Ethernet Tester CAT-6/6A/7
XGT-200 have two 10/100/1000Mb/s RJ45 , two 100/1000M SFP and two 10Gbps SFP+ it can generate test profession streams that you need and analyze them ,then provide the test result. XGT-200 provide install and maintain services and activate new profession service.
€9,951.83
€15,796.55
Save 37%
Tax included
Reference
triax-XGT-200
Brand
ShinewayTech
ShinewayTech XGT-200 10 Gigabit Ethernet Tester CAT-6/6A/7
€9,951.83
€15,796.55
Save 37%
The Ethernet test engine XGT200 provide a complete test for next generation Ethernet solution. There are many different test modules, it can help clients to verify the performance of their Ethernet. XGT-200 have two 10/100/1000Mb/s RJ45 , two 100/1000M SFP and two 10Gbps SFP+ it can generate test profession streams that you need and analyze them ,then provide the test result. XGT-200 provide install and maintain services and activate new profession service. XGT-200 can provide many kinds of test functions, it can help you to control and know the quality of your Ethernet.
Main features
- Smart and durable, field application ready
- HD color touch screen, sun readable
- User-friendly user interface
- PC remote control
- Test profiles and data management, USB/FTP transfer
- Lithium battery up to 4 hours continuous testing
Functions
- 10GE SFP+ x2, 10/100/1000BASE-T RJ45 x2,100/1000BASE-X SFP x2
- 10M~10Gb/s bandwidth, LAN and WAN mode
- RFC2544 and Y.1564 test
- Layer 1/2/3/4 BERT test
- Multi-stream traffic generation and analysis
- Packet capture
- VLAN and VLAN Q-in-Q test
- MPLS test with multiple MPLS tags
- ODT test
- CoS and ToS/DSCP priority testing
- Statistical analysis report
- Ethernet and advanced IP connectivity test
- Intelligent detection and remote control loopback test
Specs
| OPTICAL INTERFACE | |||||||
| Available wavelengths（nm） | Two ports：100M and GigE（850、1310和1550） | ||||||
| 100 Base-FX |
100 Base-LX |
1000 Base-SX |
1000 Base-LX |
1000 Base-ZX |
1000 Base-BX10-D |
1000 Base-BX10-U |
|
| wavelength（nm） | 1310 | 1310 | 850 | 1310 | 1550 | Tx：1490 Rx：1310 |
Tx：1310 Rx：1490 |
| Tx level（dBm） | -20~-15 | -15~-8 | -9~-3 | -9.5~-3 | 0~5 | -9.5~-3 | -9.5~-3 |
| Rx level sensitivity（dBm） | -31 | -28 | -20 | -22 | -22 | -20 | -20 |
| Maximum reach | 2Km | 15Km | 550m | 10Km | 80Km | 10Km | 10Km |
| transmission bit rate（Gbit/s） | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 |
| Reception bit rate（Gbit/s） | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 |
| Tx operational wavelength range（nm） | 1280-1380 | 1261-1360 | 830-860 | 1270-1360 | 1540-1570 | 1480-1550 | 1260-1360 |
| measurement | |||||||
| Frequency （ppm） | ±4.6 | ±4.6 | ±4.6 | ±4.6 | ±4.6 | ±15 | ±15 |
| Optical power（db） | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Maximum Rx before damage（dBm） | 3 | 3 | 6 | 6 | 6 | 6 | 6 |
| Connector | LC | LC | LC | LC | LC | LC | LC |
| Transceiver type | SFP | SFP | SFP | SFP | SFP | SFP | SFP |
| SFP+（10G） | |||
| 10G Base-SR/SW | 10G Base-LR/LW | 10G Base-ER/EW | |
| Wavelength （nm） | 850 | 1310 | 1550 |
| Tx level（dBm） | -5to-1 | -8 to 0.5 | -4.7 to 4.0 |
| Rx level sensitivity（dBm） | -11.1 | -12.6 | -14.1 |
| Maximum reach | 300m | 10Km | 40Km |
| Tx bit rate（Gbit/s） | 9.95 to 10.03 | 9.95 to 10.03 | 9.95 to 10.03 |
| Rx bit rate（Gbit/s） | 9.95 to 10.03 | 9.95 to 10.03 | 9.95 to 10.03 |
| Tx operation wavelength range（nm） | 840 to 860 | 1260 to 1355 | 1530 to 1565 |
| Measurement accuracy | |||
| Frequency （ppm） | ±4.6 | ±4.6 | ±4.6 |
| Maximum rx before（dBm） | 6 | 5 | 5 |
| Connector | LC | LC | LC |
| Transceiver type | SFP+ | SFP+ | SFP+ |
| RJ45 | |||
| Two ports：10/100 Base-T half/full duplex、1000 Base-T full duplex automatic or manual detection of straight/crossover cable | |||
| 10 Base-T | 100 Base-T | 1000 Base-T | |
| Tx bit rate | 10 Mbit/s | 125 Mbit/s | 1 Gbit/s |
| Tx accuracy（ppm） | ±4.6 | ±4.6 | ±4.6 |
| Duplex mode | Hall and full duplex | Hall and full duplex | full duplex |
| Connector | RJ-45 | RJ-45 | RJ-45 |
| Maximum （m） | 100 | 100 | 100 |
| GENERAL SPECIFICATIONS | |||
| screen | 7 inch color LED touch screen (resolution 960*480) | ||
| Data storage | SD card（8G） | ||
| interface | USB，RJ45 | ||
| Battery | lithium battery（4400mAh） | ||
| Battery life | 4h | ||
| Operating temperature | -10～+50℃ | ||
| Storage temperature | -10～+70℃ | ||
| Operating humidity | 10%-90% | ||
| Storage humidity | 5%-95% | ||
| Size | 282*186*75mm | ||
| Weight | 2.9Kg | ||
