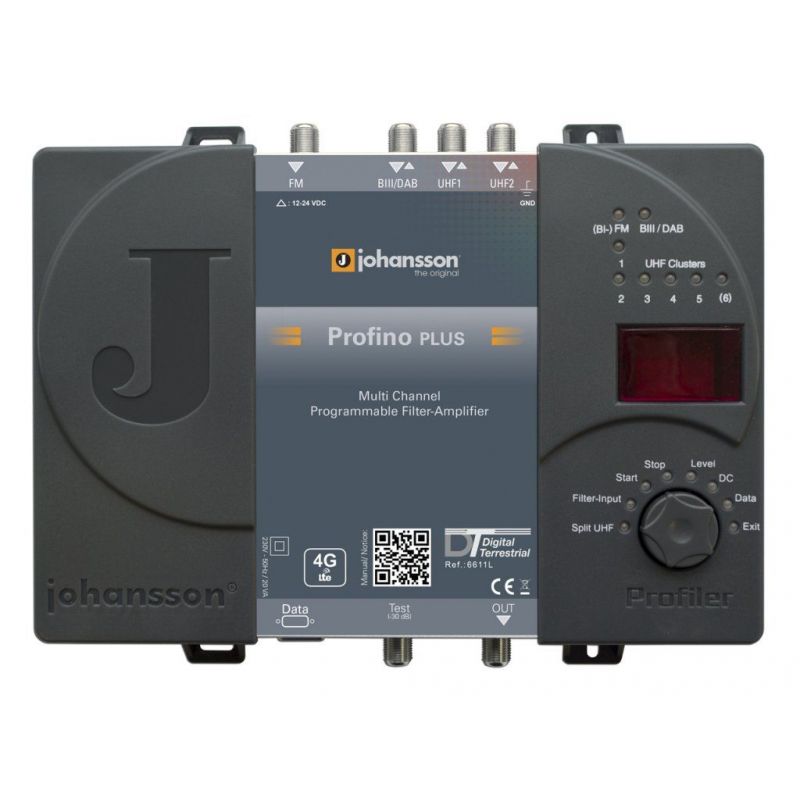

Johansson 6611L Profino Plus LTE Programmable terrestrial filter amplifier 4 inputs LTE

This product has a new version available that replaces it, the JH6710.

Programmable filter amplifier: 4 inputs: FM / BIII-DAB / 2x UHF 6 clusters / 12-24V remote power.

€243.21 €363.00 Save 33%
Tax included
Reference johansson-6611l
Brand Johansson
Quantity
Out-of-Stock

Free shipping

You might also like

Main Features

  • Designed for both analogue and digital SD/HD channels
  • 4 inputs: FM, BIII/DAB and 2 UHF inputs splitted over 6 UHF programmable clusters
  • UHF clusters can have 1 to 7 channels bandwidth
  • Channel 21-60, 4G-LTE compatible
  • Easy programming by using one rotary/push button viewed on 2 digits display and LEDs for each cluster and each input
  • Unit can be locked by security code
  • "Copy" function in order to transfer all settlements from one unit to another reducing time of installation
  • High selectivity filters
  • Low noise and high gain split band amplifiers
  • High UHF input levels up to 105 dBμV by switchable 20 dB input amplifier
  • Attenuator with 1 dB step for accurate equalization
  • Selectable remote power on BIII/DAB and UHF inputs
  • 12 - 24V selectable remote power
  • -30 dB test output

Specs

6611L
Inputs - FM BIII/DAB UHF1 UHF2
Frequency range MHz 88-108 174-240 470-790
Filter bandwidth - - - 8-56 (1to 7 channels / cluster)
Cluster configuration - - - 6 0
4 2
3 3
Gain dB 35 35 45
Attenuator dB 20 20 30
Noise figure dB 5 5 6
Max. input level dBµV 80 80 105
Max. output level* dBµV 116 116 116
Selectivity dB - 15 dB/10 MHz 10 dB/10 MHz
Return loss dB >10 >10 >10 >10

Selectable remote power

12 - 24V (100mA in total)

 mA - Yes Yes Yes
Test Output dB -30
Data transfer - DSUB9 connector
Power supply - 230V~ / 20A
Operating temperature °C -5 to +50
Dimensions mm 231 x 185 x 53
