SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 76SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2737 AND id_lang = 1 Johansson 6600 Profiler Programmable terrestrial filter amplifier 6 inputs LTE
  • -33%
Johansson 6600 Profiler Programmable terrestrial filter amplifier 6 inputs LTE
search
  • Johansson 6600 Profiler Programmable terrestrial filter amplifier 6 inputs LTE
  • Johansson 6600 Profiler Programmable terrestrial filter amplifier 6 inputs LTE

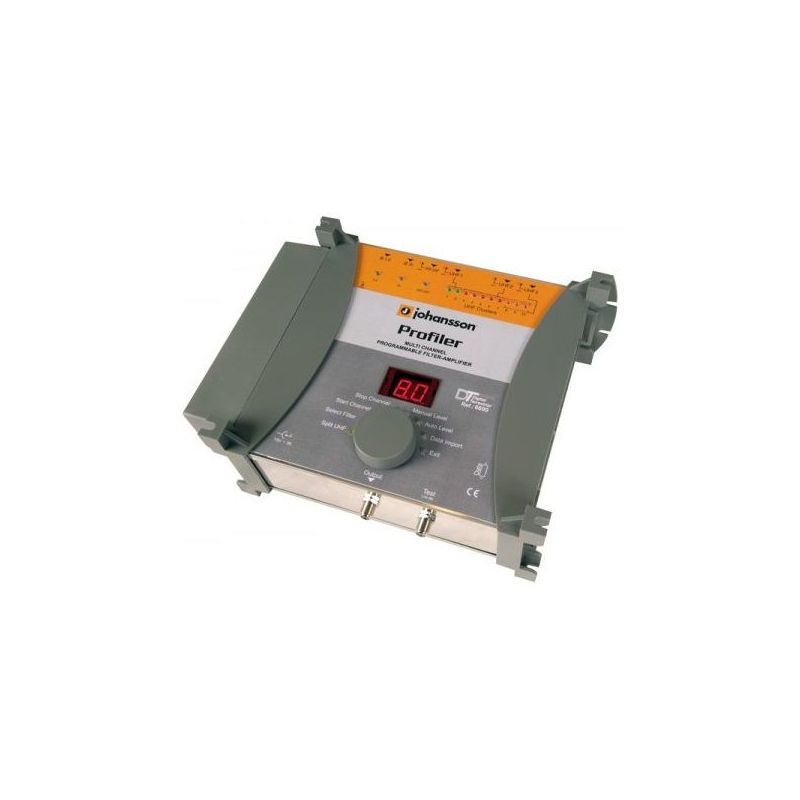

Johansson 6600 Profiler Programmable terrestrial filter amplifier 6 inputs LTE

Programmable filter amplifier: 6 inputs 1x BI-FM / 1x BIII / 1x VHF-UHF / 3 x UHF 10 Clusters / 24 V remote power

€316.17 €471.90 Save 33%
Tax included
Reference johansson-6600
Brand Johansson
Quantity
Out-of-Stock

Free shipping

All profiler models have an automatic signal level equalizer, helping you to find the optimal gain for each filter.
The profilers are equipped with a display, indication LEDs and a rotary button to make the configuration an easy task.
Thanks to our memory-stick (ref. 6604), settings can easily be transferred from one unit to another. To avoid
unauthorized people changing the settings, all Profiler products can be locked with a security code.

Features

  • 6 inputs: BI-FM/BIII/VHF-UHF/3 x UHF (UK version : FM/BIII/VHF-UHF/3 x UHF)
  • 10 UHF programmable clusters from 1 to 7 channels bandwidth.
  • high gain (55 dB) and high power (120 dBμV)
  • 24 V remote power on UHF and VHF-UHF inputs (12V for 6600UK and 6600A)
  • VHF-UHF split band amplifier with inter-stage attenuators
  • -30 dB test output

Specifications

Johansson 6600
Inputs - BI-FM BIII/DAB VHF-UHF UHF1 UHF2 UHF3
Frequency range MHz 47-108 174-240 47-240 + 470-862 470-862
Filter bandwidth - - 1-7 Ch. (8-56 MHz)
Cluster configuration - - 2 8 0
2 7 1
2 5 3
Gain dB 35 40 40 55
Gain adjustment dB 20 20 20 30
General UHF level adjustment dB - +10 to -9
Noise figure dB 5 5 5 6
Max. input level dBµV 75 85 80 105
Max. output level* dBµV 115 115 VHF: 116 UHF: 116 116
Selectivity dB/Ch±2 - 15
Return loss dB >10
LNA remote voltage V - 24***
LNA remote current A - 100 mA total
Outputs - 1 x TV output
1 x Test output: -30 dB
Data transfer - DSUB9 connector
Power supply - 230-240 V~ / 15 VDC / 35 VA
Operating temperature °C -5 to +50
Dimensions mm 265 x 220 x 95

Additional info

Downloads / Manuals
