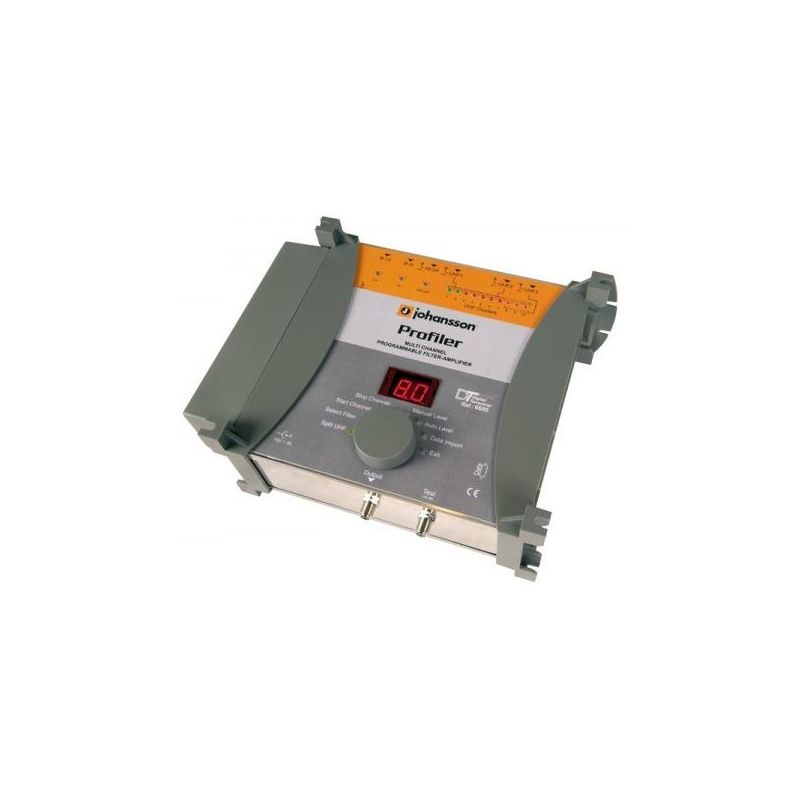

Johansson 6600 Profiler Amplificador terrestre programável 6 entradas LTE
search
  • Johansson 6600 Profiler Amplificador terrestre programável 6 entradas LTE
  • Johansson 6600 Profiler Amplificador terrestre programável 6 entradas LTE

Johansson 6600 Profiler Amplificador terrestre programável 6 entradas LTE

Central programable 6600: 6 entradas 1x BI-FM / 1x BIII / 1x VHF-UHF / 3 x UHF 10 Clusters / 24 V Alimentación remota

316,17 € 471,90 € Poupe 33%
Com IVA
Referência johansson-6600
Marca Johansson
Quantidade
Esgotado

Free shipping

Todos os modelos de perfil têm um equalizador de nível de sinal automático, ajudando você a encontrar o ganho ótimo para cada filtro.
Os perfiladores estão equipados com uma tela, indicadores de indicação e um botão rotativo para tornar a configuração uma tarefa fácil.
Graças ao nosso memory-stick (referência 6604), as configurações podem ser facilmente transferidas de uma unidade para outra. Evitar
Pessoas não autorizadas que alteram as configurações, todos os produtos do Profiler podem ser bloqueados com um código de segurança.

Características

  • 6 entradas: BI-FM / BIII / VHF-UHF / 3 x UHF (versão BRITÂNICA: FM / BIII / VHF-UHF / 3 x UHF)
  • 10 aglomerados programáveis UHF de 1 a 7 canais de largura de banda.
  • Alto ganho (55 dB) e alta potência (120 dBμV)
  • 24 V de energia remota nas entradas UHF e VHF-UHF (12V para 6600UK e 6600A)
  • Amplificador de faixa dividida VHF-UHF com atenuadores inter-estágio
  • Saída de teste de -30 dB

Especificações

Johansson 6600
Inputs - BI-FM BIII/DAB VHF-UHF UHF1 UHF2 UHF3
Frequency range MHz 47-108 174-240 47-240 + 470-862 470-862
Filter bandwidth - - 1-7 Ch. (8-56 MHz)
Cluster configuration - - 2 8 0
2 7 1
2 5 3
Gain dB 35 40 40 55
Gain adjustment dB 20 20 20 30
General UHF level adjustment dB - +10 to -9
Noise figure dB 5 5 5 6
Max. input level dBµV 75 85 80 105
Max. output level* dBµV 115 115 VHF: 116 UHF: 116 116
Selectivity dB/Ch±2 - 15
Return loss dB >10
LNA remote voltage V - 24***
LNA remote current A - 100 mA total
Outputs - 1 x TV output
1 x Test output: -30 dB
Data transfer - DSUB9 connector
Power supply - 230-240 V~ / 15 VDC / 35 VA
Operating temperature °C -5 to +50
Dimensions mm 265 x 220 x 95
