Copper-copper cable T100 white PVC (250m)
Coax cable T100 + CU / CU PVC A BL.250m
€1.15
Tax included
Reference
televes-214104
Brand
Televes
Copper-copper cable T100 white PVC (250m)
€1.15
Coax cable T100 + CU / CU PVC A BL.250m
Specifications
| Reference | 214104 | ||
| INNER CONDUCTOR - BRAID COMPOSITION | COPPER - COPPER | ||
| Televes Model | T-100 | ||

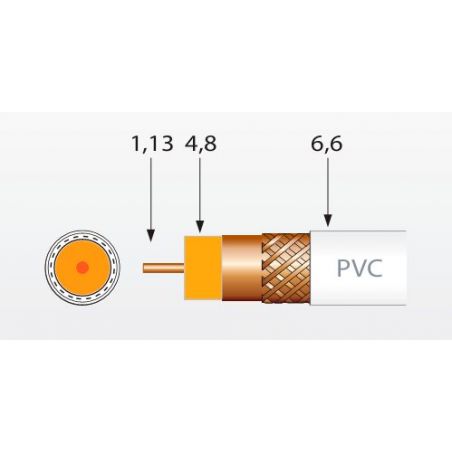

| Inner Conductor |
Ø | mm | 1,13 |
| material | - | Copper | |
| resistance | Ω/Km | 20 | |
| Dielectric | Ø | mm | 4,8 |
| material | - | Foam Polyethylene | |
| Overlapping shielding foil | composition | Copper + Polyester | |
| Braid | resistance | Ω/Km | <12 |
| material | - | Copper | |
| Antimigrating film | Yes | ||
| Petrol jelly | No | ||
| Outer sheath | Ø | mm | 6,6 |
| color | White | ||
| material | - | PVC | |
| Minimum bending radius | mm | 33 | |
| Screening efficiency | dB | >75 | |
| Capacitance | pF/m | 55 | |
| Environmental use | Indoor | ||
| Packaging | meters/reel | m | 250 |
| Frequency Attenuation (MHz) |
200 | dB/m |
0,08 |
| 500 | 0,12 | ||
| 800 | 0,15 | ||
| 1000 | 0,18 | ||
| 1350 | 0,21 | ||
| 1750 | 0,24 | ||
| 2050 | 0,27 | ||
| 2300 | 0,28 | ||
