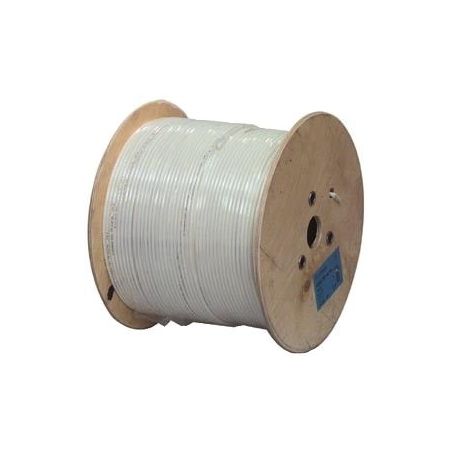

Triax KOKA 17 VATC 50m RG6 white
It is a high quality cable for indoor installations. The wide frequency range allows transporting signals from television, radio, satellite receivers, etc., if the signal comes from satellite, terristrial antenna or cable. This cable is designed with a bare copper core conductor (Cu), which offers high performance over long distances.
€375.10
Tax included
Reference
triax-198017500
Brand
Triax
Triax KOKA 17 VATC 50m RG6 white
€375.10
It is a high quality cable for indoor installations. The wide frequency range allows transporting signals from television, radio, satellite receivers, etc., if the signal comes from satellite, terristrial antenna or cable. This cable is designed with a bare copper core conductor (Cu), which offers high performance over long distances. Due to the injected gas foam, which is far superior to chemical foam, the copper conductor carries the signals without great losses. A good quality conductor and appropriate gas injection the propagation ratio is greater than 80%
Specifications
| INFORMATION | |
|---|---|
| EAN Number | 3700113425581 |
| CONSTRUCTION | |
| Dielectric - dimension | 4.80 ± 0.10 mm |
| Dielectric - material | FPE |
| Jacket – dimension | 6.8 ± 0.2 mm |
| Jacket - material | PVC |
| Shield (First) foil 1 – material | Al/foil P/Al |
| Shield (First) foil 1 – overlap | 20 |
| Shield (Second) – braid coverage | > 43 % |
| Shield (Second) – braid material | Al |
| Inner conductor - material | Cu |
| Inner conductor - dimension | 1.13 ± 0.02 mm |
| SHIELDING | |
| Screening attenuation @ 1000-2000 MHz | > 65 dB |
| Screening attenuation @ 2000-3000 MHz | > 55 dB |
| Screening attenuation @ 30-1000 MHz | > 75 dB |
| TRANSFER IMPEDANCE | |
| Transfer Impedance @ 5-30 MHz | < 15 mΩ/m |
| LOSS | |
| Attenuation (at 20°C) @ 5 MHz | 1.5 dB |
| Attenuation (at 20°C) @ 50 MHz | 4.1 dB |
| Attenuation (at 20°C) @ 200 MHz | 8.0 dB |
| Attenuation (at 20°C) @ 470 MHz | 13.5 dB |
| Attenuation (at 20°C) @ 800 MHz | 17.0 dB |
| Attenuation (at 20°C) @ 862 MHz | 18.0 dB |
| Attenuation (at 20°C) @ 1000 MHz | 19.2 dB |
| Attenuation (at 20°C) @ 1350 MHz | 22.5 dB |
| Attenuation (at 20°C) @ 1750 MHz | 26.0 dB |
| Attenuation (at 20°C) @ 2150 MHz | 30.0 dB |
| Attenuation (at 20°C) @ 2400 MHz | 30.8 dB |
| Attenuation (at 20°C) @ 3000 MHz | 35.3 dB |
| RETURN LOSS | |
| Structural return loss @ 30-470 MHz | > 21 dB |
| Structural return loss @ 470-1000 MHz | > 20 dB |
| Structural return loss @ 1000-2000 MHz | > 18 dB |
| Structural return loss @ 2000-3000 MHz | > 16 dB |
| ELECTRICAL | |
| Capacity | 52 ± 1 pF/m |
| Outer DC resistance | < 65 Ohm/km |
| Velocity ratio | 82 % |
| Impedance | 75 ± 3 Ω |
| Inner DC resistance | < 17.2 Ohm/km |
| OPERATIONAL | |
| Class | B |
| MECHANICAL | |
| Total Weight | 0,255kg |
| Length (m) | 500 m |
| Net Weight | 25 kg |
| Colour | White |
