SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5306 AND id_lang = 2 Triax KOKA 17 VATC 500m RG6 blanc

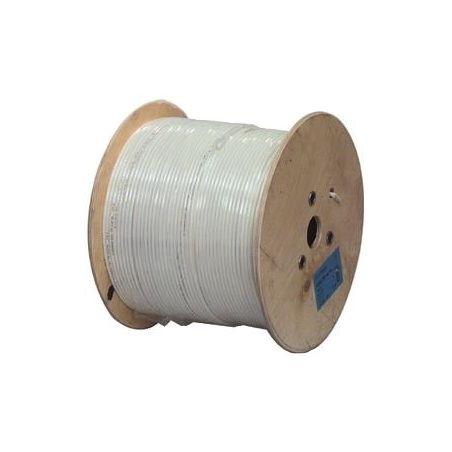

Triax KOKA 17 VATC 500m RG6 blanc
search
  • Triax KOKA 17 VATC 500m RG6 blanc

Triax KOKA 17 VATC 500m RG6 blanc

C'est un câble de haute qualité pour les installations intérieures. La large gamme de fréquences permet de transporter des signaux de la télévision, de la radio, des récepteurs satellites, etc., si le signal provient d'un satellite, d'une antenne de terrain ou d'un câble. Ce câble est conçu avec un conducteur en cuivre nu (Cu), qui offre de hautes performances sur de longues distances.

375,10 €
TTC
Référence triax-198017500
Marque Triax
Quantité
Derniers articles en stock

Free shipping
Triax KOKA 17 VATC 500m RG6 blanc

Triax KOKA 17 VATC 500m RG6 blanc

375,10 €

C'est un câble de haute qualité pour les installations intérieures. La large gamme de fréquences permet de transporter des signaux de la télévision, de la radio, des récepteurs satellites, etc., si le signal provient d'un satellite, d'une antenne de terrain ou d'un câble. Ce câble est conçu avec un conducteur en cuivre nu (Cu), qui offre de hautes performances sur de longues distances. En raison de la mousse de gaz injectée, qui est de loin supérieure à la mousse chimique, le conducteur en cuivre transporte les signaux sans grandes pertes. Conducteur de bonne qualité et injection de gaz appropriée, le taux de propagation est supérieur à 80%

Spécifications

INFORMATION
EAN Number 3700113425581
CONSTRUCTION
Dielectric - dimension 4.80 ± 0.10 mm
Dielectric - material FPE
Jacket – dimension 6.8 ± 0.2 mm
Jacket - material PVC
Shield (First) foil 1 – material Al/foil P/Al
Shield (First) foil 1 – overlap 20
Shield (Second) – braid coverage > 43 %
Shield (Second) – braid material Al
Inner conductor - material Cu
Inner conductor - dimension 1.13 ± 0.02 mm
SHIELDING
Screening attenuation @ 1000-2000 MHz > 65 dB
Screening attenuation @ 2000-3000 MHz > 55 dB
Screening attenuation @ 30-1000 MHz > 75 dB
TRANSFER IMPEDANCE
Transfer Impedance @ 5-30 MHz < 15 mΩ/m
LOSS
Attenuation (at 20°C) @ 1000 MHz 19.2 dB
Attenuation (at 20°C) @ 200 MHz 13.5 dB
Attenuation (at 20°C) @ 2400 MHz 30.8 dB
Attenuation (at 20°C) @ 470 MHz 13.5 dB
Attenuation (at 20°C) @ 5 MHz 1.5 dB
Attenuation (at 20°C) @ 862 MHz 18.0 dB
RETURN LOSS
Structural return loss @ 30-470 MHz > 21 dB
Structural return loss @ 470-1000 MHz > 20 dB
Structural return loss @ 1000-2000 MHz > 18 dB
Structural return loss @ 2000-3000 MHz > 16 dB
ELECTRICAL
Capacity 52 ± 1 pF/m
Outer DC resistance < 65 Ohm/km
Velocity ratio 82 %
Impedance 75 ± 3 Ω
Inner DC resistance < 17.2 Ohm/km
OPERATIONAL
Class B
MECHANICAL
Total Weight 0,225 kg
Length (m) 500 m
Net Weight 25 kg
Colour White
