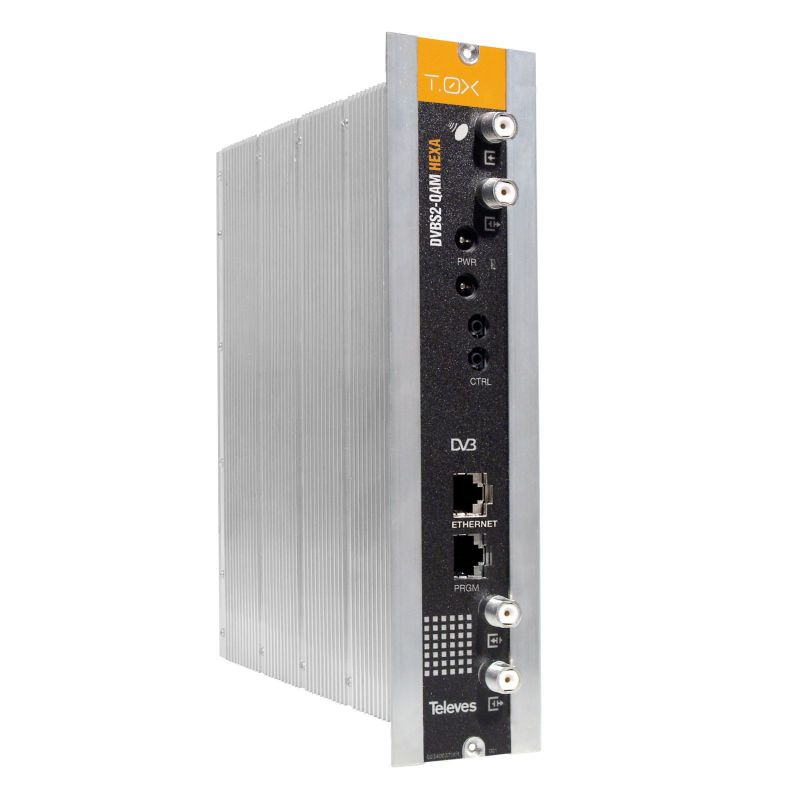

Transmodulator Hexa DVBS/S2 - DVBC (QAM Annex A) Televes
Transmodulator that generates six QAM multiplexes (DVB-C) from services available on six SAT TV transponders. The inputs can be bridged or independent. In this last case, each TVSAT demodulator can be connected to any of the two inputs. Televes 564501
€2,591.82
Tax included
Reference
televes-564501
Brand
Televes
Transmodulator Hexa DVBS/S2 - DVBC (QAM Annex A) Televes
€2,591.82
Transmodulator that generates six QAM multiplexes (DVB-C) from services available on six SAT TV transponders. The inputs can be bridged or independent. In this last case, each TVSAT demodulator can be connected to any of the two inputs.
Stands out for
- Provides overlap information, constellation accommodation and input SNR
- Very optimized consumption: allows to make very compact and reduced headers with a large number of services
- Remotely controllable with the CDC (Head Control)
Features
- Insertion of null packages ("Stuffing"), allows faster scanning by the receiver (STB)
- Direct digital conversion
Specifications
| INPUT SAT | SAT | Input frequency | MHz | 950...2150 |
| Frequency steps | 1 | |||
| Entry level | dBμV | 49 - 84 | ||
| Losses of the input loop | dB | ≤ 1.5 | ||
| LNB power | Vdc | 13V/17V/ OFF - 22KHz (ON/OFF) | ||
| Return losses | dB | > 10 | ||
| Input impedance | Ω | 75 | ||
| DVB-S | Symbol rate (Modulation) | Mbaud | 2 - 42.5 (QPSK) | |
| Internal Convolutional Code (FEC) | Viterbi (1/2, 2/3, 3/4, 5/6, 7/8) | |||
| External Convolutional Code (FEC) | RS (188/204) | |||
| Roll-Off Factor | % | 35 | ||
| DVB-S2 | Symbol rate (Modulation) | Mbaud | 10 - 30 (QPSK, 8PSK) | |
| Internal Convolutional Code (FEC) | LDPC (1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10) | |||
| External Convolutional Code (FEC) | BCH (Bose-Chaudhuri-Hocquenghem) | |||
| Factor Roll-Off | % | 20, 25, 35 | ||
| SALIDA DVB-C | QAM | Modulation (Constellation) | 16, 32, 64, 128, 256QAM | |
| Symbol speed | Mbaud | 1 - 7.2 | ||
| Scrambling | DVB EN 300429 | |||
| Interleaving | DVB EN 300429 | |||
| Convolutional code (FEC) | RS (188, 204) | |||
| Roll-Off Factor | % | 15 | ||
| PCR correction | Yes | |||
| Spectrum | Normal, Inverted | |||
| Bandwidth | MHz | 8.3 max. | ||
| RF | Output frequency | MHz | 46...999 | |
| Frequency steps | KHz | 250 | ||
| Maximum output level | dBμV | 90 | ||
| Regulatory margin | dB | >15 | ||
| Passage losses | ≤ 1.5 | |||
| Return losses | > 12 typ. | |||
| Output impedance | Ω | 75 | ||
| GENERAL | Feeding | Vdc | 24 | |
| Consumption | mA | 1000 (0 LNB); 1300 (1 LNB) | ||
| Protection index | IP | 20 | ||
