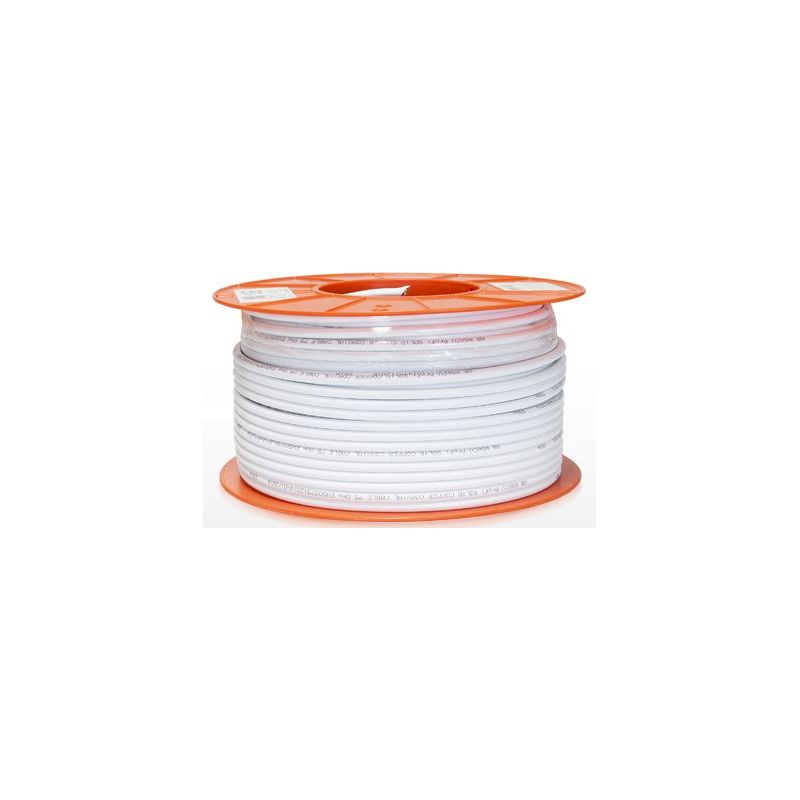

100m coil coaxial cable and live copper coil RG6CU
Coil of 100 meters of coaxial cable. Materials: copper and live copper mesh. Impedance 75 ± 3. Speed of propagation 0.83. Loss of return ≥ dB 20. Class of reaction to fire Eca.
€67.76
Tax included
Reference
ab-rg6cu-100
Brand
Abcom
100m coil coaxial cable and live copper coil RG6CU
€67.76
100-meter coaxial cable coil.
Mesh and Vivo copper.
Features
| Impedance (Ω) | 75 ± 3 |
| Velocity of Propagation | 0.83 |
| Capacitance (pF/m) | 53 |
| Structural Return Loss (≥ dB) | 20 |
| Reaction to fire | Eca |
Physical Dimensions
| Component | AB RG6CU | |
| Conductor | Material | BC |
| Dia. (mm) | 1.13 ±0.01 | |
| Dielectric | Material | Foam PE |
| Dia. (mm) | 4.9 ±0.1 | |
| Shield | First | CU Foil |
| Second | 128×0.12 CU Wire | |
| Jacket | Material | PVC |
| Dia. (mm) | 6.80 ± 0.10 |
Nominal Attenuation [@ 68 F. ( 20C) , Allowance ± 5%]
| Frequency(MHz) | Attenuation (dB/100m) |
| 5 | 1.5 |
| 50 | 4.3 |
| 100 | 5.9 |
| 200 | 8.4 |
| 400 | 12.0 |
| 800 | 17.5 |
| 862 | 18.3 |
| 950 | 19.2 |
| 1000 | 19.8 |
| 1350 | 23.3 |
| 1750 | 27.0 |
| 2150 | 30.0 |
| 3000 | 36.8 |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Coil of 100 meters of coaxial cable. Materials: copper and live copper mesh. Impedance 75 ± 3. Speed of propagation 0.83. Loss of return ≥ dB 20. Class of reaction to fire Eca.
