Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU
search
  • Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU
  • Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU

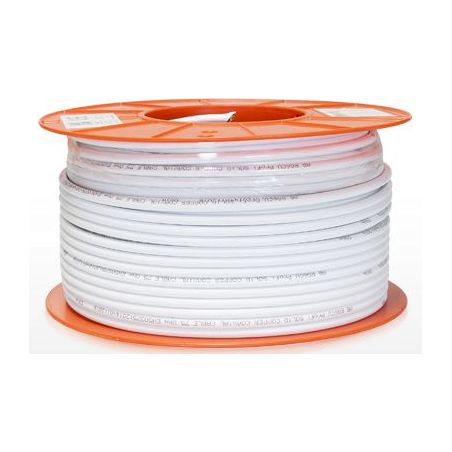

Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU

Bobine de 100 mètres de câble coaxial. Matériaux: cuivre et treillis de cuivre vivant. Impédance 75 ± 3. Vitesse de propagation 0.83. Perte de retour ≥ dB 20. Classe de réaction au feu Eca.

67,76 €
TTC
Référence ab-rg6cu-100
Marque Abcom
Quantité
Disponible dès maintenant

Free shipping
Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU

Câble coaxial à bobine de 100 m et bobine de cuivre sous tension RG6CU

67,76 €

Câble coaxial de 100 mètres.
Maille et cuivre Vivo.

Caractéristiques

Impedance (Ω) 75 ± 3
Velocity of Propagation 0.83
Capacitance (pF/m) 53
Structural Return Loss (≥ dB) 20
Reaction to fire Eca

Dimensions physiques

  Composant AB RG6CU
Conducteur Matière  BC
Diamètre . (mm) 1.13 ±0.01
Diallectrique Matière  Foam PE
Diamètre . (mm) 4.9 ±0.1
Bouclier Premier  live cuivre
Deuxième 128×0.12 CU maille de cuivre
Couverture Matière  PVC
Diamètre . (mm) 6.80 ± 0.10

Affaiblissement nominal [à 20 ° C, autorisation ± 5%]

Fréquence (MHz)  Atténuation (dB/100m)
5 1.5
50 4.3
100 5.9
200 8.4
400 12.0
800 17.5
862 18.3
950 19.2
1000 19.8
1350 23.3
1750 27.0
2150 30.0
3000 36.8
