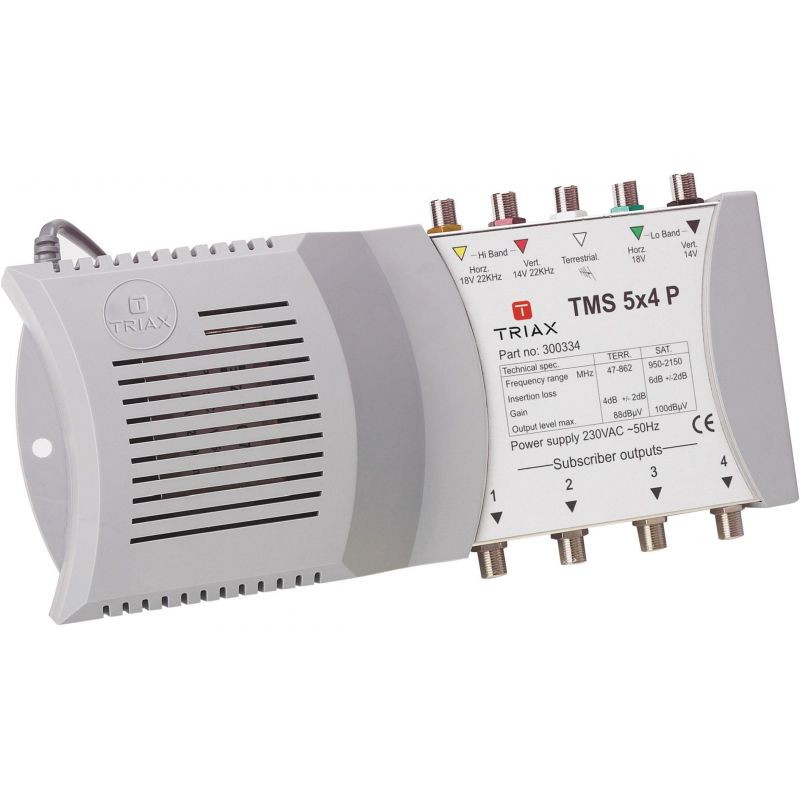

Triax TMS 5x4P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/4o
TMS 5x4P. Multiswitch 4 SAT + Terrestrial polarities for 4 users. 5 inputs and 4 outputs. The TMS 5XP series with integrated power supply is the right choice for a satellite position in small distribution networks. Frequency band 47-862 and 950-2150MHz. Output gain of terrestrial user 4dB. Max output level: SAT 100dBμV, TER 88dBμV.
€119.44
Tax included
Reference
triax-300324
Brand
Triax
Triax TMS 5x4P Multiswitch End Switch 4 polarities + terrestrial. Power supply included. 5i/4o
€119.44
TMS 5x4P. Multiswitch 4 SAT + Terrestrial polarities for 4 users. 5 inputs and 4 outputs.
The TRIAX TMS 5XP series with integrated power supply is the right choice for a satellite position in small distribution networks. Built-in power supply.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663003248 |
| CHARACTERISTICS | |
| Max. output level SAT @ -35 dB IMD3 | 100 dBµV |
| Max. output level TER @ -60dB IMD3 | 88 dBµV |
| Switch commands | 13/18 V, 0/22 kHz |
| FREQUENCY | |
| Frequency range TER | 47-862 MHz |
| Frequency range SAT | 950-2150 MHz |
| GAIN | |
| Gain - SAT (with 5 dB slope) | - 4 dB |
| Gain - TER | 4.0 dB |
| ISOLATION | |
| Isolation SAT to TER | 22 dB |
| Isolation TER to SAT | 22 dB |
| Isolation cross polarisation H/V | 25 dB |
| Isolation out-out SAT | 30 dB |
| Isolation out-out TER | 28 dB |
| RETURN LOSS | |
| Return loss SAT inputs | 10 dB |
| Return loss SAT outputs | 8 dB |
| Return loss TER inputs | 10 dB |
| Return loss TER outputs | 8 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Max. current pass per F-connector | 600 mA |
| Temperature range | -20...+55 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Number of inputs | 5 |
| Number of trunk inputs | 4 SAT, 1 TER |
| Subscriber outputs | 4 |
| Colour coding of IF and TER inputs | VL=Black, VH=Red, HL=Green, HH=Yellow |
| MECHANICAL | |
| Main material | Steel housing |
| Product Height | 71 mm |
| Product Depth | 103 mm |
| Product Width | 359 mm |
| Packing QTY | 1 |
| Packaging Height | 0.080 m |
| Packaging Width | 0.140 m |
| Packaging Depth | 0.300 m |
| Packaging Volume | 0.003 m3 |
| Net Weight | 1.119 kg |
| Tara Weight | 0.200 kg |
| Total Weight | 1.319 kg |
