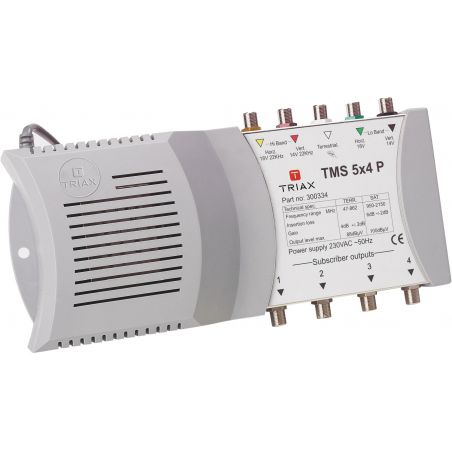

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7087 AND id_lang = 2 Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre. Alimentation incluse. 5e/4s
Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre pour 4 récepteurs alimentation incluse 5e/4s
search
  • Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre pour 4 récepteurs alimentation incluse 5e/4s

Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre. Alimentation incluse. 5e/4s

TMS 5x4P. Multiswitch 4 SAT + Polarités terrestres pour 4 utilisateurs. 5 entrées et 4 sorties. La série TMS 5XP avec alimentation intégrée est le bon choix pour une position satellite dans les petits réseaux de distribution. Bande de fréquence 47-862 et 950-2150MHz. Gain de sortie de l'utilisateur terrestre 4dB. Niveau de sortie maximum: SAT 100dBμV, TER 88dBμV.

119,44 €
TTC
Référence triax-300324
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping
Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre pour 4 récepteurs alimentation incluse 5e/4s

Triax TMS 5x4P Multiswitch End Switch 4 polarités + terrestre. Alimentation incluse. 5e/4s

119,44 €

TMS 5x4P. Multiswitch 4 SAT + Polarités terrestres pour 4 utilisateurs. 5 entrées et 4 sorties.

La série TRIAX TMS 5XP avec alimentation intégrée est le bon choix pour une position satellite dans de petits réseaux de distribution. Alimentation intégrée.

Spécifications

INFORMATIONS SUR LA COMMANDE
Code EAN 5702663003248
CARACTÉRISTIQUES
Niveau de sortie max. SAT à -35 dB IMD3 100 dBµV
Niveau de sortie max. TER à -60dB IMD3 88 dBµV
Commutation 3V/18V - 13V/22kHz - 18V/22kHz kHz
Commandes de commutation 13/18 V, 0/22 kHz
BANDE DE FRÉQUENCES
Bande passante TER 47-862 MHz
Bande passante SAT 950-2150 MHz
GAIN
Gain SAT (avec pente de 5 dB) - 4 dB
Gain - TER 4.0 dB
ISOLATION
Isolation SAT vers TER 22 dB
Isolation TER vers SAT 22 dB
Isolation sortie-sortie SAT 30 dB
Isolation sortie-sortie TER 28 dB
ADAPTATION
Perte de retour entrées SAT 10 dB
Perte de retour sorties SAT 8 dB
Perte de retour entrées TER 10 dB
Perte de retour sorties TER 8 dB
CARACTÉRISTIQUES ÉLECTRIQUES
Impédance 75 Ω
OPÉRATIONNEL
Courant max. de passage par connecteur F 600 mA
Plage de température -20...+55 °C
CONNECTEURS
Type de Connecteur F-femelle
Nombre d'entrées 5
Nombre d'entrées ligne de transport 4 SAT, 1 TER
Sorties usagers 4
MÉCANIQUE
Matériau Boîtier Acier
Hauteur 71 mm
Profondeur 103 mm
Largeur 359 mm
Quantité par emballage 1
Hauteur brute 0.080 m
Largeur brute 0.140 m
Profondeur brute 0.300 m
Volume 0.003 m3
Poids net 1.119 kg
Poids de l'emballage 0.200 Kg
Poids brut 1.319 Kg
