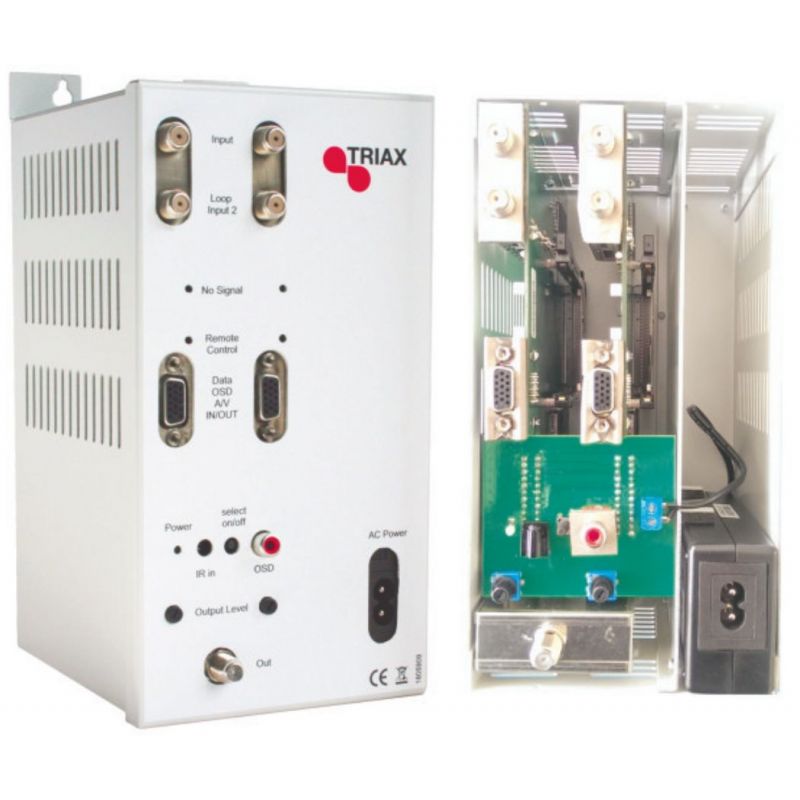

Triax CSE 0204 Compact headend DVBS(2)-COFDM CI

2x DVB-S(2) Inputs to 4xCOFDM Outputs with Common Interface. Simple installation and operation by remote control. High Output Level. Multi-lingual OSD. Accessories for wall mounting included. Easy maintenance.

€2,110.77
Tax included
Reference triax-366102x2
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax CSE0204 Compact headend DVBS(2)-COFDM CI

Triax CSE 0204 Compact headend DVBS(2)-COFDM CI

€2,110.77

Features

  • 2x DVB-S(2) Inputs to 4xCOFDM Outputs with Common Interface.
  • Simple installation and operation by remote control.
  • High Output Level. Multi-lingual OSD.
  • Accessories for wall mounting included.
  • Easy maintenance.

Specifications

Triax Comact Headend CSE 0204
Modul Typ / Type 2X TQC 102
Part Number 366102
Inputs 2xDVB-S/S2 (1x for each TQC 102)
Input frequency 950 - 2150 MHz
Input level 40... 74 dBμV
Symbol rate 45 Mbit/s
Viterbi decoder 1/2, 2/3, 3/4, 5/6, 7/8
Output 4x COFDM (2x for each TQC 102)
Output mode QPSK, QAM16, 32, 64 / 2k
Spectrum inversion Normal, Inverted
Output channel C2- C69
Output level 90 dBμV
MER typ. 34 dB
Level adjuster Transcoder 15 dB
Common Interface (CI) 2x (1x for each TQC 102)
RF connector F-Female
Audio mode Mono/Stereo
LNB control 14 V/DC
Power 90-264 Volt / AC
Dimension 232 x 152 x 115 mm
Weight of module 2.1 kg
Working temperature -10 bis 50°C
