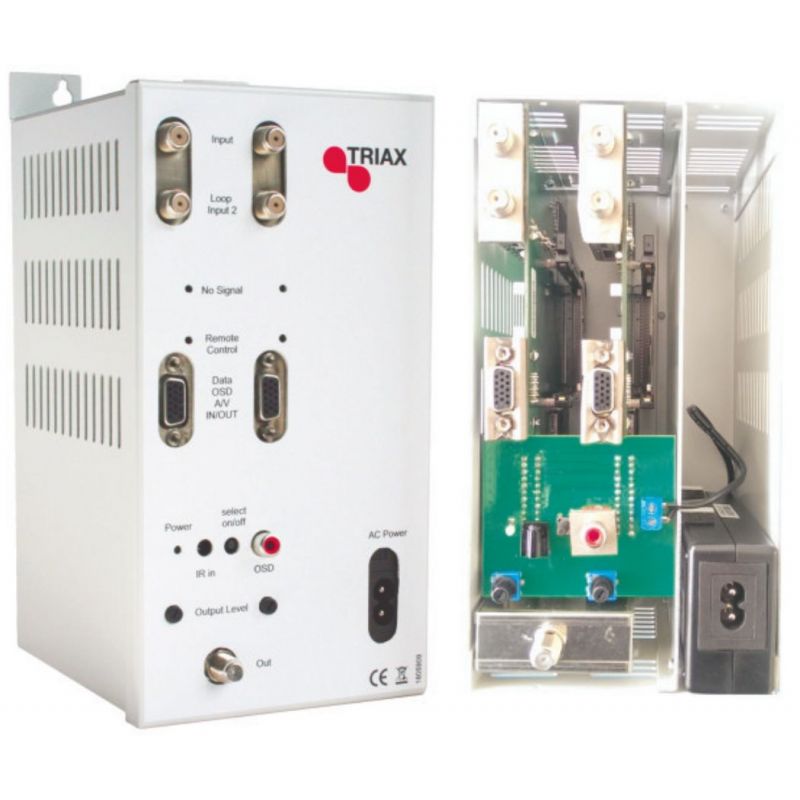

Triax CSE 0204 En-tête DVBS compact(2)-COFDM CI
2x entrées DVB-S (2) aux sorties 4xCOFDM avec interface commune. Installation et utilisation simples par télécommande. Niveau de sortie élevé. OSD multilingue. Accessoires pour montage mural inclus. Entretien facile.
2 110,77 €
TTC
Référence
triax-366102x2
Marque
Triax
Triax CSE 0204 En-tête DVBS compact(2)-COFDM CI
2 110,77 €
Caractéristiques
- 2x entrées DVB-S (2) aux sorties 4xCOFDM avec interface commune.
- Installation et utilisation simples par télécommande.
- Niveau de sortie élevé. OSD multilingue.
- Accessoires pour montage mural inclus.
- Entretien facile.
Caractéristiques
| Triax Comact Headend | CSE 0204 |
| Modul Typ / Type | 2X TQC 102 |
| Part Number | 366102 |
| Inputs | 2xDVB-S/S2 (1x for each TQC 102) |
| Input frequency | 950 - 2150 MHz |
| Input level | 40... 74 dBμV |
| Symbol rate | 45 Mbit/s |
| Viterbi decoder | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Output | 4x COFDM (2x for each TQC 102) |
| Output mode | QPSK, QAM16, 32, 64 / 2k |
| Spectrum inversion | Normal, Inverted |
| Output channel | C2- C69 |
| Output level | 90 dBμV |
| MER | typ. 34 dB |
| Level adjuster Transcoder | 15 dB |
| Common Interface (CI) | 2x (1x for each TQC 102) |
| RF connector | F-Female |
| Audio mode | Mono/Stereo |
| LNB control | 14 V/DC |
| Power | 90-264 Volt / AC |
| Dimension | 232 x 152 x 115 mm |
| Weight of module | 2.1 kg |
| Working temperature | -10 bis 50°C |
