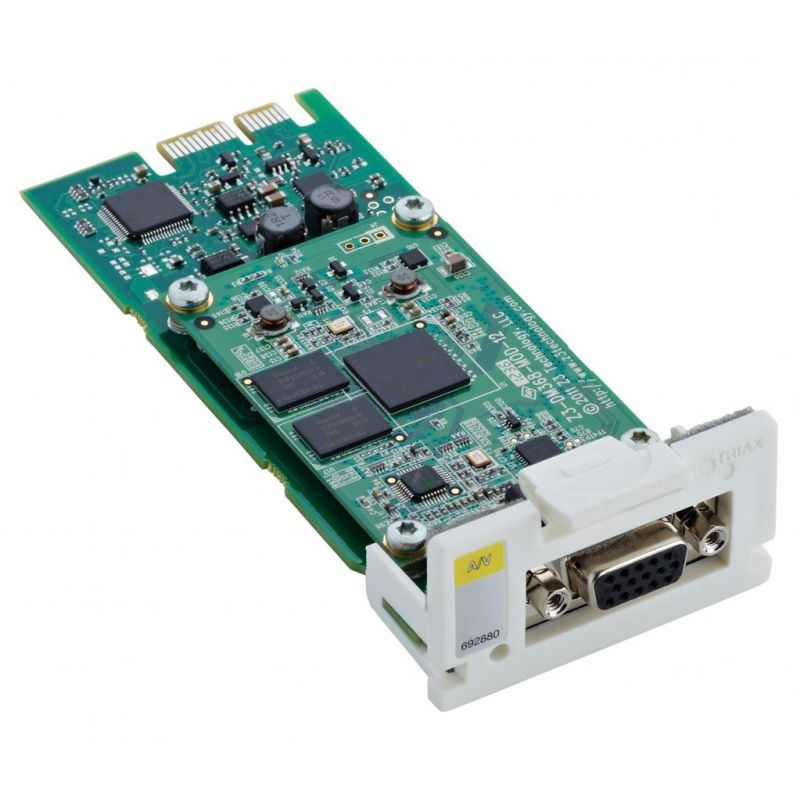

Triax TDH 814 Frontend - AV encoder module
The AV encoder module converts analog video (CVBS) and audio signals from a set top box, a DVD player, a camera or other sources, into a MPEG2 or MPEG4 data stream. This data stream is then available in the TDH 800 pool and can be sent out on all TDH 800 output modules.
€1,107.56
Tax included
Reference
triax-692880
Brand
Triax
Triax TDH 814 Frontend - AV encoder module
€1,107.56
AV frontend encoder module
The AV encoder module converts analog video (CVBS) and audio signals from a set top box, a DVD player, a camera or other sources, into a MPEG2 or MPEG4 data stream. This data stream is then available in the TDH 800 pool and can be sent out on all TDH 800 output modules.
Features
- Composite video input
- Stereo Audio input
- Teletext supported
- Selectable encoder output bandwidth (TDH 800-GUI)
- Remote update via TDH 800 system interface
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702666928807 |
| CHARACTERISTICS | |
| Input video level | 1.0 Vpp |
| Input video standards | PAL, Secam |
| Input Video S/N Ratio | > 52 dB |
| Scan Resolution | 525, 625 Pixel |
| VBI Data Slicer | Teletext |
| Input Aspect Ratio | 4:3, 16:9 |
| Input Audio Bitrate | fixed 192 kB |
| Input audio level | 2.4 Vpp |
| Audio embedded | AAC, 48 kHz/MPEG-2(L1), Stereo |
| Input Audio S/N Ratio | > 55 dB |
| Output Video Codec | MPEG-2, MPEG-4 |
| Output Video Codec Settings (CBR) | 1, 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10 Mbps Mbps |
| FREQUENCY | |
| Audio frequency response | 50 - 20.000 Hz |
| RETURN LOSS | |
| Input return loss | > 26 dB |
| ELECTRICAL | |
| Physical Interface | CVBS |
| Harmonic Distortion Max. | < 1.0 % |
| Input Audio Impedance | 10 ± 1 kΩ |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Temperature - operating | -10 to +50 °C |
| Humidity - operating | 20 to 80 % |
| Temperature - storage | -20 to +70 °C |
| Humidity - storage | 10 to 90 % |
| CONNECTORS | |
| Number of inputs | 1 x AV-signal / señal |
| Connector Type | 15pol Sub-D |
| MECHANICAL | |
| Dimensions product (H x D x W) | 29 x 126 x 53 mm |
| Packing QTY | 1 |
| Packaging Height | 0.040 m |
| Packaging Width | 0.080 m |
| Packaging Depth | 0.180 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.090 kg |
| Total Weight | 0.090 kg |
