SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7171 AND id_lang = 2 Triax TDH 814 Module d'entrées A/V Frontend
TDH 814 Module d'entrées A/V Frontend Triax
search
  • TDH 814 Module d'entrées A/V Frontend Triax
  • TDH 814 Module d'entrées A/V Frontend Triax
  • TDH 814 Module d'entrées A/V Frontend Triax

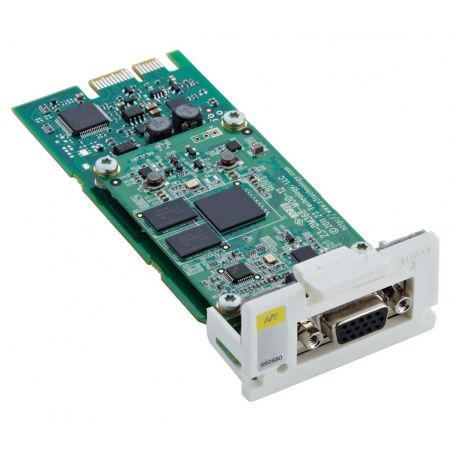

Triax TDH 814 Module d'entrées A/V Frontend

O módulo codificador AV converte vídeo analógico (CVBS) e sinais de áudio de um decodificador, reprodutor de DVD, câmera ou outras fontes em um fluxo de dados MPEG2 ou MPEG4. Esse fluxo de dados estará disponível no pool do TDH 800 e poderá ser enviado para todos os módulos de saída do TDH 800.

1 107,56 €
TTC
Référence triax-692880
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping
TDH 814 Module d'entrées A/V Frontend Triax

Triax TDH 814 Module d'entrées A/V Frontend

1 107,56 €

Module d'encodeur d'entrée AV

Le module encodeur AV convertit les signaux vidéo analogiques (CVBS) et audio d'un décodeur, lecteur DVD, caméra ou autres sources en un flux de données MPEG2 ou MPEG4. Ce flux de données sera disponible dans le pool TDH 800 et pourra être envoyé à tous les modules de sortie TDH 800.

Caractéristiques

  • Entrée vidéo composite.
  • Entrée audio stéréo.
  • Prenez le télétexte.
  • Largeur de bande de sortie du codeur sélectionnable (TDH 800-GUI).
  • Mise à jour à distance à l'aide de l'interface du système 800 TDH.

Spécifications

ORDER INFORMATION
EAN Number 5702666928807
CHARACTERISTICS
Input video level 1.0 Vpp
Input video standards PAL, Secam
Input Video S/N Ratio > 52 dB
Scan Resolution 525, 625 Pixel
VBI Data Slicer Teletext
Input Aspect Ratio 4:3, 16:9
Input Audio Bitrate fixed 192 kB
Input audio level 2.4 Vpp
Audio embedded AAC, 48 kHz/MPEG-2(L1), Stereo
Input Audio S/N Ratio > 55 dB
Output Video Codec MPEG-2, MPEG-4
Output Video Codec Settings (CBR) 1, 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10 Mbps Mbps
FREQUENCY
Audio frequency response 50 - 20.000 Hz
RETURN LOSS
Input return loss > 26 dB
ELECTRICAL
Physical Interface CVBS
Harmonic Distortion Max. < 1.0 %
Input Audio Impedance 10 ± 1 kΩ
Impedance 75 Ω
OPERATIONAL
Temperature - operating -10 to +50 °C
Humidity - operating 20 to 80 %
Temperature - storage -20 to +70 °C
Humidity - storage 10 to 90 %
CONNECTORS
Number of inputs 1 x AV-signal / señal
Connector Type 15pol Sub-D
MECHANICAL
Dimensions product (H x D x W) 29 x 126 x 53 mm
Packing QTY 1
Packaging Height 0.040 m
Packaging Width 0.080 m
Packaging Depth 0.180 m
Packaging Volume 0.001 m3
Net Weight 0.090 kg
Total Weight 0.090 kg
