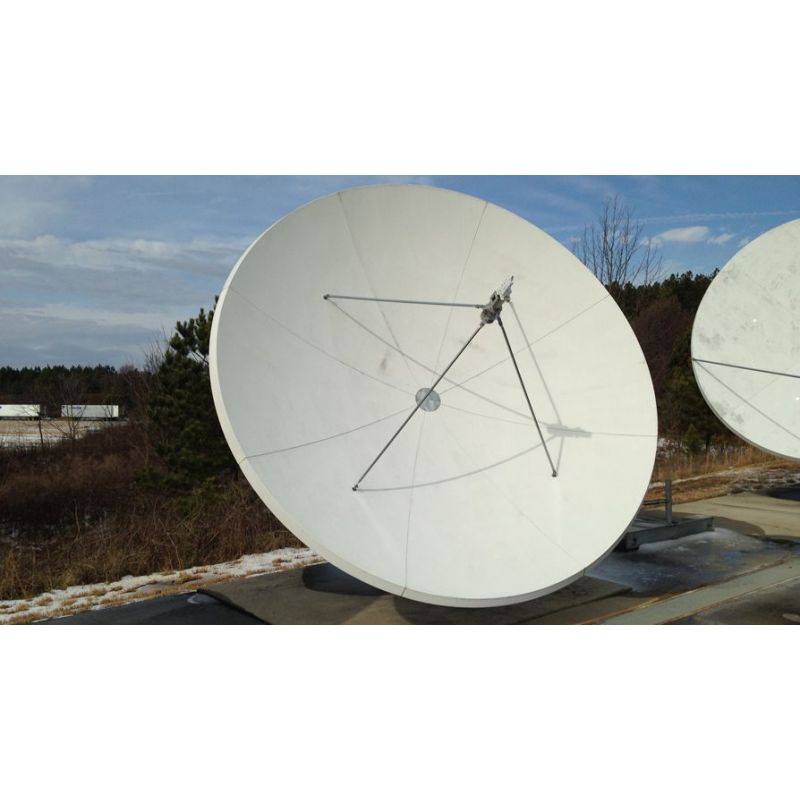

Prodelin General Dynamics 1374 Series VSAT Antenna 3.7m Axis Metric Ku Band
The products of PRODELIN General Dynamics SATCOM Technologies cover the design, development and manufacture of satellite communication antennas for national and international applications. It specializes in providing high quality, cost-effective antennas for both the Very Small Aperture Terminal (VSAT) bidirectional market and for single-reception applications.
€7,018.00
Tax included
Reference
prodelin-1374-1375
Brand
Prodelin
Prodelin General Dynamics 1374 Series VSAT Antenna 3.7m Axis Metric Ku Band
€7,018.00
The products of PRODELIN General Dynamics SATCOM Technologies cover the design, development and manufacture of satellite communication antennas for national and international applications. It specializes in providing high quality, cost-effective antennas for both the Very Small Aperture Terminal (VSAT) bidirectional market and for single-reception applications.
Features
- Free Shipping to Spain (Peninsula and Balearic Islands)
- Fixed Mount
- Includes floor support
- Ku Band
- Prime Focus
Specifications
| Electrical | Series 1374-1375 C-Band Ku-Band |
| Antenna Size | 3.7M (12 ft.) |
| Operating Frequency (GHz) | 3.625 - 4.2 10.95 - 12.75 |
| Midband Gain ( +/- .5dB) | 40.9 dBi 50.7 dBi |
| 3 dB Beamwidth Antenna Noise Temperature | 1.45° 0.5° |
| 20° Elevation | 25 K 23 K |
| 30° Elevation | 23 K 22 K |
| Feed Interface | CPR 229F WR 75 |
| First Sidelobe (typical) | -20 dB |
| Cross-Pol Isolation (Linear) | >30 dB (on axis) |
| VSWR | 1.3:1 Max. |
| Insertion Loss | 0.2 dB Max. |
| Mechanical | |
| Reflector Material | Eight Segment Glass Fiber Reinforced Polyester SMC |
| Antenna Optics | Prime Focus, Axisymmetric |
| Mast Pipe Size | 6” SCH 80 Pipe (6.62” OD) 16.83 cm. |
| Elevation Adjustment Range | 10° to 70° Continuous Fine Adjust ment (90° optional) |
| Azimuth Adjustment Range | 360° Continuous / Polar mount covers any 90° segment of arc |
| Declination Corrected Polar Range (1305/1345/1375) | 90° arc coverage with 36” actuator |
| f/D Ratio/Feed Support | .37/Quad Feed Support |
| Weight | 259 kg (345 kg packing included) |
| Environmental Performance | ||
| Wind Loading | Operational | 45 mph (72 km/h) |
| Survival | 125 mph (201 km/h) | |
| Temperature | Operational | -40° to 140° F (-40° to 60° C) |
| Survival | -50° to 160° F (-46° to 71° C) | |
| Rain | Operational | 45 mph (72 km/h) |
| Survival | 125 mph (201 km/h) | |
| Ice | Operational | ---------- |
| Survival | 1/2” radial | |
| Atmospheric Conditions | Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas | |
| Solar Radiation | 360 BTU/h/ft2 | |
