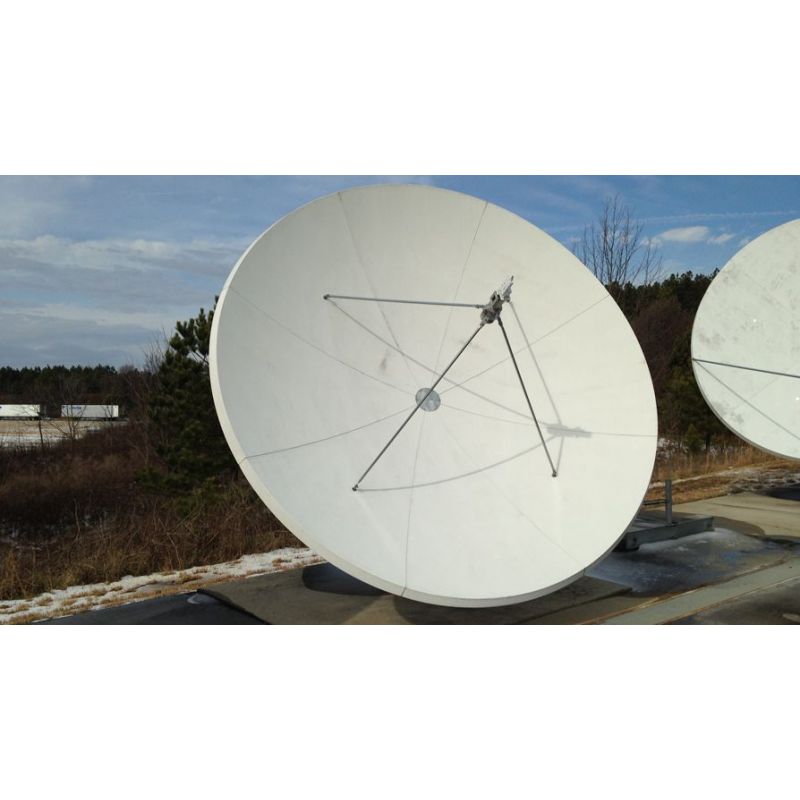

Prodelin General Dynamics Antenne VSAT série 1374, bande métrique Ku de l'axe, 3.7m
search
  • Prodelin General Dynamics Antenne VSAT série 1374, bande métrique Ku de l'axe, 3.7m

Prodelin General Dynamics Antenne VSAT série 1374, bande métrique Ku de l'axe, 3.7m

PRODELIN General Dynamics SATCOM Technologies couvrent la conception, le développement et la fabrication d’antennes de communication par satellite pour des applications nationales et internationales. Il s’est spécialisé dans la fourniture d’antennes de haute qualité et économiques pour le marché bi-directionnel (VSAT) et pour les applications à réception unique.

7 018,00 €
TTC
Référence prodelin-1374-1375
Marque Prodelin
Quantité
Disponible dans 24/48h

Free shipping
Prodelin General Dynamics Antenne VSAT série 1374, bande métrique Ku de l'axe, 3.7m

Prodelin General Dynamics Antenne VSAT série 1374, bande métrique Ku de l'axe, 3.7m

7 018,00 €

Les produits de PRODELIN General Dynamics SATCOM Technologies couvrent la conception, le développement et la fabrication d’antennes de communication par satellite pour des applications nationales et internationales. Il s’est spécialisé dans la fourniture d’antennes de haute qualité et économiques pour le marché bi-directionnel des terminaux à très petite ouverture (VSAT) et pour les applications à réception unique.

Caractéristiques

  • Livraison gratuite en Espagne (Péninsule et Baléares)
  • Montage fixe
  • Comprend un support de sol
  • Bande Ku
  • Premier Focus

Spécifications

Electrical Series 1374-1375
C-Band Ku-Band
Antenna Size 3.7M (12 ft.)
Operating Frequency (GHz) 3.625 - 4.2 10.95 - 12.75
Midband Gain ( +/- .5dB) 40.9 dBi 50.7 dBi
3 dB Beamwidth Antenna Noise Temperature 1.45° 0.5°
20° Elevation 25 K 23 K
30° Elevation 23 K 22 K
Feed Interface CPR 229F WR 75
First Sidelobe (typical) -20 dB
Cross-Pol Isolation (Linear) >30 dB (on axis)
VSWR 1.3:1 Max.
Insertion Loss 0.2 dB Max.
Mechanical
Reflector Material Eight Segment Glass Fiber Reinforced Polyester SMC
Antenna Optics Prime Focus, Axisymmetric
Mast Pipe Size 6” SCH 80 Pipe (6.62” OD) 16.83 cm.
Elevation Adjustment Range 10° to 70° Continuous Fine Adjust ment (90° optional)
Azimuth Adjustment Range 360° Continuous / Polar mount covers any 90° segment of arc
Declination Corrected Polar Range (1305/1345/1375) 90° arc coverage with 36” actuator
f/D Ratio/Feed Support .37/Quad Feed Support
Weight 259 kg (345 kg packing included)
Environmental Performance
 Wind Loading  Operational 45 mph (72 km/h)
Survival 125 mph (201 km/h)
 Temperature  Operational -40° to 140° F (-40° to 60° C)
Survival -50° to 160° F (-46° to 71° C)
 Rain  Operational 45 mph (72 km/h)
Survival 125 mph (201 km/h)
 Ice  Operational ----------
Survival 1/2” radial
Atmospheric Conditions  Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas
Solar Radiation  360 BTU/h/ft2
