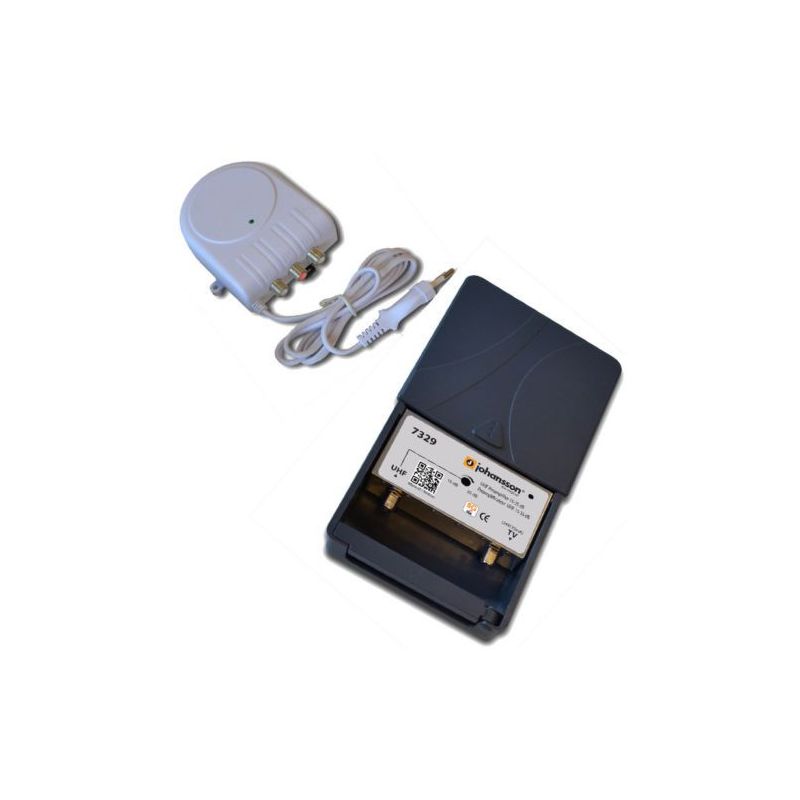

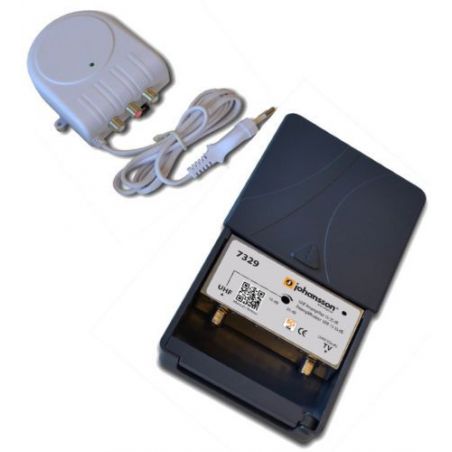

Johansson 7329KTL2 Kit Amplification of mast, UHF, 35dB, 24V, 1 input - 1 output
UHF Preamp Kit Ch. 21-48 15-35dB 24 V - 1 input / 1 output (7329) and Power supply (2436).
€23.53
€35.13
Save 33%
Tax included
Reference
johansson-7329kt
Brand
Johansson
Johansson 7329KTL2 Kit Amplification of mast, UHF, 35dB, 24V, 1 input - 1 output
€23.53
€35.13
Save 33%
UHF Preamp Kit Ch. 21-48 15-35dB 24 V - 1 input / 1 output (7329) and Power supply (2436).
Features
UHF Preamplifier
- 1 input/1 output
- LTE (5G) rejection
- low-noise
- 15-35 dB adjustable gain
- power indication LED
- 24 VDC operating voltage
Power Supply
- high-efficiency power supply
- 24V stabilized
- short-circuit protection
- power LED indicator
- wall or DIN-rail mountable
Specifications
Preamplifier
| 7329 | ||
|---|---|---|
| Frequency range | MHz | 470-694 (Ch. 21-48) |
| Gain | dB | 15 - 35 |
| Noise figure | dB | 3.5 |
| Input level | dBµV | 82 |
| Output level | dBµV | 104 |
| Power supply | VDC | 24 |
| Consumption | mA | 35 |
| Dimensions | mm | 120 x 115 x 50 |
Power Supply
| 2436 | ||
|---|---|---|
| Outputs | - | 2 |
| Insertion loss | dB | 4-5 |
| Isolation between outputs | dB | 10 |
| AC input voltage/Frequency/Power | - | 100-230 V~ / 50 Hz / 4,8 W |
| Efficiency level | - | VI |
| DC output voltage | VDC | 24 |
| Output current | mA | 150 |
| Dimensions | mm | 95 x 76 x 35 |
