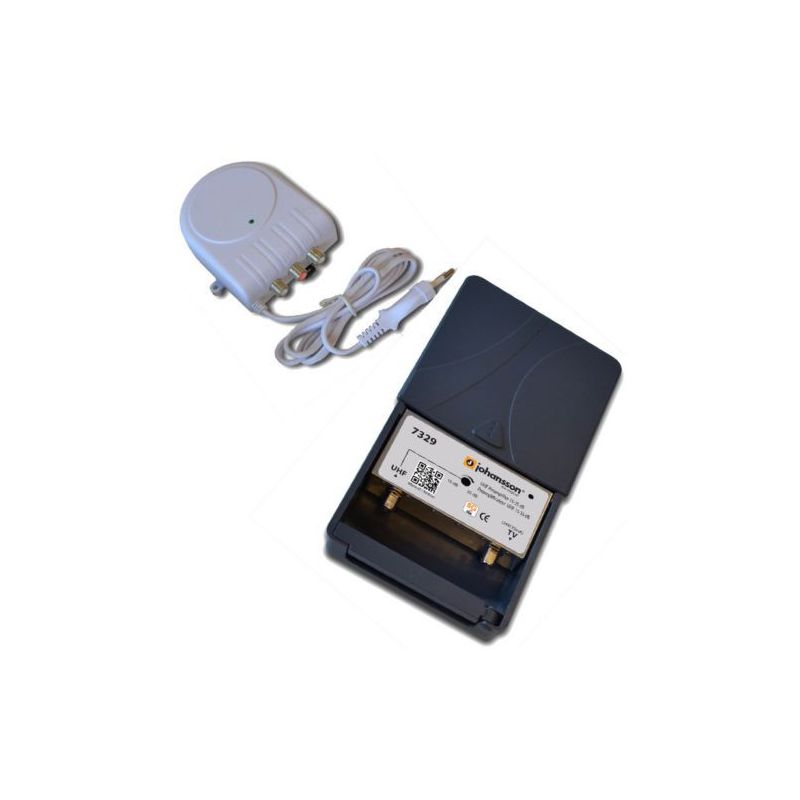

Johansson 7329KTL2 Kit Amplification de mât, UHF, 35dB, 24V, 1 entrée - 1 sortie

Kit de préamplificateur UHF, chap. 21-48 15-35dB 24 V - 1 entrée / 1 sortie (7329) et alimentation (2436).

23,53 € 35,13 € Économisez 33%
TTC
Référence johansson-7329kt
Marque Johansson
Quantité
Disponible dès maintenant

Free shipping
Kit Amplification de mât, UHF, 35dB, 24V, 1 entrée - 1 sortie 7329 / 2436

Johansson 7329KTL2 Kit Amplification de mât, UHF, 35dB, 24V, 1 entrée - 1 sortie

23,53 € 35,13 € Économisez 33%

Kit préampli UHF, ch. 21-48 15-35dB 24 V - 1 entrée / 1 sortie (7329) et alimentation (2436).

Caractéristiques

Préamplificateur UHF

  • 1 entrée / 1 sortie
  • Rejet du LTE (5G)
  • faible bruit
  • 15-35 dB gain réglable
  • LED d'indication de puissance
  • Tension de fonctionnement 24 VDC

Source de courant

  • alimentation haute efficacité
  • 24V stabilisé
  • protection de court circuit
  • indicateur de puissance
  • montage mural ou sur rail DIN

Spécifications

Préamplificateur

  7329
Frequency range MHz 470-694 (Ch. 21-48)
Gain dB 15 - 35
Noise figure dB 3.5
Input level dBµV 82
Output level dBµV 104
Power supply VDC 24
Consumption mA 35
Dimensions mm 120 x 115 x 50

Source de courant

  2436
Outputs - 2
Insertion loss dB 4-5
Isolation between outputs dB 10
AC input voltage/Frequency/Power - 100-230 V~ / 50 Hz / 4,8 W
Efficiency level - VI
DC output voltage VDC 24
Output current mA 150
Dimensions mm 95 x 76 x 35
