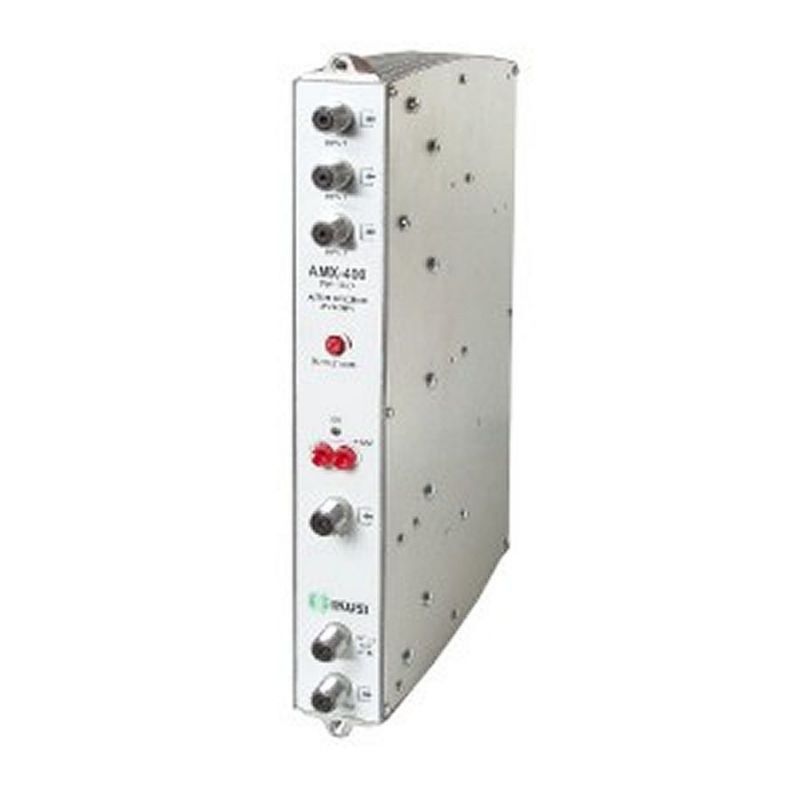

Ikusi AMX-400 Multiplexer 4 inputs and up to 24 outputs

4-Way 47-862 MHz Active Combiner. Application in large ClassA headends where the modules are mounted in rack-frames.

€181.50
Tax included
Reference ikusi-4433
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi AMX-400 Multiplexer 4 inputs and up to 24 outputs

Ikusi AMX-400 Multiplexer 4 inputs and up to 24 outputs

€181.50

IKUSI AMX-400. 4-Way 47-862 MHz Active Combiner. Application in large ClassA headends where the modules are mounted in rack-frames.

Features

  • Application in large ClassA headends where the modules (processors, receivers, transmodulators, modulators, regenerators) are mounted in several deck-arranged rack-frames or baseplates. The AMX-400 is a 4-input combiner that has been designed to combine up to 24 channels (6 channels per input).
  • The system is expandable, so that it is possible to combine up to 96 channels by using 4 AMX-400 and one final passive combiner (or another AMX at IMD decrease’s expense).
  • The sum of the combined signals is connected to the HPA launch amplifier.
  • Total isolation between inputs.
  • Net combining gain.
  • Push-pull amplification technology

Technical specifications

REF. 4433
No. of inputs MHz 4
Frequency range dB 45 -862
Response flatness dB ±1.5
Gain dB 7
IMD for 4x6 channels, 72 dBμV input level dB -75
Output variable attenuator dB 0 - 10
Input and output return loss dB ≥ 10
Output test dB -20 ±1
Supply voltage VDC +12
Consumption mA 470
RF and test connectors   Female F
DC connectors   banana socket
Dimensions mm 230 x 195 x 32
