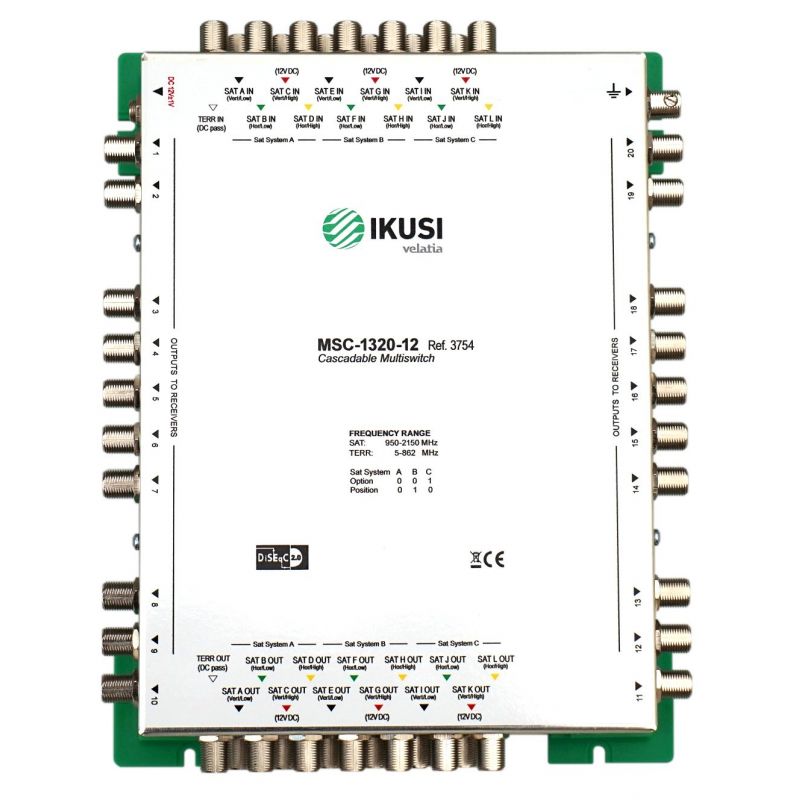

Ikusi MSC-1320 Cascadable multiswitch 13 inputs 20 outputs -12 dB
search
  • Ikusi MSC-1320 Cascadable multiswitch 13 inputs 20 outputs -12 dB

Ikusi MSC-1320 Cascadable multiswitch 13 inputs 20 outputs -12 dB

Cascadable multiswitch 13 inputs. Distribution of 12 SAT-IF polarizations and 1 terrestrial TV signal

€735.68
Tax included
Reference ikusi-3754
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi MSC-1320 Cascadable multiswitch 13 inputs 20 outputs -12 dB

Ikusi MSC-1320 Cascadable multiswitch 13 inputs 20 outputs -12 dB

€735.68

IKUSI MSC-1320. Cascadable multiswitch 13 inputs. Distribution of 12 SAT-IF polarizations and 1 terrestrial TV signal

Features

  • Maximum recommended number of user outputs in a single cascade is 64.
  • Stepped insertion loss on user outputs.
  • Indoor mounting and wall fixing.
  • European product.

Technical specifications

REF. 3696 3697 3698 3699 3752 3753 3754 3755
Number of inputs 13 (12 SAT inputs+1 TERR input)
Number of outputs 13
Number of user outputs 6 6 10 10 16 16 20 20
Frequency range SAT MHz 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150
Frequency range TERR MHz 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862
Insertion loss SAT trunk dB 2 2 2,5 2,5 3 3 3,5 3,5
Insertion loss TERR trunk dB 3 3 4 4 7 7 8 8
Insertion loss SAT user dB 10 15 10 15 12 17 12 17
Insertion loss TERR tap dB 18 18 22 22 26 26 28 28
Isolation between V/H polatizations at user output dB 22 22 22 22 20 20 20 20
Isolation between bands L/H at user output dB 22 22 22 22 22 22 22 22
Isolation berween trunk lines dB 25 25 25 25 25 25 25 25
Maximum input level SAT dBµV 105 105 105 105 105 105 105 105
Maximum input level TERR dBµV 105 105 105 105 105 105 105 105
Maximun user output level SAT dBµV 95 90 95 90 93 88 93 88
Maximun user output leve TERR dBµV 87 87 83 83 79 79 77 77
Current consumption from receiver (18V) mA 100 100 100 100 100 100 100 100
Operating temperature ºC -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60
Dimensions (w x d x h) cm 18.6 x 14.6 x 5.1 18.6 x 14.6 x 5.1 18.6 x 14.6 x 5.1 18.6 x 14.6 x 5.1 18.6 x 24.5 x 5.1 18.6 x 24.5 x 5.1 18.6 x 24.5 x 5.1 18.6 x 24.5 x 5.1



Manual/Datasheet
