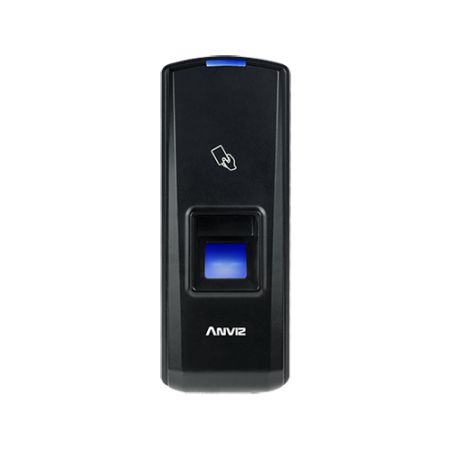

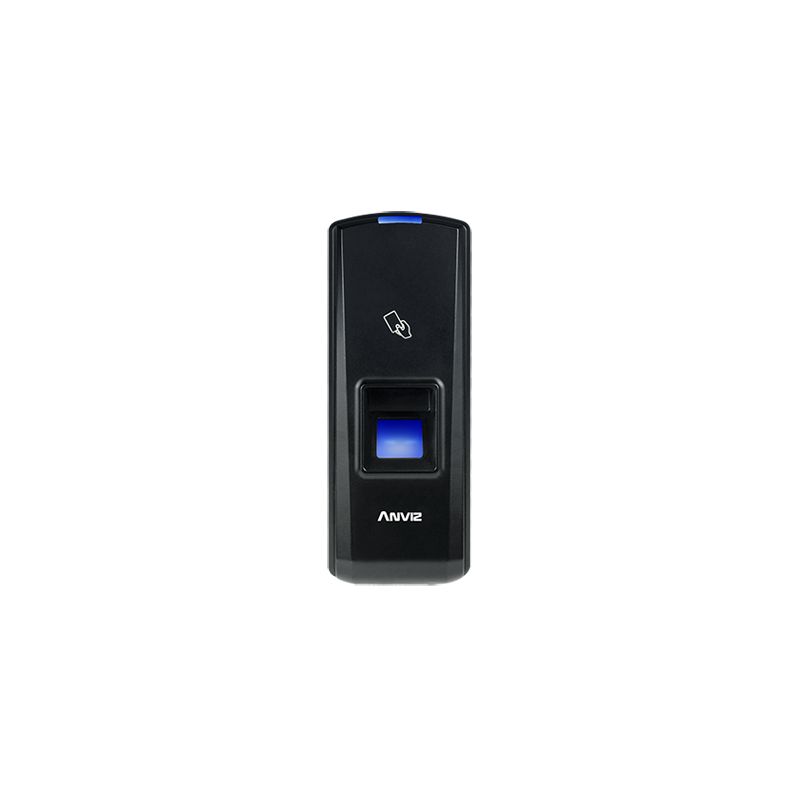

Anviz T5PRO-MIFARE Fingerprint and Anviz MIFARE cards biometric…
Fingerprint and Anviz MIFARE cards biometric reader. 1000 fingerprint/reader and 50000 records. TCP/IP, RS485, miniUSB, Wiegand 26. Controller incorporated. For indoors.
€150.23
€231.13
Save 35%
Tax included
Reference
T5PRO-MIFARE
Brand
Anviz
Anviz T5PRO-MIFARE Fingerprint and Anviz MIFARE cards biometric…
€150.23
€231.13
Save 35%
You might also like
Anviz T5PRO-MIFARE. Fingerprint and Anviz MIFARE cards biometric reader. 1000 fingerprint/reader and 50000 records. TCP/IP, RS485, miniUSB, Wiegand 26. Controller incorporated. For indoors. T5pro-mifare anviz.
Features
- ANVIZ autonomous biometric reader
- MIFARE cards and fingerprints
- 1000 recordings/ 50000 registers
- TCP/IP, RS485, miniUSB, Wiegand 26
- Integrated controller
- For indoors
Specs
- 32-Bit TI Stellaris® processor high speed
- BioNano V10 algorythm
- AFOS300 Fingerprint encapsulated optical sensor
- Automatic activation sensor via IR
- 22 x 18 mm scanning area
- 500 DPI resolution
- ID time: <0,5 sec.
- Capacity: up to 1000 fingerprints or cards
- Up to 50000 registers
- ID modes: Fingerpint, card and fingerprint + card
- Proximity card: MIFARE
- Communication: PC TCP/IP, RS485, miniUSB
- Input: Door sensor, aperture pushbutton
- Output: Wiegand 26, 12V relay output or NA/NC contact
- Power supply: 12V DC /200 mA
- Dimensions: 37 x 55 x 145 mm
- Peso: 110 g| Processor | TI Stellaris® 32-Bit high speed |
| Algorythm | BioNano V10 |
Fingerprint optical sensor | AFOS300 encapsulated |
| Activation sensor | Auto-activation via IR |
| Scanning area | 22 x 18 mm |
| Resolution | 500 DPI |
| ID time | < 0.5 Seg |
| Capacity | Up to 1000 fingerprint or cards |
| Register | Up to 50000 |
| ID modes | Fingerprint, card and fingerprint+card |
| Proximity reader | MIFARE |
| PC communication | TCP/IP, RS485, miniUSB |
| Inputs | Sensor de puerta, Pulsador de apertura |
| Outputs | Wiegand 26, 12 V relay output or NO/NC contact |
| Power supply | DC 12 V / 200 mA |
| Dimensions | 37 (Fo) x 55 (An) x 145 (Al) mm |
| Weight | 110 g |
- CONAC-729
Data sheet
- Weight
- 110 g
110 g
200 g
200 g
200 g
200 g
200 g
200 g - Power
- DC 12 V / 200 mA
- Resolution
- 500 DPI
- Dimensions
- 37 (D) x 55 (W) x 145 (H) mm
- Capacity
- Up to 1000 fingerprints or cards
- Processor
- TI Stellaris® 32-Bit high speed
- Algorithm
- BioNano V10
- Optical fingerprint sensor
- AFOS300 encapsulated
- Scan area
- 22 x 18 mm
- Identification time
- ≤ 0.5 Sec.
- Records
- Up to 50000
- Identification modes
- Fingerprint, Card & Fingerprint+Card
- Proximity card
- EM RFID
- PC communication
- TCP/IP, RS485, miniUSB
- Inputs
- Door sensor, opening button
- Outputs
- Wiegand 26, 12V relay output (NO/NC)
- Power supply
- DC 12 V / 200 mA
- Activation sensor
- Infrared auto-activation
- Dimensiones
- 550 g
550 g
550 g - Custom Function
- Can be made slave (T5S)/ Optional. Specify in order
Fingerprint and Anviz MIFARE cards biometric reader. 1000 fingerprint/reader and 50000 records. TCP/IP, RS485, miniUSB, Wiegand 26. Controller incorporated. For indoors.
