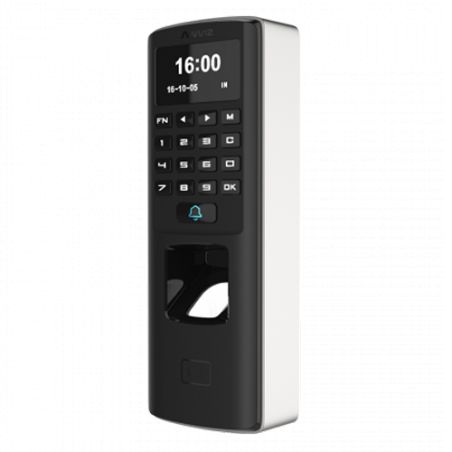

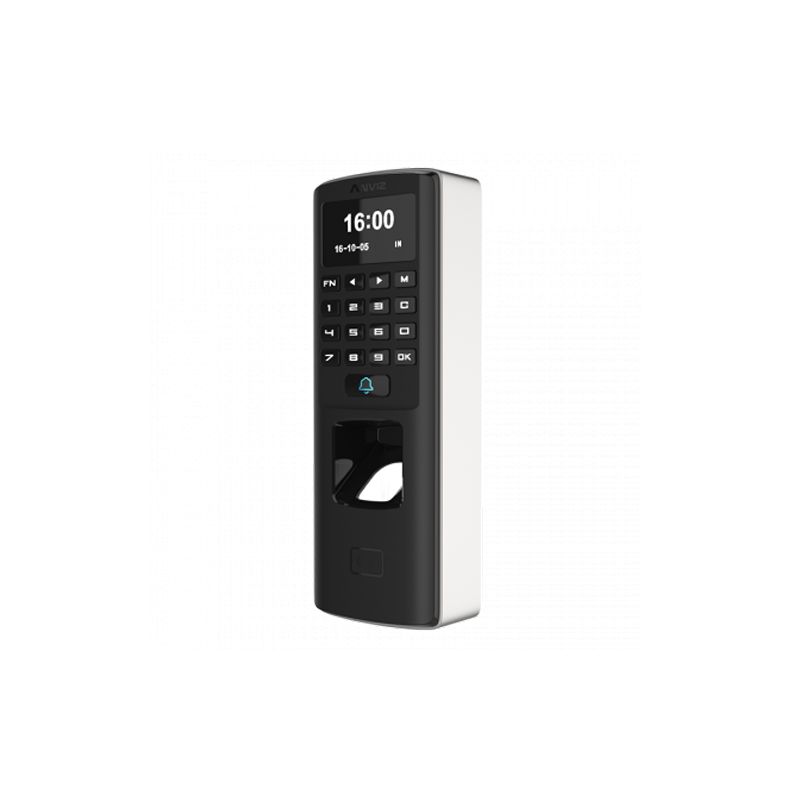

Anviz M7 - ANVIZ autonomous biometric reader, Fingerprints, EM…
ANVIZ autonomous biometric reader - Fingerprints, EM and MF and keyboard - 3000 recordings / 50000 records - TCP/IP, RS485, Wiegand 26 - Integrated controller | Time & Attendance - Vandal-proof, for exterior use
€240.67
€370.26
Save 35%
Tax included
Reference
M7
Brand
Anviz
Anviz M7 - ANVIZ autonomous biometric reader, Fingerprints, EM…
€240.67
€370.26
Save 35%
You might also like
- Anviz
- Independent biometric reader
- Access by EM RFID and MF card, fingerprint, username, password and/or combinations
- Touch keypad and OLED display
- Capacity for 3000 fingerprints, 50000 registers
- Communication TCP/IP, RS485 and Wiegand 26
- Integrated controller (door sensor, button and relay)
- Groups and Anti Pass-back
- Allows up to 8 time & attendance modes
- Supports PoE power supply for device and lock
- Suitable for exterior IP65, anti-vandal IK10
- Included ANVIZ CrossChex management software
Features
- ANVIZ autonomous biometric reader
- Fingerprints, EM and MF and keyboard
- 3000 recordings / 50000 records
- TCP/IP, RS485, Wiegand 26
- Integrated controller | Time & Attendance
- Vandal-proof, for exterior use
Specs
| Brand | Anviz |
| Algorithm | BioNano V10 |
| Activation sensor | Infrared auto-activation |
| Scan area | 22 x 18 mm |
| Resolution | 500 DPI |
| Identification time | < 0.5 Sec. |
| Screen | 128x64 OLED |
| Capacity | Up to 3000 fingerprints or cards |
| Records | Up to 50000 |
| Time & Attendance Modes | Up to 8 |
| Identification modes | F, C, U+F, U+P, P+C, F+C |
| Proximity card | EM RFID (125KHz) and MF (13.56MHz) |
| PC communication | TCP/IP, RS485 |
| Inputs | Door sensor, opening button |
| Outputs | Wiegand 26, Output relay NO/NC |
| Protection | Suitable for outdoor IP65, IK10 anti-vandal |
| Power | DC 12 V / 1000 mA, PoE IEEE802.3af |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 41 (D) x 54 (W) x 170 (H) mm |
| Weight | 200 g |
Package content
- Biometric reader
- 2 plugs and 2 screws for mounting
- USB cables
- 2 RFID Cards
- CD with manual and software
- User instructions
Data sheet
- Weight
- 200 g
200 g
200 g
200 g
200 g
200 g
200 g - Power
- DC 12 V / 1000 mA, PoE IEEE802.3af
- Resolution
- 500 DPI
- Temp. operation
- -30º C ~ +60º C
- Protection
- Suitable for outdoor IP65, IK10 anti-vandal
- Dimensions
- 41 (D) x 54 (W) x 170 (H) mm
- Capacity
- Up to 3000 fingerprints or cards
- Algorithm
- BioNano V10
- Scan area
- 22 x 18 mm
- Identification time
- ≤ 0.5 Sec.
- Screen
- 128x64 OLED
- Records
- Up to 50000
- Identification modes
- F, C, U+F, U+P, P+C, F+C
- Proximity card
- EM RFID (125KHz) and MF (13.56MHz)
EM RFID (125KHz) and Mifare (13.56MHz) - PC communication
- TCP/IP, RS485
- Inputs
- Door sensor, opening button
- Outputs
- Wiegand 26, Output relay NO/NC
- Power supply
- DC 12 V / 1000 mA, PoE IEEE802.3af
- Time & Attendance Modes
- Up to 8
- Activation sensor
- Infrared auto-activation
- Dimensiones / Peso
- 44.5 (Al) x 270 (An) x 235 (Fo) mm / 0.9 Kg
- Peso
- 550 g
ANVIZ autonomous biometric reader - Fingerprints, EM and MF and keyboard - 3000 recordings / 50000 records - TCP/IP, RS485, Wiegand 26 - Integrated controller | Time & Attendance - Vandal-proof, for exterior use
