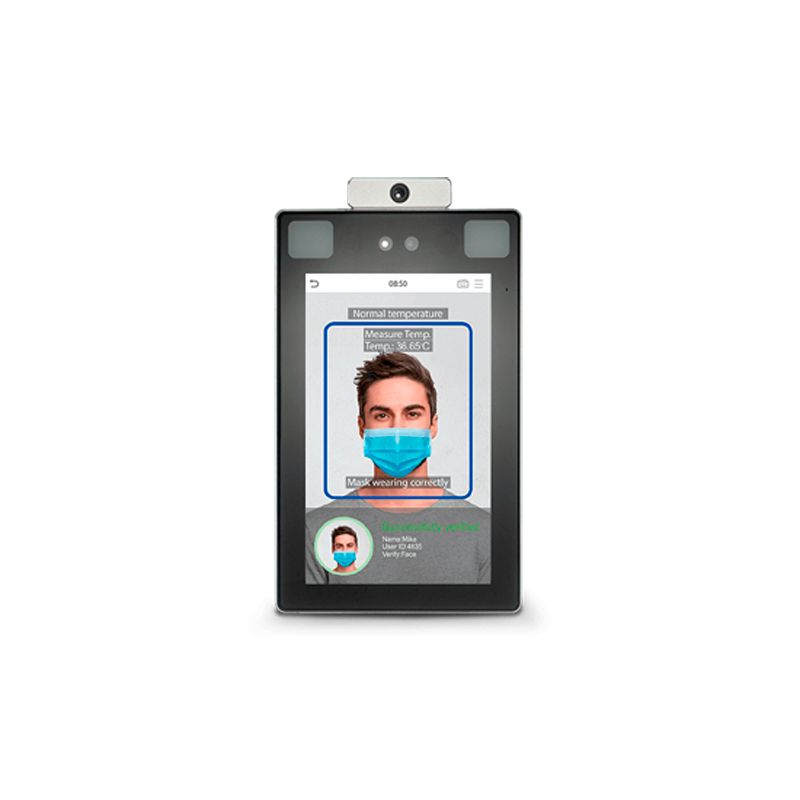

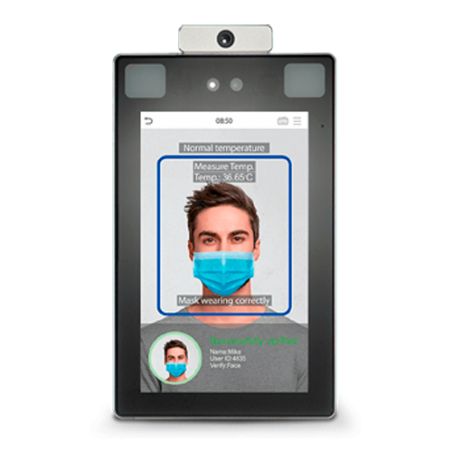

ZKTeco ProFaceXTD. ZKTeco multi-biometric terminal with facial recognition, palm fever detection for Access Control. 8"(400 lux) IPS touch screen. Up to 30,000 faces. Up to 5,000 palms. Up to 50,000 users. Up to 30,000 user photos. Registration of up to 1,000,000 events. TCP / IP, Wiegand In / Out, RS485, RS232. Relay output, Alarm output, Auxiliary input, Exit button, Door sensor. IP68, IK04. 12V DC. Proface x cara+manos+temperatura.

Characteristics

• Access Control Terminal
• Large capacity of facial templates: N facial template capacity 30,000
• Large capacity of palm templates: N palm insole capacity
• 5,000 palm templates
• Anti-Phishing Technology that avoids false positives, discards Black and white color photos, videos and 3D masks
• Smart energy-saving design that accurately evaluates the distance of up to 2.5 meters between the user and the device using a microwave detector before activating the recognition device
• 2MP CMOS sensor camera with WDR and StarLight function, allowing the device to recognize faces in extreme lighting conditions (0.5 lux ~ 50,000 lux)
• 8 "touch screen with 400 lux, offering better visibility in bright light
• Protection Standard IK04 for outdoor and IP68 protection dustproof and waterproof
• Operating temperature range (-30 ºC ~ 60 ºC)
• Body temperature detection: measurement deviation of ± 0.3 ºC; 30 ~ 50 cm measuring distance
• Detection of masks; facial verification available with masks

Specifications

• Display: 8" IPS touch screen (400 lux)
• 2 megapixel camera, WDR and low light
• Face Capacity: 30,000 (1: N)
• Palm Capacity: 5,000 (1: N)
• User Capacity: 50,000
• User Photo Capacity: 30,000
• Event Memory: 1,000,000
• Event Photo Capacity: 10,000
• Palm: FAR ≤0.01%; FRR ≤1%
• Facial algorithm: ZKLiveFace 5.8
• Compatibility: SRB, (Security Relay Box) / Wiegand / RS485 / RS232 slave reader with FP / Barcode / QR Code / ZKBioSecurity
• Hardware: Custom 900MHz dual-core CPU, 512MB RAM / 8GB Flash memory
• Adjustable LED brightness
• Standard Features: Access Levels, Groups, Vacations, DST, Fake Mode (Password), Anti-Passback, Log Query, Tamper Switch Alarm, Custom Wallpaper and Screen Saver
• Hi-Fi sound
• High sensitivity microphone
• Distance detection sensor
• Reset button
• Switch tamper
• Communication: TCP / IP, Wiegand In / Out, RS485, RS232
• Access Control Interface: Relay output, Alarm output, Auxiliary input, Exit button, Door sensor
• Power: 12V, <2A
• -30 ºC ~ + 60 ºC operating temperature
• Relative humidity: ≤93%
• Storage temperature of -40 ºC ~ + 65 ºC
• Protection degree IP68
• Vandal protection IK04
• Dimensions: 143.26 (W) x 227 (H) x 26.1 mm
• Weight: 853 g
