SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 102SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 20075 AND id_lang = 1 Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…
Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…
search
  • Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…

Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…

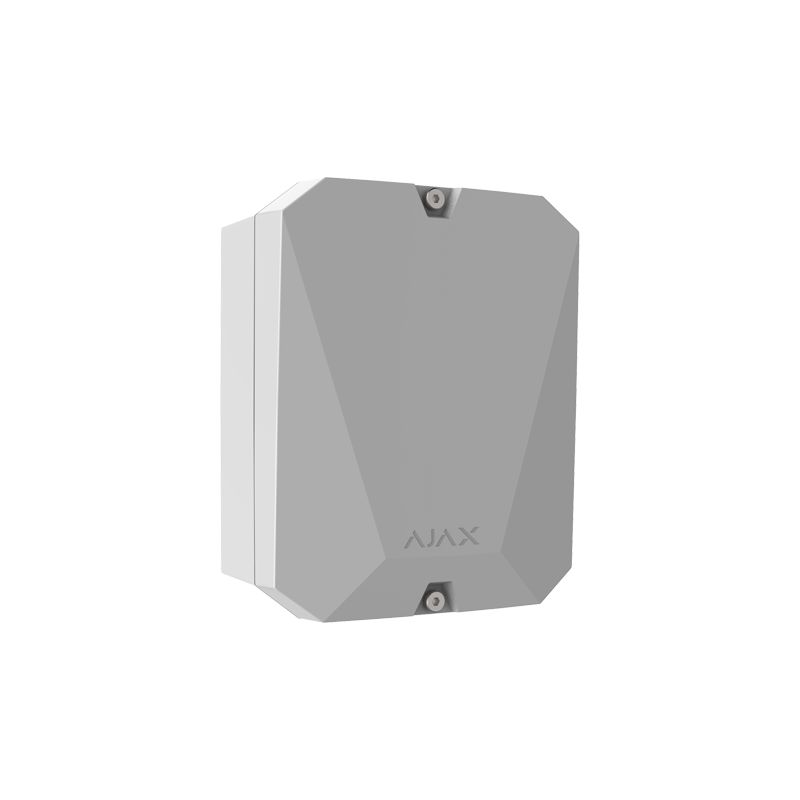

Multi-transmitter via radio - 868MHz Jeweller Wireless - Up to 18 Wired alarm and tamper inputs - Configurable alarm NC/NO or EOLR (NC or NO) - Double tamper anti-opening - Double power output 12V / 1A - Reach in open space 2000 m
€186.00
Tax included
Reference AJ-MULTITRANSMITTER-W
Brand Ajax
Quantity
Available in 24/48h

Free shipping
Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…

Ajax AJ-MULTITRANSMITTER-W - Multi-transmitter via radio, 868MHz Jeweller Wireless,…

€186.00

You might also like

  • Ajax
  • Radio transmitter with multiple inputs
  • 868MHz Jeweller Wireless
  • Bidirectional
  • Internal antenna range open space 2000 m
  • 18 wired alarm and anti-sabotage tamper inputs
  • Inhibition detection
  • Tamper-resistant opening
  • Double power output 12 V / 1 A
  • Power supply 220 VAC and backup battery 4 or 7 Ah (not included)
  • Compatibility with third party detectors with wired alarm output and with all Ajax Hubs

Features

  • Multi-transmitter via radio
  • 868MHz Jeweller Wireless
  • Up to 18 Wired alarm and tamper inputs
  • Configurable alarm NC/NO or EOLR (NC or NO)
  • Double tamper anti-opening
  • Double power output 12V / 1A
  • Reach in open space 2000 m

Specs

BrandAjax
Frequency868 MHz Jeweller
Transmission distance≤ 2000 m in open space
Anti-inhibition detectionAvailable
Wired inputsUp to 18 (alarm and tamper)
Alarm inputsNO/NC or end-of-line resistance EOLR (NO/NC) / Impulse or bidirectional
End-of-line resistor EOLFrom 1 kΩ to 7.5 kΩ
Tamper inputNC: Normally Closed
Tamper-resistant openingFront and back
Power supply outputTwo outputs 12 V / 1 A (in total) for wired sensors
CompatibilityCompatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
PowerAC 110~250 V, 50/60 Hz
Backup batteryBattery 12 V / 4 or 7 Ah (not included)
Temp. operation-10 ºC ~ 40 ºC
Dimensions of the backup battery150 (H) x 64 (W) x 94 (D) mm
Dimensions196 (H) x 238 (W) x 100 (D) mm

Package content

  • Multi-transmitter via radio
  • Instructions Manual
  • Mounting material

Data sheet

Power
AC 110~250 V, 50/60 Hz
Frequency
868 MHz Jeweller
Temp. operation
-10 ºC ~ 40 ºC
Transmission distance
≤ 2000 m in open space
Dimensions
196 (H) x 238 (W) x 100 (D) mm
Power supply output
Two outputs 12 V / 1 A (in total) for wired sensors
Backup battery
Battery 12 V / 4 or 7 Ah (not included)
Tamper-resistant opening
Front and back
Compatibility
Compatible with Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX
Anti-inhibition detection
Available
Tamper input
NC: Normally Closed
Wired inputs
Up to 18 (alarm and tamper)
Alarm inputs
NO/NC or end-of-line resistance EOLR (NO/NC) / Impulse or bidirectional
End-of-line resistor EOL
From 1 kΩ to 7.5 kΩ
Dimensions of the backup battery
150 (H) x 64 (W) x 94 (D) mm
