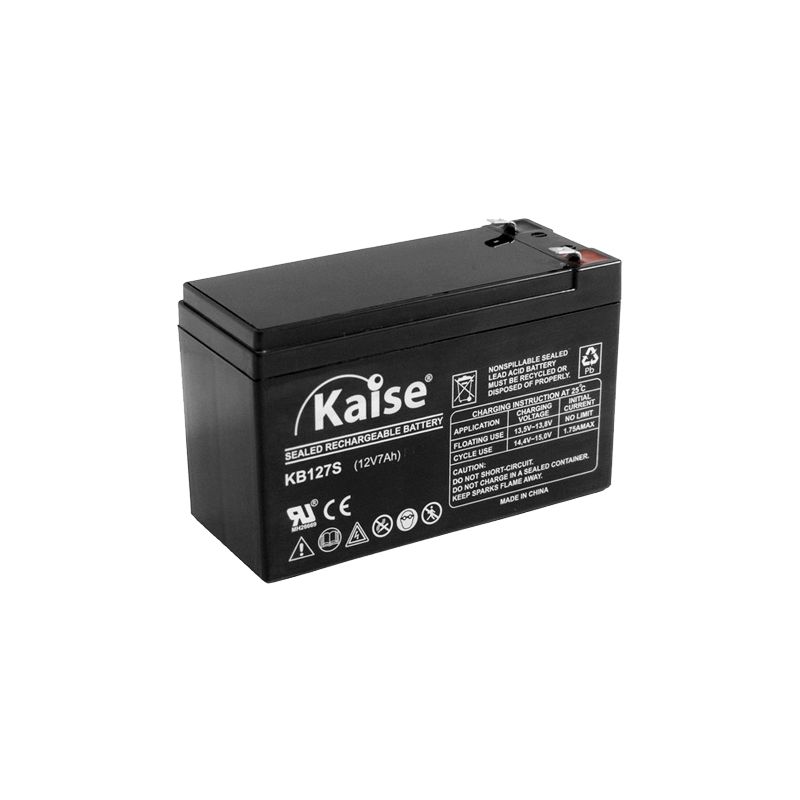

BAT1270 - Rechargeable battery, Lead-acid, Voltage 12 V,…
search
  • BAT1270 - Rechargeable battery, Lead-acid, Voltage 12 V,…

BAT1270 - Rechargeable battery, AGM lead technology, Voltage 12…

Rechargeable battery - AGM lead technology - Voltage 12 V - Capacity 7.0 AH - 151 x 65 x 94 mm / 1900 g - For backup or direct use
Reference BAT1270
Brand Branded
Quantity

Free shipping

You might also like

  • Maintenance-free battery
  • Use at stand-by 13.5~13.8 V
  • Cyclic use 14.4~14.7 V
  • Maximum initial intensity 1.4 A
  • Capacity 7000 mAh
  • Especially suitable for installations in distribution boxes

Features

  • Rechargeable battery
  • AGM lead technology
  • Voltage 12 V
  • Capacity 7.0 AH
  • 151 x 65 x 94 mm / 1900 g
  • For backup or direct use

Specs

Nominal voltage12 V
Standby use13.5 ~ 13.8 V
Cyclic use14.4 ~ 14.7 V
Initial intensity< 1.4 A
Discharge intensity105 A max. (5 s)
Internal resistance30 MΩ
Connection typeF1
Dimensions94 (H) x 65 (W) x 151 (D) mm
Weight1900 g

Package content

  • Backup battery

Data sheet

Weight
1900 g
2200 g
2200 g
Dimensions
94 (H) x 65 (W) x 151 (D) mm
Nominal voltage
12 V
Nominal capacity
7.0 / 6.5 / 5.6 AH (20 / 10 / 5 HR) at 25 ºC
Standby use
13.5 ~ 13.8 V
Cyclic use
14.4 ~ 14.7 V
Initial intensity
≤ 1.4 A
≤ 2.1 A
Self-Discharge Capacity
91 / 81 / 60 % remaining after 3 / 6 / 12 months
Internal resistance
26 MΩ
30 MΩ
Discharge intensity
105 A max. (5 s)
Connection type
F1
F2
