  • -35%

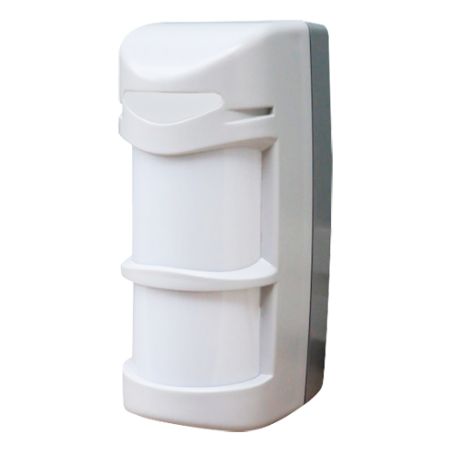

Lince LINCE-1926-RCDAM - PIR low consumption curtain detector, Compatible with…
search
  • Lince LINCE-1926-RCDAM - PIR low consumption curtain detector, Compatible with…

Lince LINCE-1926-RCDAM - PIR low consumption curtain detector, Compatible with…

PIR low consumption curtain detector - Compatible with transmitter via radio - Double PIR, microwaves and antimasking - Detection 10 m / 5º - Battery power 3~9 VDC - Outdoor use
€102.70 €158.00 Save 35%
Tax included
Reference LINCE-1926-RCDAM
Brand Lince
Quantity
Available in 24/48h

Free shipping
Lince LINCE-1926-RCDAM - PIR low consumption curtain detector, Compatible with…

Lince LINCE-1926-RCDAM - PIR low consumption curtain detector, Compatible with…

€102.70 €158.00 Save 35%
  • LINCE
  • Outdoor detector with low consumption
  • Curtain mode
  • Double technology: Microwaves and double PIR with antimasking
  • Detection: Range 10 m / 5º
  • Motion detection indicator
  • Tamper-resistant opening
  • Powered by batteries 3~9 VDC (low consumption) or 12VDC
  • Compatible with transmitter via radio
  • Outdoor use
  • Degree of protection IP45

Features

  • PIR low consumption curtain detector
  • Compatible with transmitter via radio
  • Double PIR, microwaves and antimasking
  • Detection 10 m / 5º
  • Battery power 3~9 VDC
  • Outdoor use

Specs

Brand LINCE
Technology Double technology: Microwaves (24 GHz) and double volumetric PIR
Detection range 10 m / 5º / Installation 1.2 m
Pet immunity Available
Masking Available
Sensitivity Adjustable. 4 levels (DIP switch)
Tamper-resistant opening Available
LEDs indication Alarm (PIR1, PIR2 and MW)
DIP switch configuration PIR sensitivity (4 levels), AND/OR function (PIR1, PIR2 and MW), Antimasking sensitivity, LEDs, battery saving mode (inhibition after 1 or 2 events during 30s or 180s) )
Wired outputs Alarm (NC/NO), Power, Antimasking (NC/NO) and Tamper (NC/NO)
Power 3~9 VDC via battery / Minimal power consumption (Standby): 10 μA)
10~15 VDC through power supply
Temp. operation -25ºC ~ +60ºC
Degree of protection IP45 Suitable for outdoor
Dimensions for transmitter 148 (H) x 41.5 (W) x 26.5 (D) mm
Dimensions 189(H) x 98(W) x 81(D)mm / 820g

Package content

  • Outdoor PIR Detector
  • Instructions Manual
  • Mounting material

Data sheet

Power
3~9 VDC via battery / Minimal power consumption (Standby): 10 μA) 10~15 VDC through power supply
3~9 VDC via battery / Minimal power consumption (Standby): 10 μA) 10~15 VDC through power supply
Technology
Double technology: Microwaves (24 GHz) and double volumetric PIR
Detection range
10 m / 5º / Installation 1.2 m
Pet immunity
Available
Masking
Available
Sensitivity
Adjustable. 4 levels (DIP switch)
Adjustable in 4 levels
LEDs indication
Alarm (PIR1, PIR2 and MW)
Alarm, tamper, signal
Temp. operation
-25ºC ~ +60ºC
Degree of protection
IP45 Suitable for outdoor
Dimensions
81 x 98 x 189 mm / 820g
189(H) x 98(W) x 81(D)mm / 820g
Power supply
3~9 V through battery / 12μA 10~15 VDC through power supply
3~9 V through battery / 12μA 10~15 VDC through power supply
10~15 VDC through power supply
Tamper-resistant opening
Available
Wired outputs
Alarm (NC/NO), Power, Antimasking (NC/NO) and Tamper (NC/NO)
Anti-blocking IR filters
≥ 1600 Lux
Transmitter compartment dimensions
148 x 41.5 x 26.5 mm
DIP switch configuration
PIR sensitivity (4 levels), AND/OR function (PIR1, PIR2 and MW), Antimasking sensitivity, LEDs, battery saving mode (inhibition after 1 or 2 events during 30s or 180s) )
Weight
550 g
