• -35%

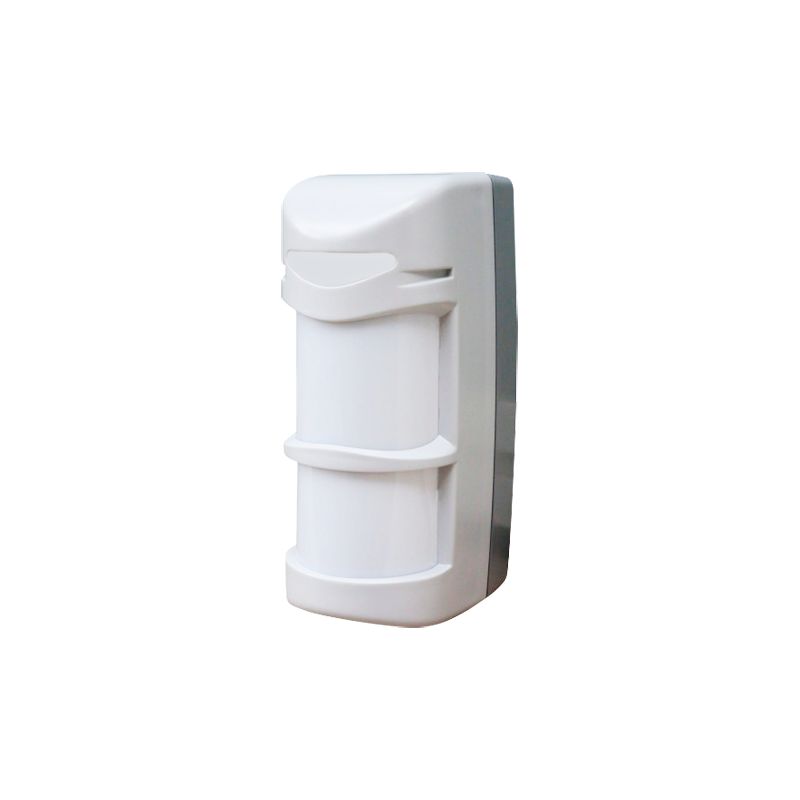

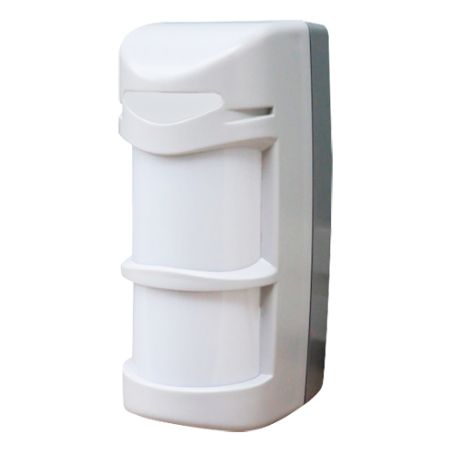

Lince LINCE-1926-RCDAM - Détecteur PIR Rideau faible consommation, Compatible…
search
  • Lince LINCE-1926-RCDAM - Détecteur PIR Rideau faible consommation, Compatible…

Lince LINCE-1926-RCDAM - Détecteur PIR Rideau faible consommation, Compatible…

Détecteur PIR Rideau faible consommation - Compatible avec transmetteur via radio - Double PIR, Micro ondes et Antimasking - Détection 10 m / 5º - Alimentation des batteries 3~9 VDC - Usage pour extérieur
102,70 € 158,00 € Économisez 35%
TTC
Référence LINCE-1926-RCDAM
Marque Lince
Quantité
Disponible dans 24/48h

Free shipping
Lince LINCE-1926-RCDAM - Détecteur PIR Rideau faible consommation, Compatible…

Lince LINCE-1926-RCDAM - Détecteur PIR Rideau faible consommation, Compatible…

102,70 € 158,00 € Économisez 35%
  • LINCE
  • Détecteur extérieur de faible consommation
  • Mode rideau
  • Double technologie: micro-ondes et double PIR avec Antimasking
  • Détection: Rang 10 m / 5º
  • Indicateur de détection de mouvement
  • Tamper anti-ouverture
  • Alimenté par batteries 3~9 VDC (faible consommation) ou 12VDC
  • Compatible avec transmetteur via radio
  • Usage pour extérieur
  • Degré de protection IP45

Caractéristiques

  • Détecteur PIR Rideau faible consommation
  • Compatible avec transmetteur via radio
  • Double PIR, Micro ondes et Antimasking
  • Détection 10 m / 5º
  • Alimentation des batteries 3~9 VDC
  • Usage pour extérieur

Spécifications

MarqueLINCE
TechnologieDouble technologie: micro-ondes (24 GHz) et double PIR volumétrique
Champs de détection10 m / 5º / Installation 1.2 m
Immunité aux animaux de compagnieDisponible
MasquageDisponible
SensibilitéAjustable. 4 niveaux (DIP switch)
Tamper anti-ouvertureDisponible
Indication LEDsAlarme (PIR1, PIR2 et MW)
Configuration DIP switchSensibilité PIR (4 niveaux), fonction AND/OR (PIR1, PIR2 et MW), sensibilité Antimasking, LED, mode d'économie de batterie (inhibition après 1 ou 2 événements pendant 30s ou 180s)
Sorties câbléesAlarme (NC/NO), Alimentation, Antimasking (NC/NO) et Tamper (NC/NO)
Alimentation3~9 VDC via batterie / Consommation minimale (veille): 10 μA)
10~15 VDC à travers une source d´alimentation
Temp. fonctionnement-25ºC ~ +60ºC
Degré de protectionIP45 Apte pour extérieurs
Dimensions pour transmetteur148 (H) x 41.5 (L) x 26.5 (Pr) mm
Dimensions189 (Ht) x 98 (lg) x 81 (Fo) mm / 820g

Contenu de l'emballage

  • Détecteur PIR pour extérieur
  • Manuel d'instructions
  • Matériel de montage

Fiche technique

Power
3~9 VDC via batterie / Consommation minimale (veille): 10 μA) 10~15 VDC à travers une source d´alimentation
3~9 VDC via batterie / Consommation minimale (veille): 10 μA) 10~15 VDC à travers une source d´alimentation
Technology
Double technologie: micro-ondes (24 GHz) et double PIR volumétrique
Detection range
10 m / 5º / Instalation 1.2 m
Pet immunity
Disponible
Masking
Disponible
Sensitivity
Ajustable. 4 niveaux (DIP switch)
Réglable 4 niveaux
LEDs indication
3~9 V à travers la batterie / 12μA
Alarme, tamper, signal
Temp. operation
-25ºC ~ +60ºC
Degree of protection
IP45 Apte pour extérieurs
Dimensions
81 x 98 x 189 mm / 820g
189 (Al) x 98 (An) x 81 (Fo) mm / 820g
Alimentation
3~9 V à travers la batterie / 12μA 10~15 VDC à travers une source d´alimentation
3~9 V à travers la batterie / 12μA 10~15 VDC à travers une source d´alimentation
10~15 VDC à travers une source d´alimentation
Tamper anti-ouverture
Disponible
Sorties câblées
Alarme (NC/NO), Alimentation, Antimasking (NC/NO) et Tamper (NC/NO)
Filtros antibloqueo IR
≥ 1600 Lux
Dimensions emplacement transmitter
148 x 41.5 x 26.5 mm
Configuración DIP switch
Sensibilité PIR (4 niveaux), fonction AND/OR (PIR1, PIR2 et MW), sensibilité Antimasking, LED, mode d\'économie de batterie (inhibition après 1 ou 2 événements pendant 30s ou 180s)
Poids
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
550 g
Grado de protección
IP44 Apto para exteriores
IP44 Apto para exteriores
IP44 Apto para exteriores
IP44 Apto para exteriores
IP44 Apto para exteriores
Dimensiones
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
189 (Al) x 81 (An) x 76 (Fo) mm / 470g
MTBF
1.5000.000 h
Accès distant
Navigateur Web, App Smartphone et Software PC Safire Control Center
Navigateur Web, App Smartphone et Software PC Safire Control Center
Batería de respaldo
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 15 horas
Duración hasta 16 horas
Duración hasta 16 horas
Duración hasta 16 horas
Duración hasta 16 horas
Peso
550 g
550 g
Dimensiones magnético
90 mm (Fo) x 20 (Ø) mm
Dimensiones (H x W x D mm)
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Estándar: 345 x 345 x 85 Media: 345 x 430 x 120 Grande: 475 x 450 x 120 Grande Deep: 475 x 450 x 190
Dimensiones para transmisor
148 (Al) x 41.5 (An) x 26.5 (Fo) mm
