Safire SF-B022A-5P4N1 - Cámara Turret Safire Gama PRO, Salida 4 en 1, 5 Mpx…
search
  • Safire SF-B022A-5P4N1 - Cámara Turret Safire Gama PRO, Salida 4 en 1, 5 Mpx…

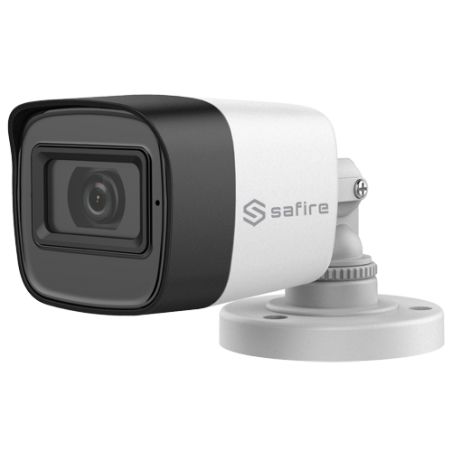

Safire SF-B022A-5P4N1 - Safire PRO Bullet Camera, Output 4in1, 5 MP High…

Safire PRO Bullet Camera - Output 4in1 - 5 MP High Performance CMOS - Lens 3.6 mm | Smart IR Matrix LEDs Range 30 m - Audio over coaxial cable - Weatherproof IP67
€32.50 €50.00 Save 35%
Tax included
Reference SF-B022A-5P4N1
Brand Safire
Quantity
Available in 24/48h

Free shipping
Safire SF-B022A-5P4N1 - Cámara Turret Safire Gama PRO, Salida 4 en 1, 5 Mpx…

Safire SF-B022A-5P4N1 - Safire PRO Bullet Camera, Output 4in1, 5 MP High…

€32.50 €50.00 Save 35%

You might also like

  • Safire
  • HDTVI, HDCVI, AHD and Analog Bullet Camera
  • PRO Range
  • High Performance CMOS
  • 5Mpx (2560x1944)
  • Output 4in1
  • 3.6 mm Lens
  • 0 Lux
  • Smart IR Matrix Matrix Range 30 m
  • Audio over coaxial
  • 2D DNR
  • IR Cut
  • Weatherproof IP67

Features

  • Safire PRO Bullet Camera
  • Output 4in1
  • 5 MP High Performance CMOS
  • Lens 3.6 mm | Smart IR Matrix LEDs Range 30 m
  • Audio over coaxial cable
  • Weatherproof IP67

Specs

Brand Safire
Range PRO
Image sensor High Performance CMOS
Maximum resolution 5 MP (2560x1944) to 20 fps
Resolution TVI: 5 MP (20 fps) / 4 MP (25~30 fps) / 1080p (25~30 fps)
CVI: 4 MP (25~30 fps)
AHD: 5 Mpx (20 fps) / 4 Mpx (25~30 fps)
CVBS: PAL/NTSC
Lens 3.6 mm
Viewing Angle (FOV) 80.1º (H), 63.7º (V), 105.9º (D)
Minimum illumination 0.01 Lux @ (F1.2, AGC ON)
Infrared lighting 0 Lux / Smart IR Matrix LEDs (range 30 m)
Day / Night Auto / Color / BW (black and white)
Video output 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Video output switching Via Switch
Basic functions OSD menu (remote)
Configurable OSD functions DWDR, 2D DNR, AWB, ATW, BLC, HLC, AGC, Mirror, Smart IR
Lens Adjustment 3 Axis
Alarm No
Audio Built-in microphone (audio via coaxial cable)
Power DC 12 V / 324 mA, 3.7 W max
Degree of protection Weatherproof IP67
Temp. operation -40º C ~ +60º C
Material Metallic
Dimensions 158.6 (Fo) x 61 (W) x 58 (H) x 70 (Ø) mm
Base diameter 55 (Ø) mm / 3 screws
Weight 292 g

Package content

  • Bullet Camera 4N1 Safire
  • Mounting material
  • User instructions

Data sheet

Weight
292 g
325 g
Power
DC 12 V / 324 mA, 3.7 W max
Grado de protección
Impermeable IP67
Resolution
5Mpx a 20 fps,4Mpx a 30 fps, 1080P a 25 fps
5Mpx to 20 fps,4Mpx to ≤30 fps, 1080P to 25 fps
Temp. operation
-40º C ~ +60º C
Degree of protection
Weatherproof IP67
Dimensions
158.6 (D) x 61 (W) x 58 (H) mm
158.6 (Fo) x 61 (An) x 58 (Al) mm
Power supply
DC 12 V / 324 mA, 3.7 W máx
Material
Metallic
Range
PRO
Video output
1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS
Audio
Built-in microphone (Audio via coaxial cable)
Micrófono integrado (Audio a través de cable coaxial)
Image sensor
High Performance CMOS
Minimum illumination
0.01 Lux @(F1.2, AGC ON)
Basic functions
OSD menu (remote)
Configurable OSD functions
3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR
Lens
2.8 mm
3.6 mm
Maximum resolution
5 Mpx (2560x1944)
Infrared lighting
0 Lux / SMART IR (30 m)
Day / Night
Auto / Colour / BW (Black and White)
Base diameter
55 (Ø) mm / 3 screws
55 (Ø) mm / 3 tornillos
Lente
2.8 mm
Lens Adjustment
3 Axis
Video output switching
Via Switch
Posicionamiento Lente
3 Axis
