Dahua Professional Blackbody Kit TPC-BF5421P-TB13F8-HTM, JQ-D70Z, VCT-999, RAW021-00, temperature measurement
Kit consisting of: JQ-D70Z, "Blackbody", TPC-BF5421P-TB13F8-HTM camera, VCT-999 tripod, RAW021-00 adapter and. Certified instant body temperature measurement system with a measurement accuracy ± 0.3°C.
Dahua Professional Blackbody Kit TPC-BF5421P-TB13F8-HTM, JQ-D70Z, VCT-999, RAW021-00, temperature measurement
You might also like
Professional product, returns are not accepted.
Certified Instant Body Temperature Measurement System Kit with a measurement accuracy ± 0.3°C.
Through the camera's web interface, it is possible to view the detected temperature in real time and act accordingly, starting, for example, two-way communication to the camera's built-in microphone and speaker to separate the subject from the crowd.
- Non-Contact Measurement: Measures the temperature excluding other heat sources, with a distance of up to 3 meters.
- High Efficiency: The built-in AI algorithm allows the measurement of multiple people in real time.
- Accurate Alert: Visual and intelligent alert on abnormal temperatures (user configured).
- Accurate temperature measurement, effective and safe.
- Non-contact detection, fluid pass.
- Multi-person measurement, efficient access.
- Visual abnormal temperature alert for backward tracking.
- Maskless detection for smart control.

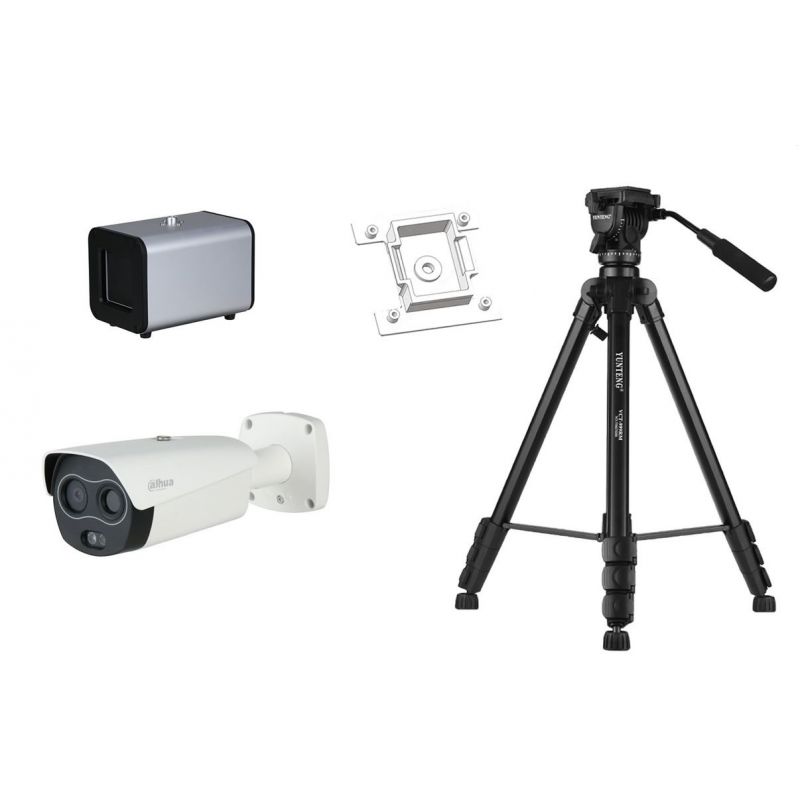

Kit Composed of:
JQ-D70Z
Better known as "Blackbody", it is a certified instrument that, inserted into the shooting range, provides a constant and accurate temperature reference that the camera uses to self-calibrate and increase measurement accuracy. 220V CA.
For indoor use, it has a fan at the rear and is not insulated. It can be used outdoors as long as they are in a controlled situation and not leaving it fixed so that it does not suffer humidity or inclement weather.
- 35°C, 37°C, 40º C working temperature
- Accuracy of ± 0.1 ° C
- Stability of ± 0.1 ~ 0.2 ° C / 30 minutes
- Emissivity of 0.97 ± 0.02 ° C
TPC-BF5421P-TB13F8-HTM
Hybrid camera with temperature measurement that simultaneously provides a normal image and a thermal image of the scene taken. An artificial intelligence algorithm recognizes human figures and allows measuring the temperature of the face, excluding any other heat source that may constitute a false alarm, at the optimal distance of 3 meters.
- Vox Uncooled Focal Plane Detector
- Resolution : 400 * 300
- Spectral range : 8μm ~ 14μm
- Thermal lens : 13mm
- NETD : <40 mK
- Visible : 1 / 2.8 "CMOS , 1080P
- Visible lens : 4mm / 8mm (optional)
- Alarm : White light warning light
- built-in horn
- Temperature measurement range : 30 ℃ ~
- 45 ℃ ,
- Temperature measurement precision :
- ± 0.3 ℃ , with blackbody
VCT-999
Adjustable 4-Section Tripod with Fluid Rocker Head for Blackbody Camera DAHUA-2182 (JQ-D70Z).
RAW021-00
Adapter to attach the Blackbody DAHUA-2182 camera (JQ-D70Z) to the DAHUA-2183 tripod (VCT-999).
